Nexus R3 Ford Barra Terminated Harness - HT-186405

$1,349.00
$1,395.00 $1,349.00
Sale
Tax included. Shipping calculated at checkout.
By: HALTECH
SKU:
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
  • 100% GENUINE GUARANTEED
  • FAST SHIPPING
  • FULL WARRANTY
  • TECHNICAL SUPPORT
$1,349.00
$1,395.00 $1,349.00

Product description

Terminated Engine Harness for Nexus R3 VCU - suits the following Ford Barra engines:
  • BA Series - Barra 240T (XR6T)
  • BF Series - Barra 190 (NA Falcons + SY Territory), Barra 245T (XR6T)
  • FG Series - Barra 270T (XR6T)

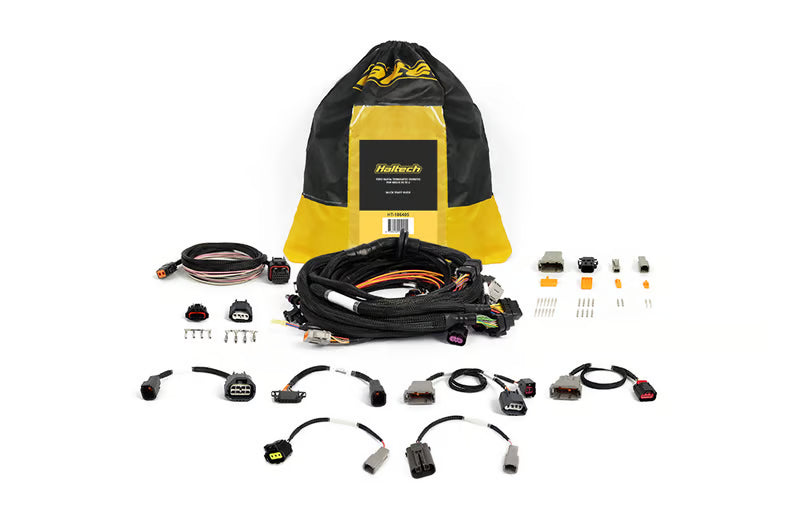

Harness includes

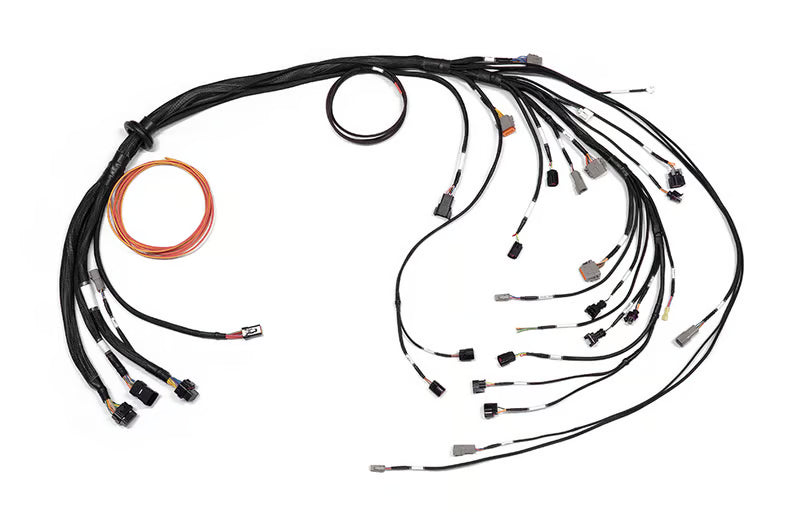

  • Main terminated harness
  • Ford Falcon BA/BF APP adaptor harness
  • Ford Falcon FG APP adaptor harness
  • Ford Barra BA/BF throttle adaptor harness
  • Ford Barra FG throttle adaptor harness
  • Nexus 2 pin BA alternator adaptor
  • Nexus 3 Pin BF/FG alternator adaptor
  • Cabin adaptor harness
  • Opposing connectors and pins for boost control, TMAP, Dual intake runner solenoid, spare inputs and outputs, and transmission breakout
Note: Does not include Ignition harness, Ignition module, ignition module harness and Injector harness, these are all sold separately. If converting ignition system to R35 Coils only HT-120205 Kit is required.
Nexus Terminated Harness Features supports OEM functionality
  • Crank sensor
  • Intake and Exhaust Cam sensors
  • Intake and Exhaust VCT solenoid control
  • BA / BF / FG electronic throttle and pedal (DBW)
  • Dual intake runner system (aka Broadband throttle system)
  • BA / BF / FG ignition coils (sub-harness options)
  • BA / BF / FG TMAP sensors (4 pin)
  • Factory AC clutch and AC pressure switch
  • Alternator control (2 and 3 pin)
  • Knock sensors
Aftermarket Functionality supported
(Additional sensors / parts may be required to be purchased)
  • EV1, EV6(USCAR), or Sumitomo (Denso) injector connectors
  • R35 COP ignition coils (requires ignition bracket and aftermarket coil stalks)
  • Wideband lambda sensor - Bosch LSU 4.9
  • Flex fuel sensor
  • MAP sensor (ECU onboard 4 bar MAP)
  • Oil and fuel pressure sensors (Delphi 3-pin)
  • Thermofan control
  • Fuel pump control
  • Haltech boost solenoid
  • Haltech CAN devices (eg dash, keypad, IO16)
  • Spare IOs for additional functionality
