MTS CAN Bus Extension Cable – 1.2m Deutsch DTM4

MTS CAN Bus Extension Cable – 1.2m Deutsch DTM4

The MTS CAN Bus Extension Cable provides a high-quality, motorsport-grade solution for extending CAN bus connections between ECUs, CAN hubs, digital dashes, keypads and other compatible CAN devices.

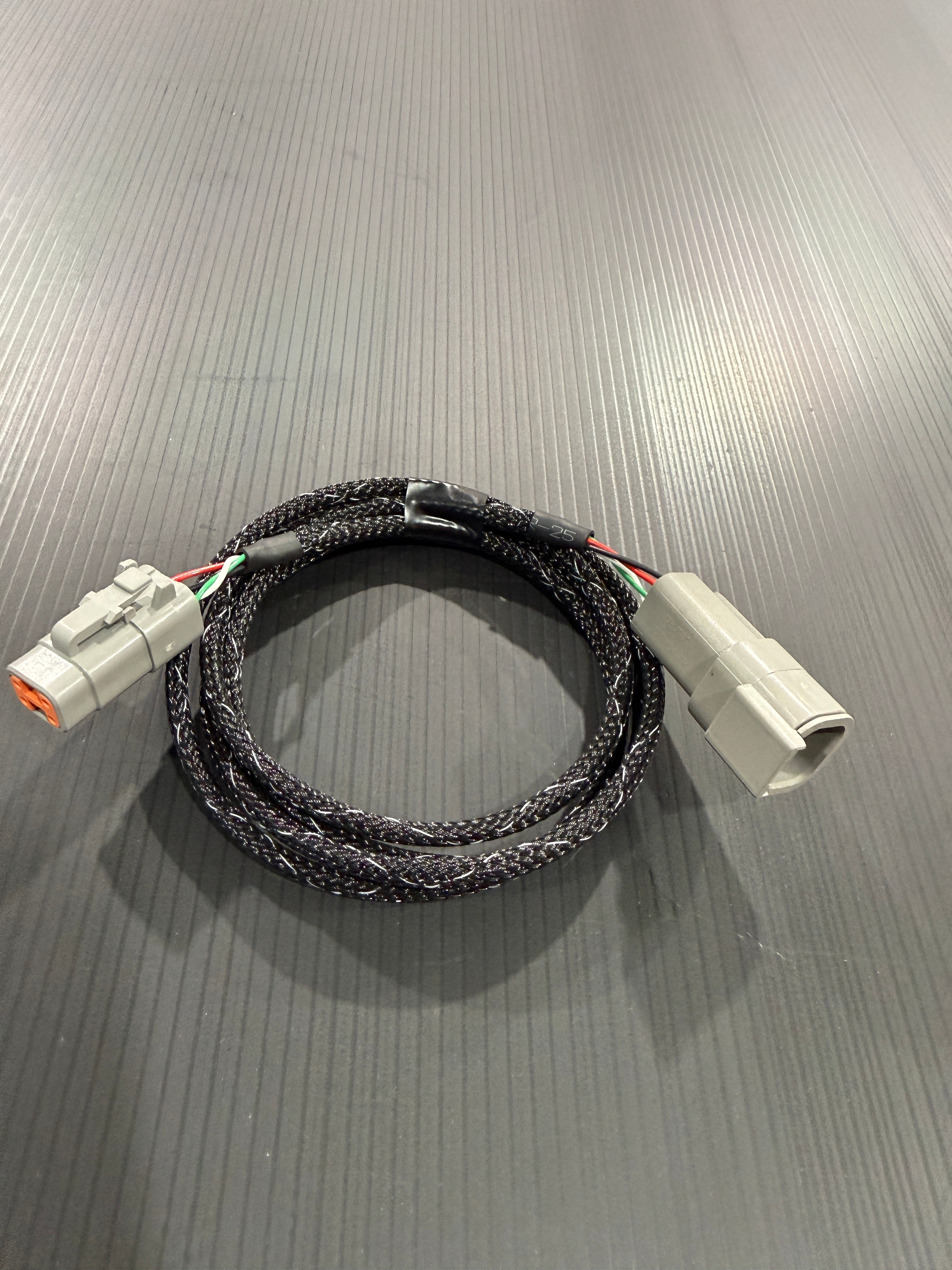

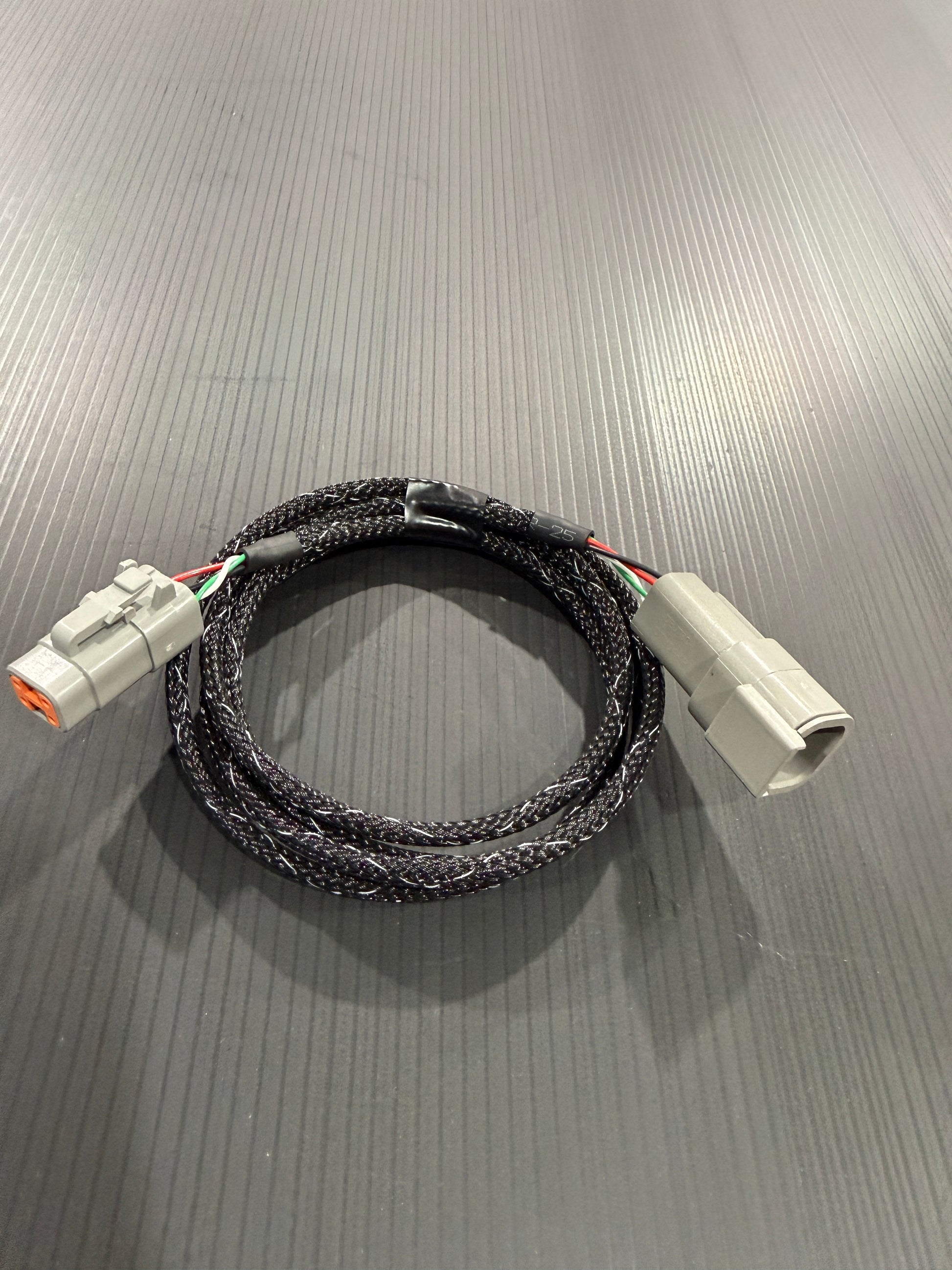

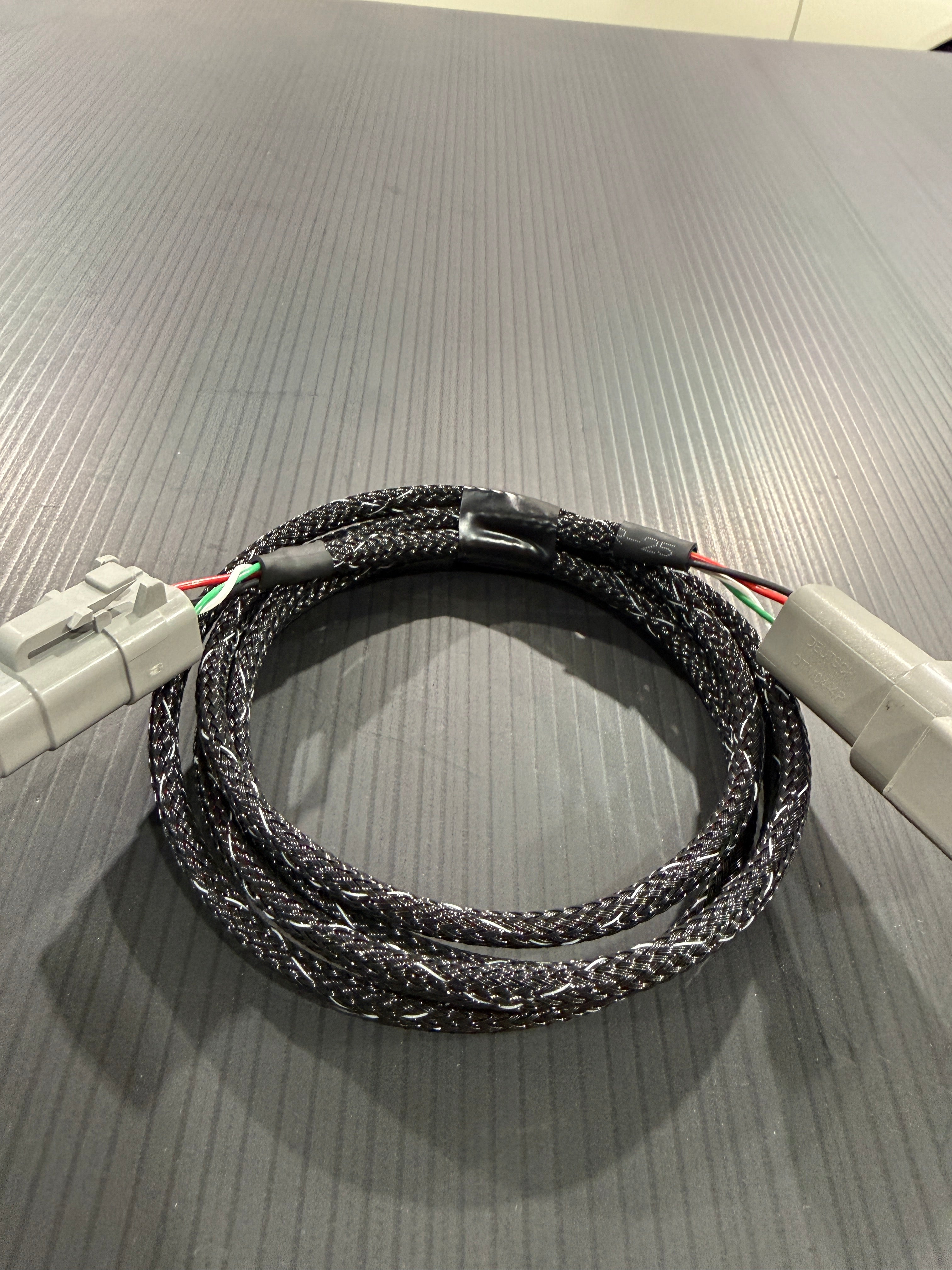

Featuring a 4-pin female Deutsch DTM connector at one end and a 4-pin male Deutsch DTM connector at the other, the extension cable can be installed inline with an existing CAN connection without cutting or modifying the vehicle's wiring.

Ideal For

• Extending a CAN connection from an ECU or CAN bus cable
• Connecting an MTS CAN Bus Splitter to a remotely mounted CAN device
• Link CAN Keypads
• Link CAN Gauges and accessories
• Digital dashes
• CAN hubs and splitters
• Haltech and other compatible CAN devices
• Custom motorsport CAN networks

Specifications

• Length: 1.2 metres
• Connector 1: 4-pin Female Deutsch DTM
• Connector 2: 4-pin Male Deutsch DTM
• Wiring: Tefzel motorsport-grade wire
• Sheathing: Motorsport-grade protective sheathing
• Configuration: Straight-through CAN extension cable
• Professionally assembled and terminated

The male-to-female configuration allows the extension cable to be used in either direction, making it suitable for a wide range of ECU, dash, keypad and CAN accessory installations.

Designed and manufactured by Motorsport Tuning Solutions on the Gold Coast, Australia.
