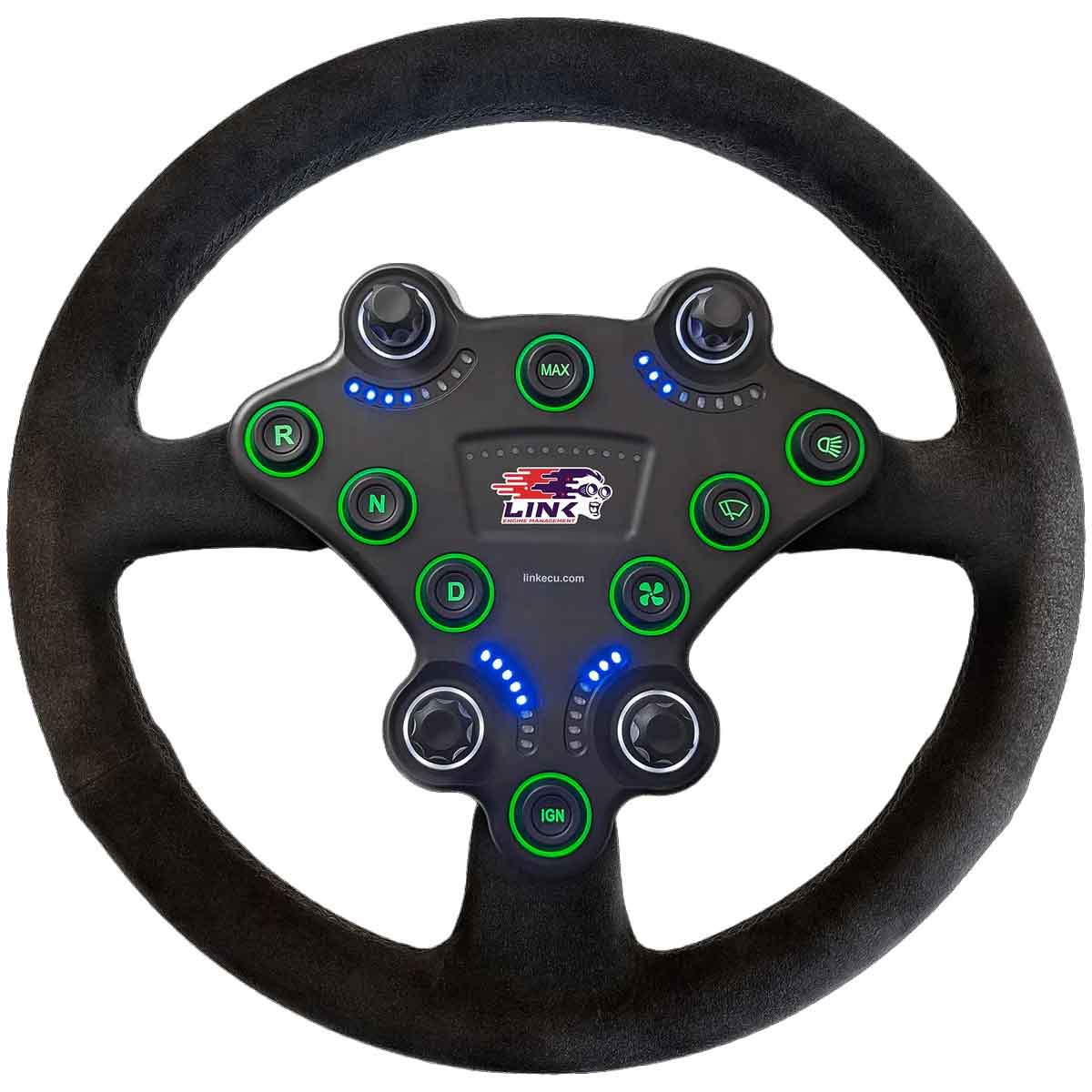

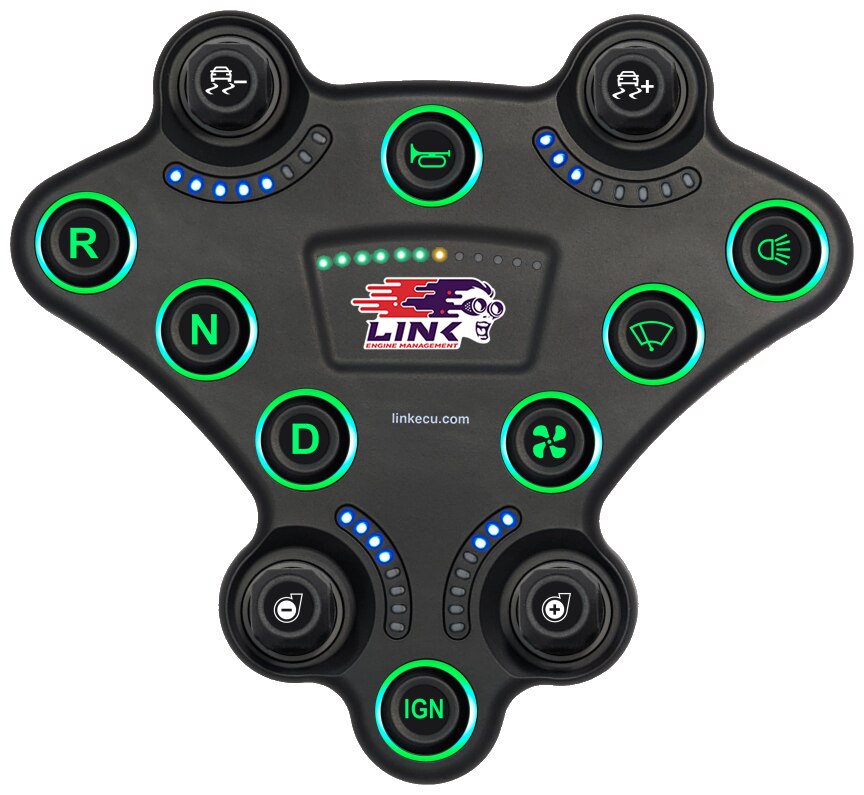

LINK RACEPAD - Steering Wheel CAN Keypad (8 Buttons + 4 Rotary Knobs) - SKU 101-0332

RacePad is the ultimate CAN-bus steering wheel button panel designed to elevate your racing experience to the next level.

With 4 rotary knobs and 8 easy-to-reach buttons, RacePad is the ideal addition to any race car, enabling both professional drivers and amateurs to fully customize their driving style thanks to individualized button icons and LED colour selection.

Suitable applications:

• Compatible with all G4X and G5 ECUs

Important notes:

Racepad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included loose in box.

Specifications

Switch Life:

• 3 million operations

Default Baud Rate:

• 1000kbit/s

Chemical Resistance:

• Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid

UV Protection:

• UVB 400 hours

Product Dimensions:

• 20x19x7cm

Product Weight:

• 425g

Thickness:

• 36.2mm excluding knob height

Electrical:

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

What's in the Box:

• Blink Racepad 8 button + DTM4
• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Deutsch 4 way Connector Kit

Connector:

• TE Connectivity Deutsch DTM 4-pin and Molex 6-pin 101-0156
• Black = Ground
• Red = Power
• White = CAN High
• Blue = CAN Low
