LINK G5 Voodoo Pro V2 Wire-In Bundle - ECU + Looms + Dual Wideband + 4 Bar MAP + IAT - SKU 153-9300B

Link's flagship G5 Voodoo Pro, with everything you need to wire it in.
The G5 Voodoo Pro V2 Wire-In Bundle pairs Link's most capable ECU with the looms, connectors and core sensors for a professional-level build, so you're not chasing parts separately.

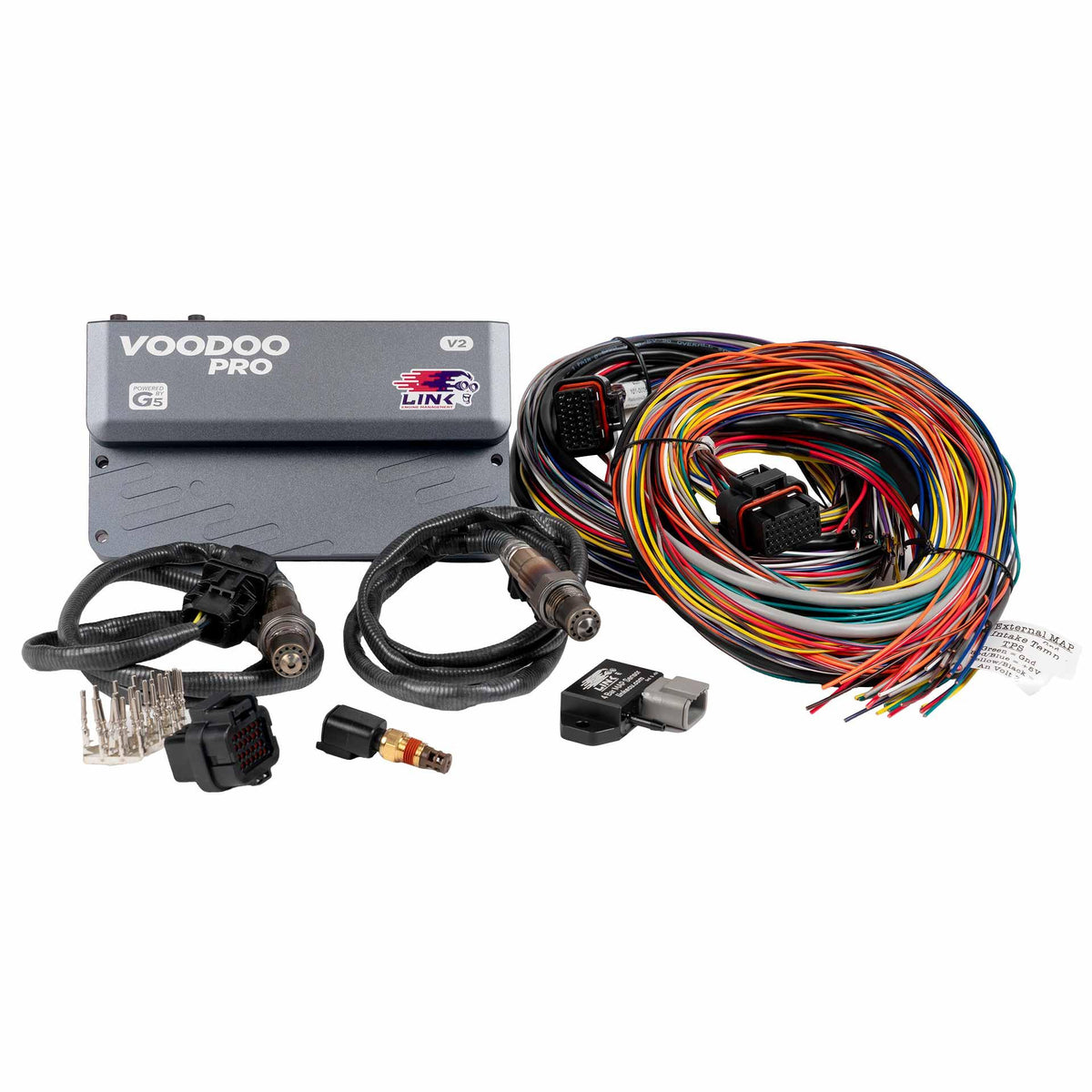

What's in the bundle:

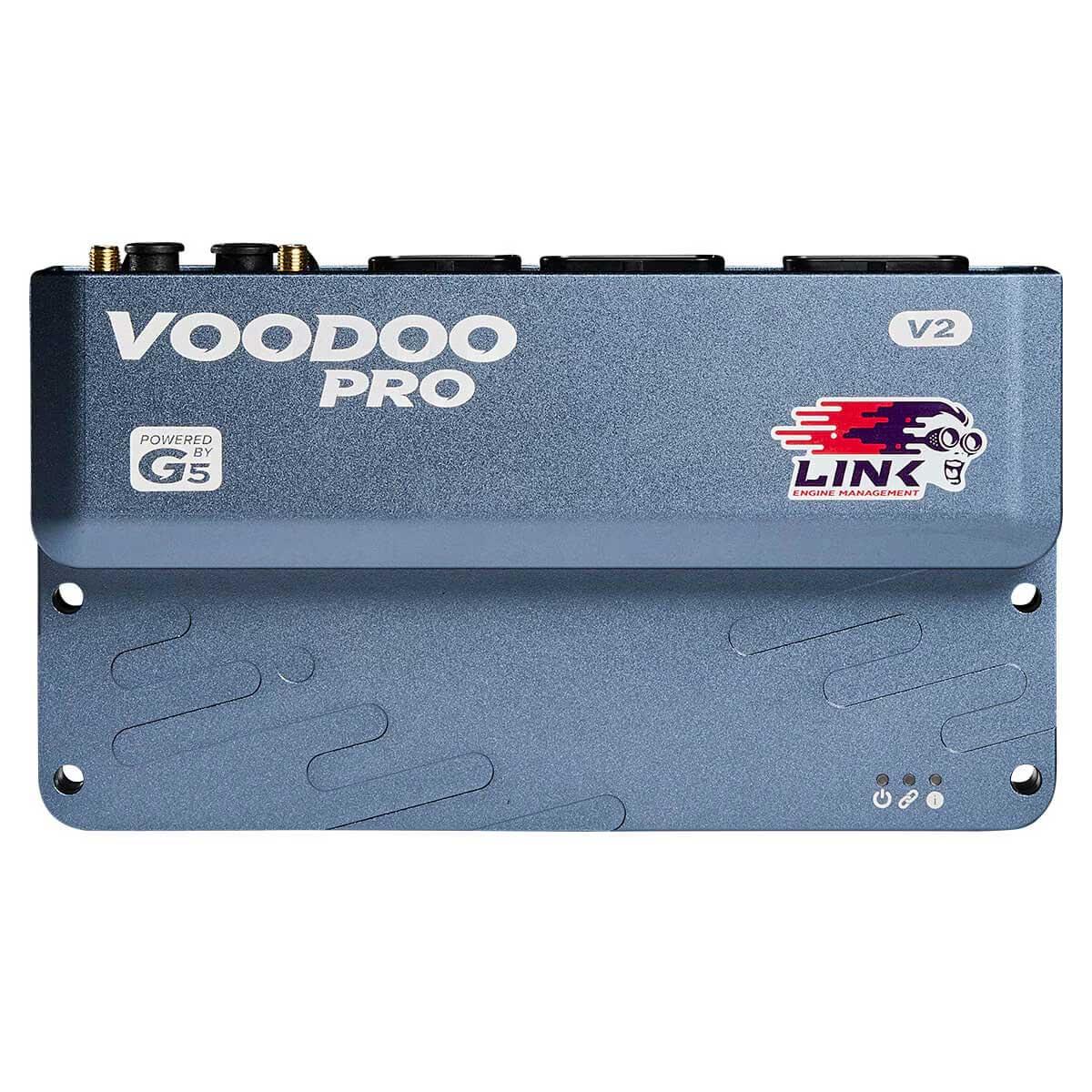

• G5 Voodoo Pro Wire-In ECU (latest version)

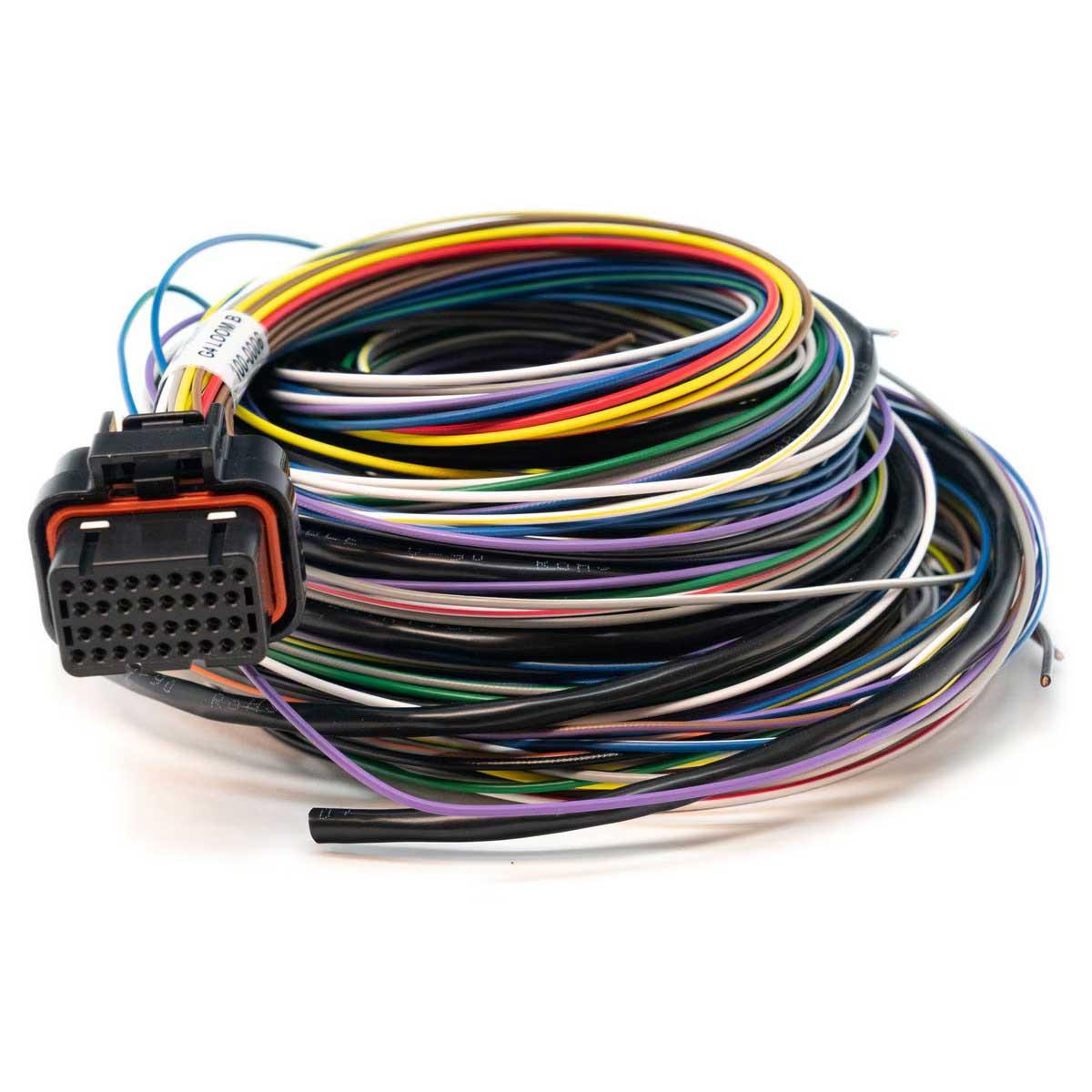

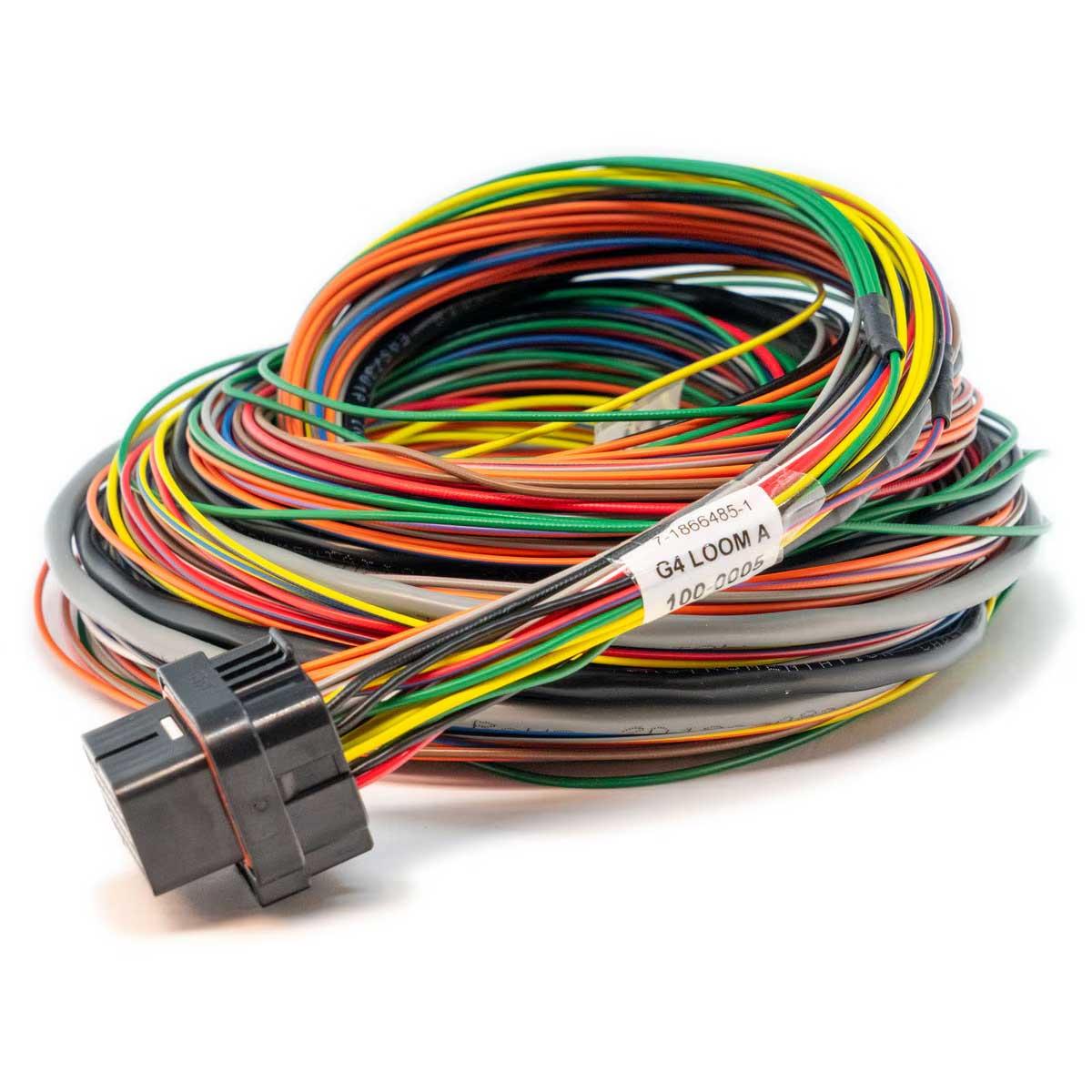

• 2.5 m A and B looms

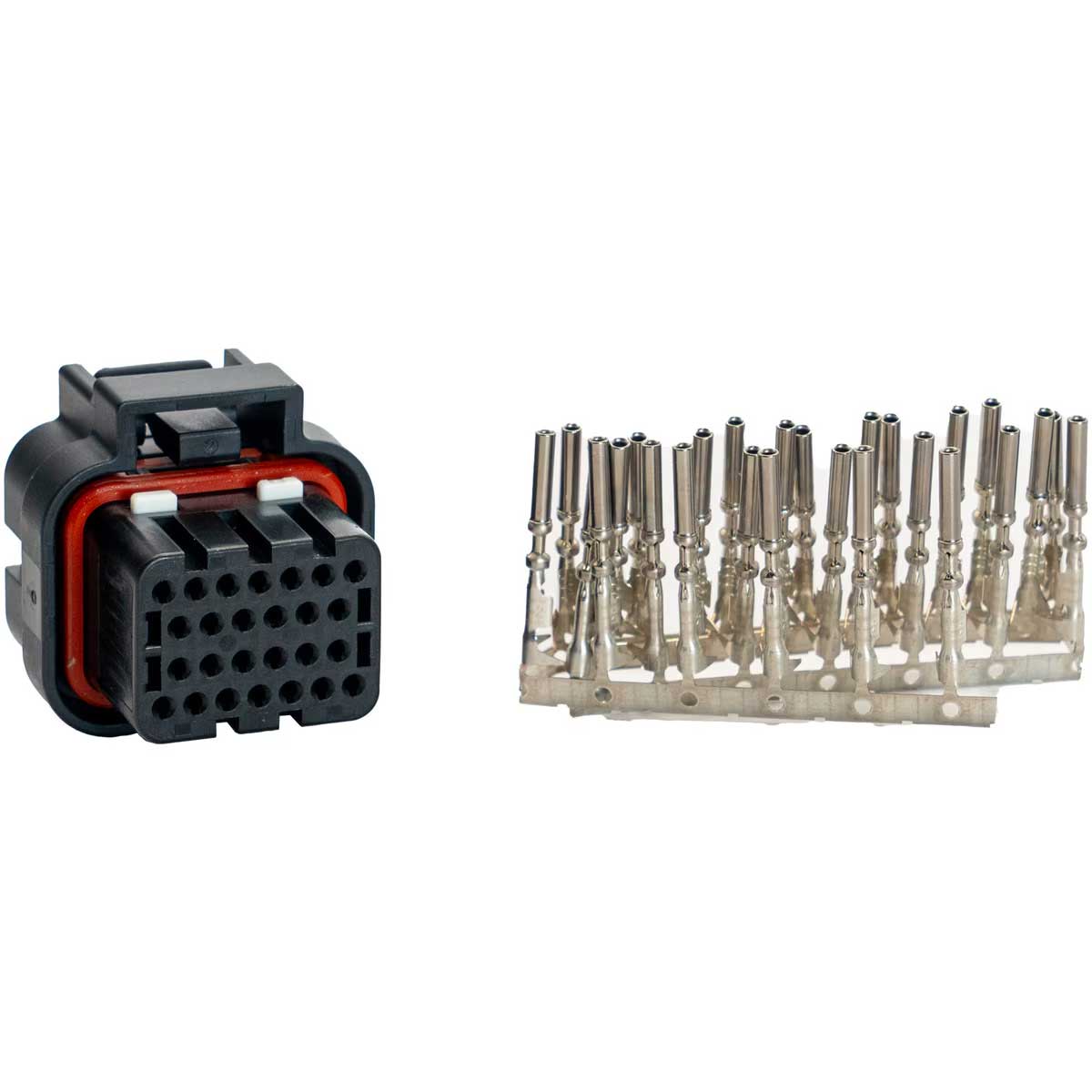

• E connector plug and pin kit

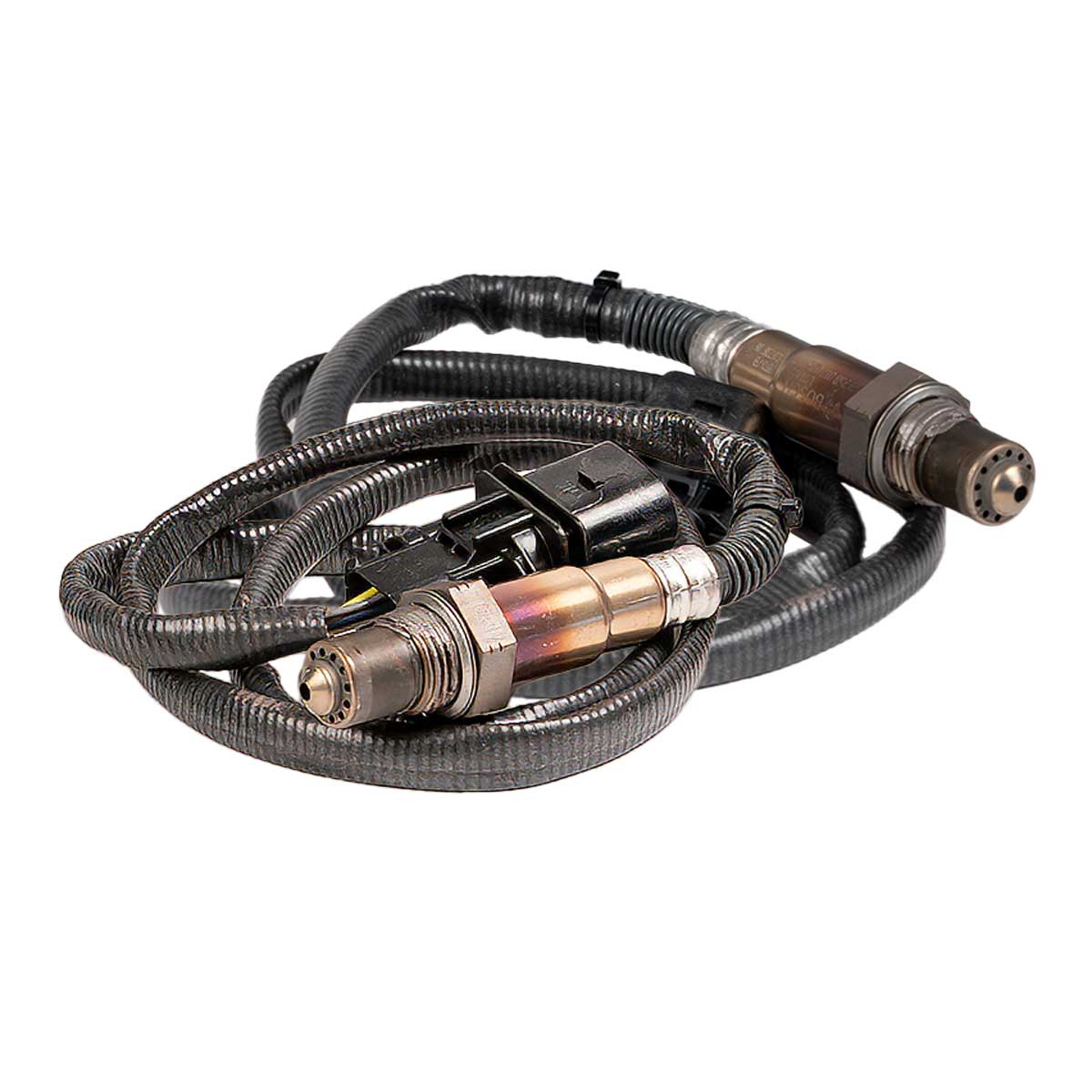

• 2 x Bosch LSU 4.9 wideband Lambda sensors, with plug and pin kits

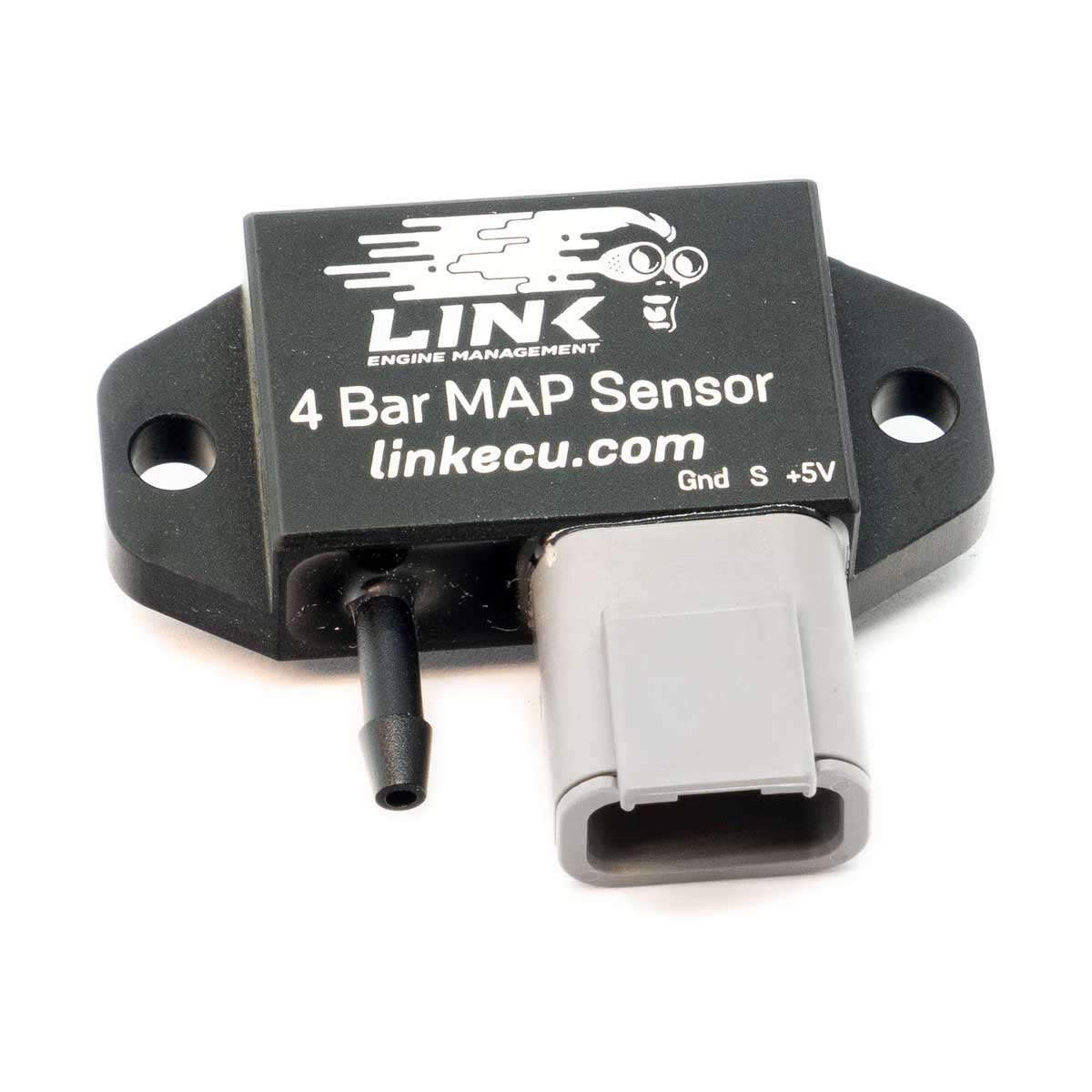

• Link 4 bar MAP sensor, with Deutsch DTM connector kit

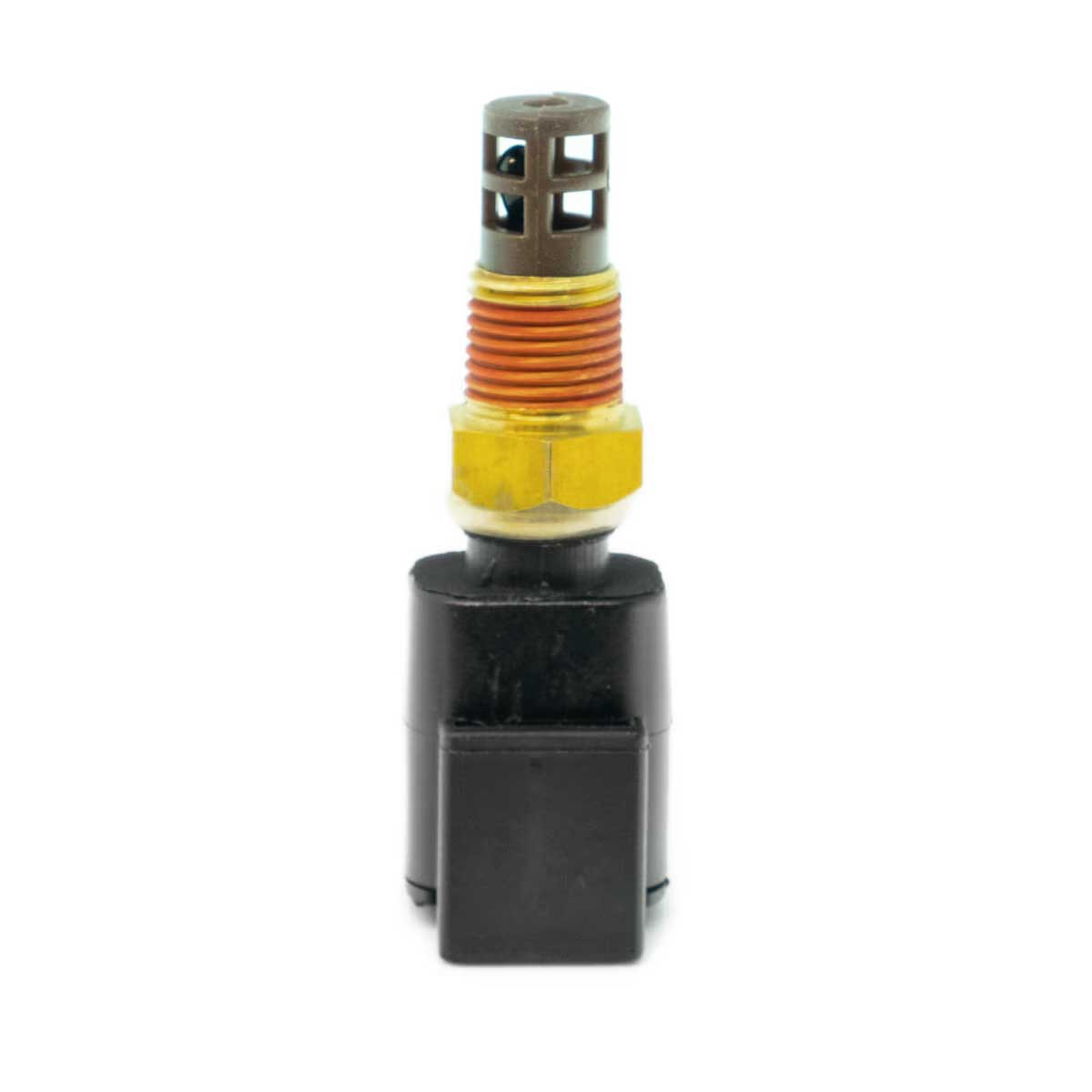

• Intake air temperature (IAT) sensor, 1/8" NPT thread, with Deutsch DTM connector kit

With dual onboard Digital Wideband Lambda Control, both LSU 4.9 sensors wire straight into the ECU for fast, accurate live Lambda from each bank with no external controllers. The 4 bar MAP sensor suits turbo or supercharged engines running up to 3.0 bar (44 psi) of boost.

Suitable applications:
Up to 12 cylinders sequential port or direct injection with direct spark, or 8 cylinders with direct/port staged injection and direct spark.

G5 Voodoo Pro Features:

• 12 injection, 8 ignition and 4 multipurpose (inj, ign, aux) drives (24 total)
• Port plus direct injection control (DI via an external driver box)
• More ADIO pins and analogue inputs than the Neo range
• GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning
• 1 GB onboard data logging
• Automatic transmission control
• Dual onboard Digital Wideband Lambda control
• Dual H-bridges for E-Throttle and low power E-Wastegate control

Ideal for high-performance street and motorsport builds that need maximum I/O and dual Lambda control.

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned? Get in touch for a quote.
