LINK G5 Voodoo Neo4 Wire-In Bundle - ECU + Looms + Wideband + 4 Bar MAP + IAT - SKU 154-9300B

Everything you need to get a G5 Voodoo Neo 4 wired in, in one box.
The G5 Voodoo Neo 4 Wire-In Bundle pairs Link's next-generation Neo 4 ECU with the looms and core sensors every build needs, so you're not chasing parts separately.

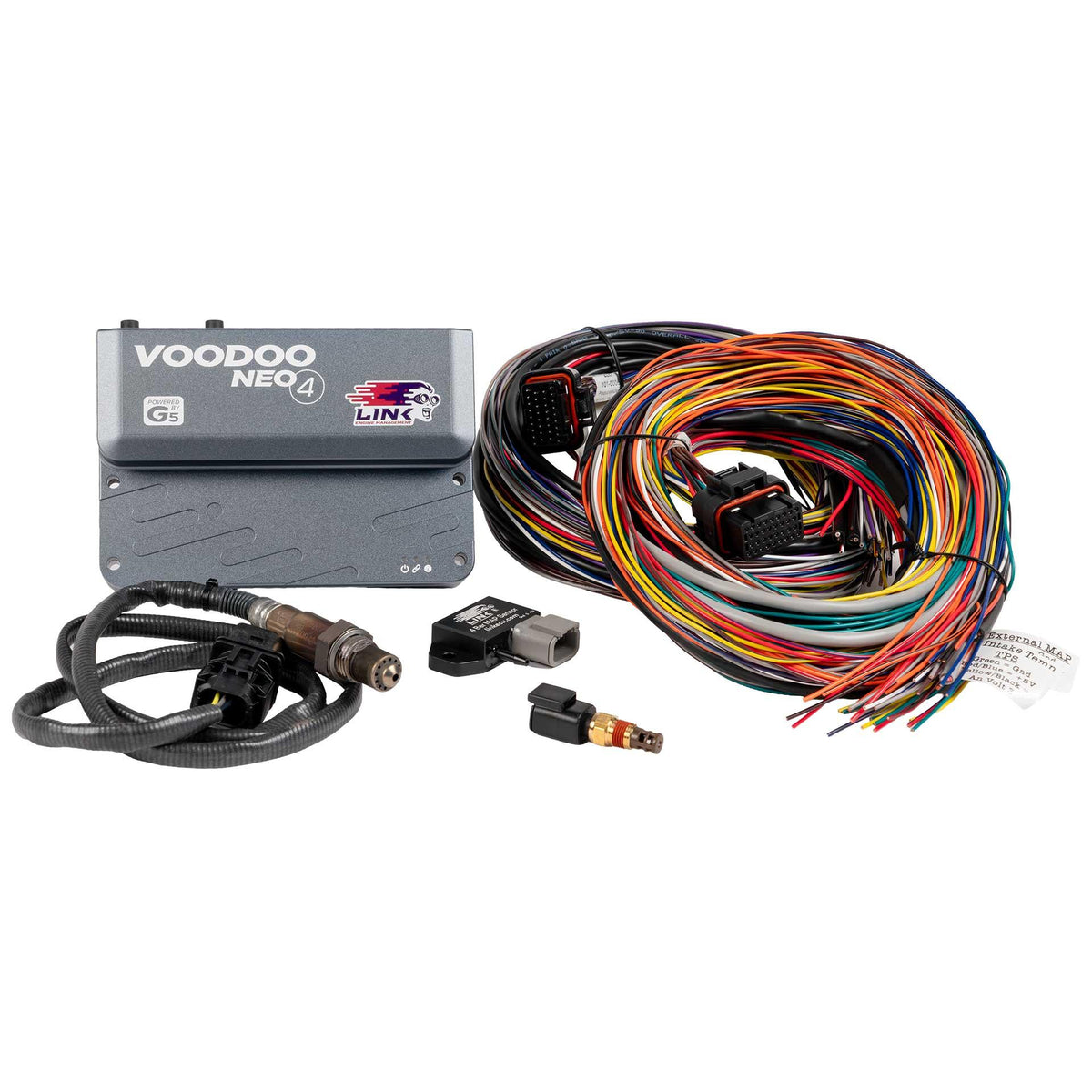

What's in the bundle:

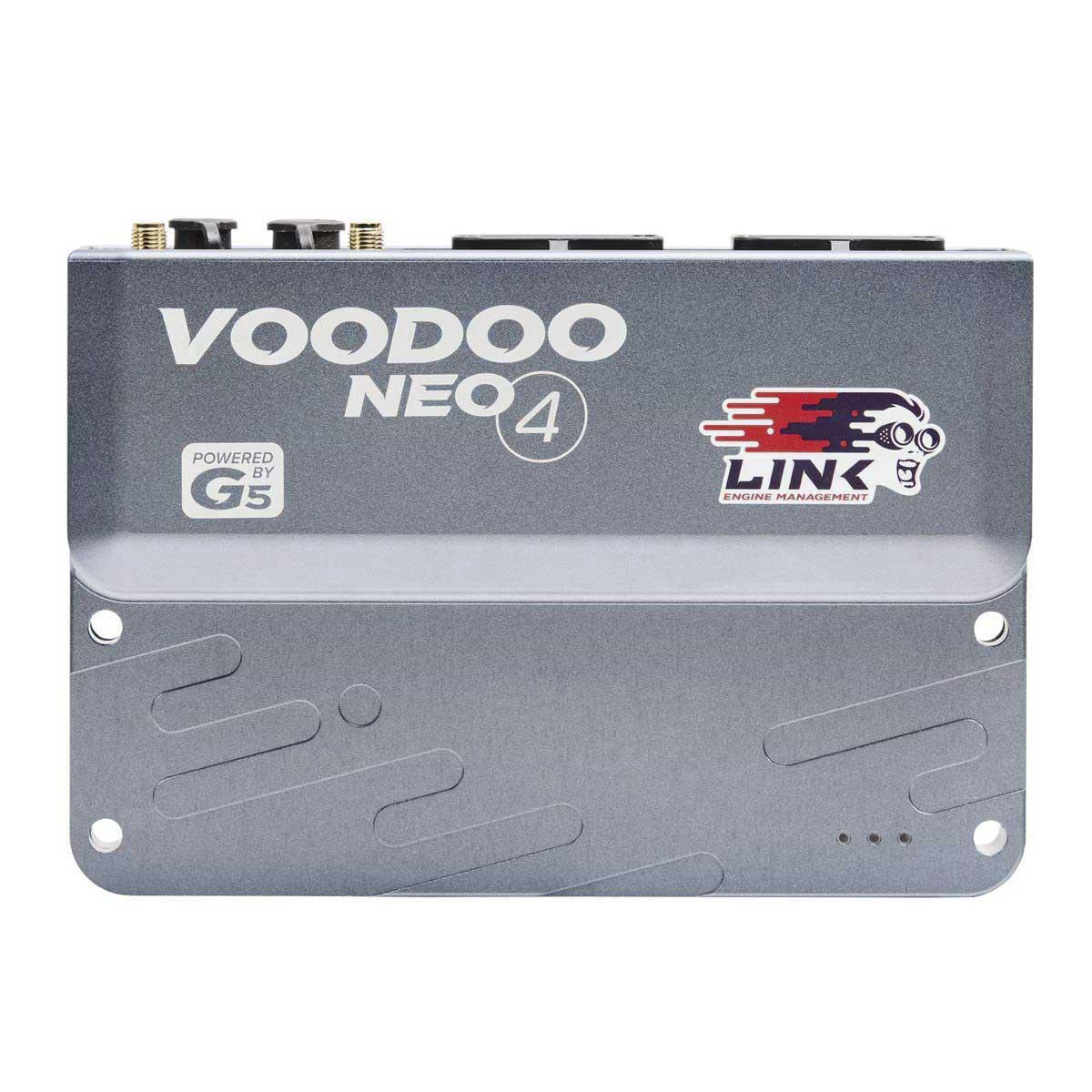

• G5 Voodoo Neo 4 Wire-In ECU

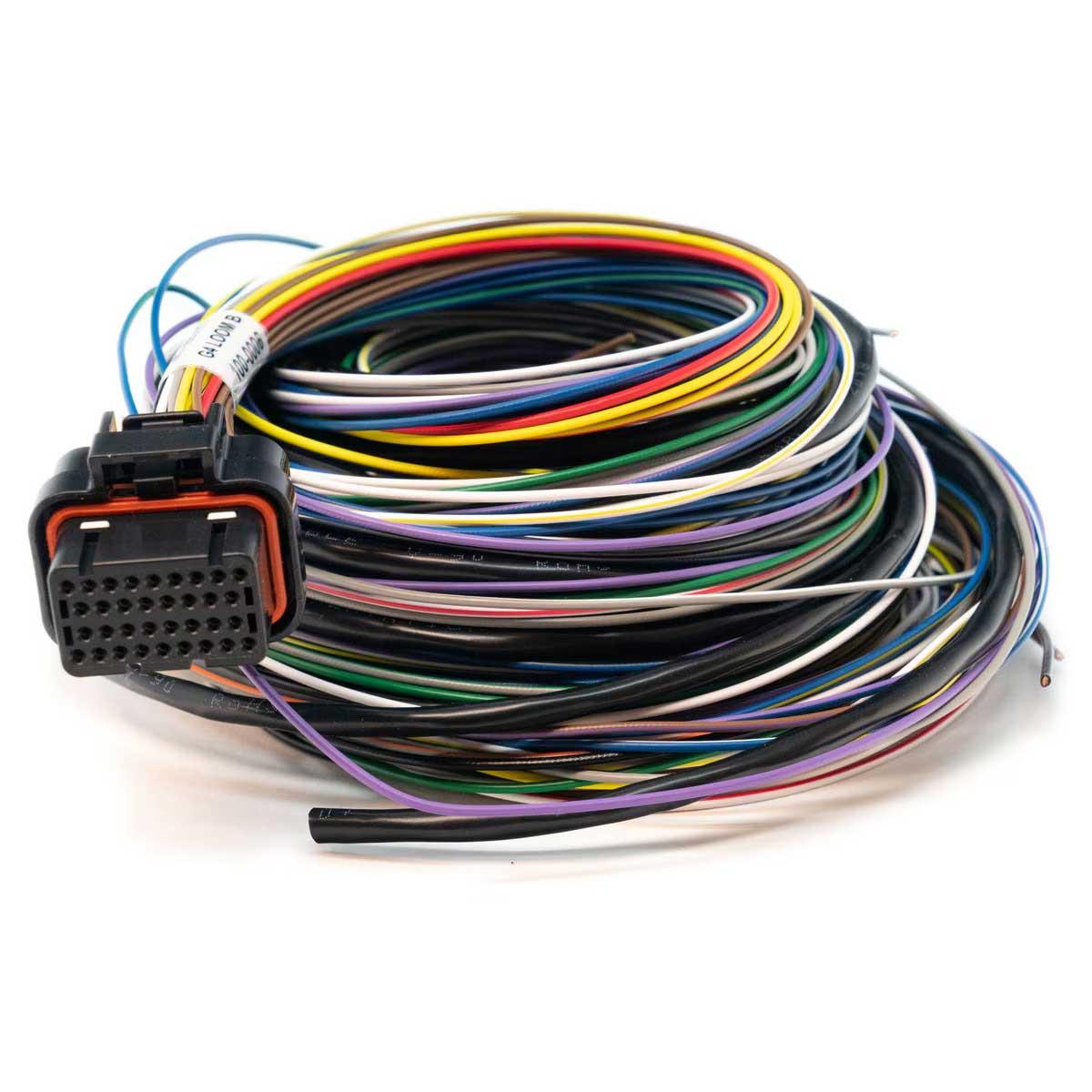

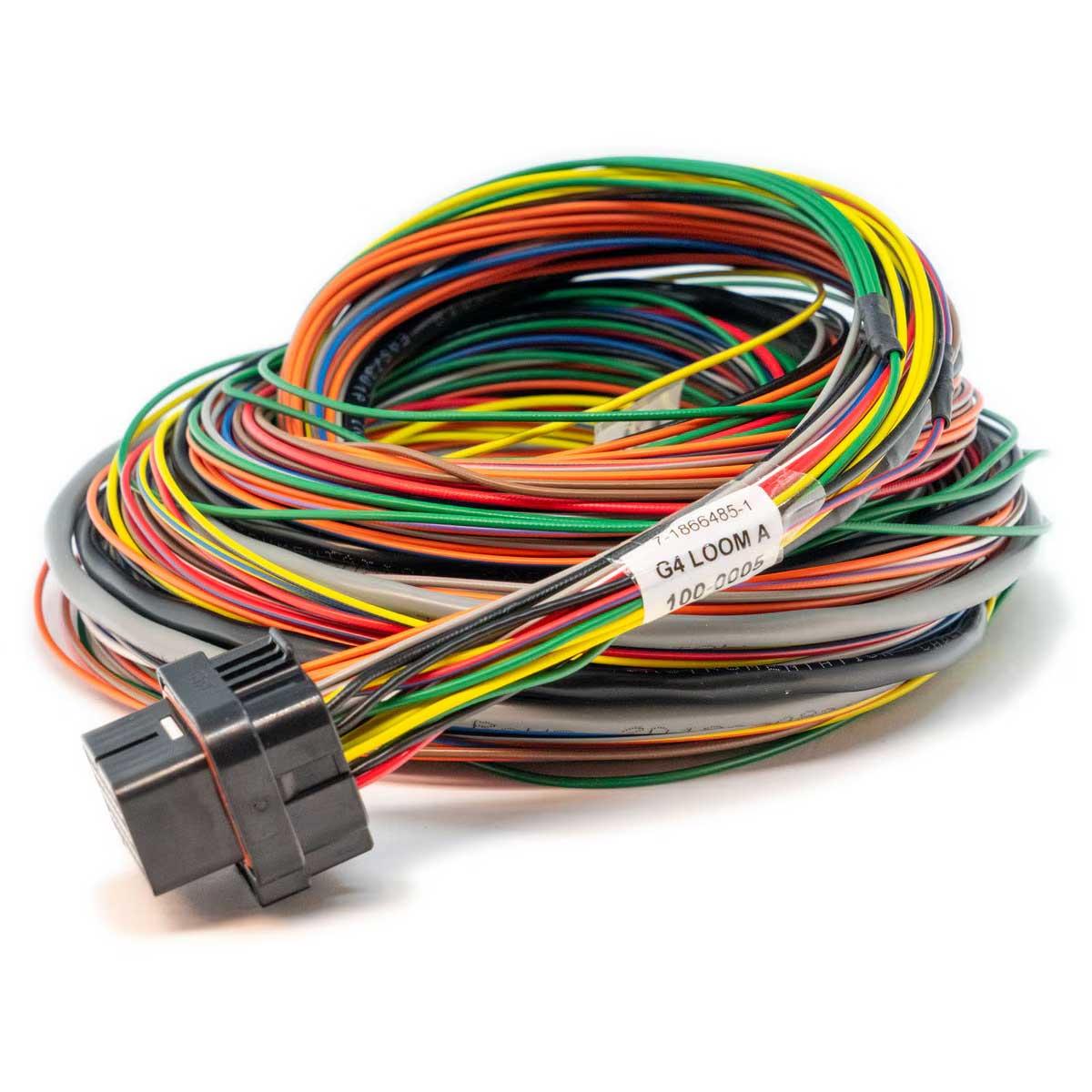

• 2.5 m A and B looms

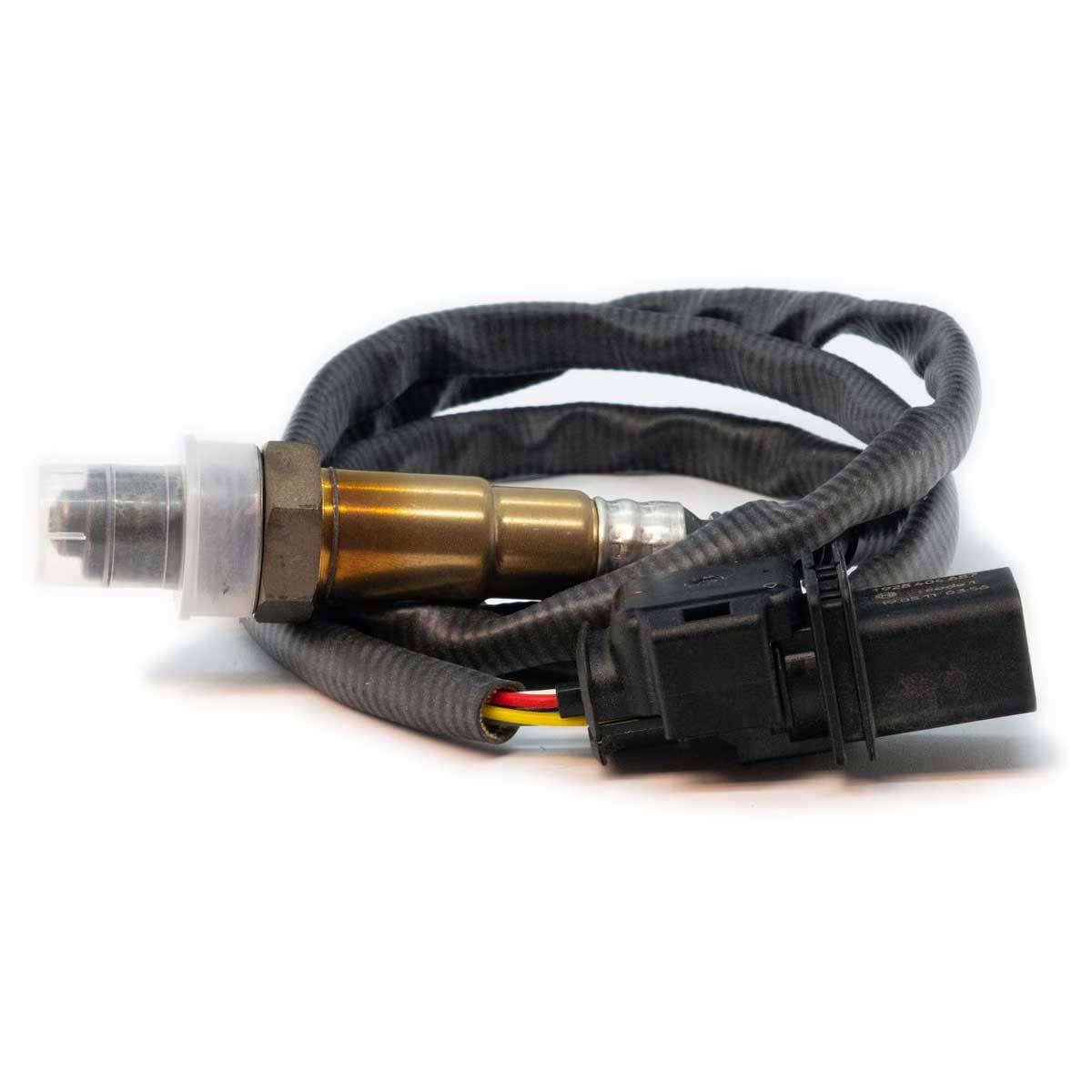

• Bosch LSU 4.9 wideband Lambda sensor, with plug and pin kit

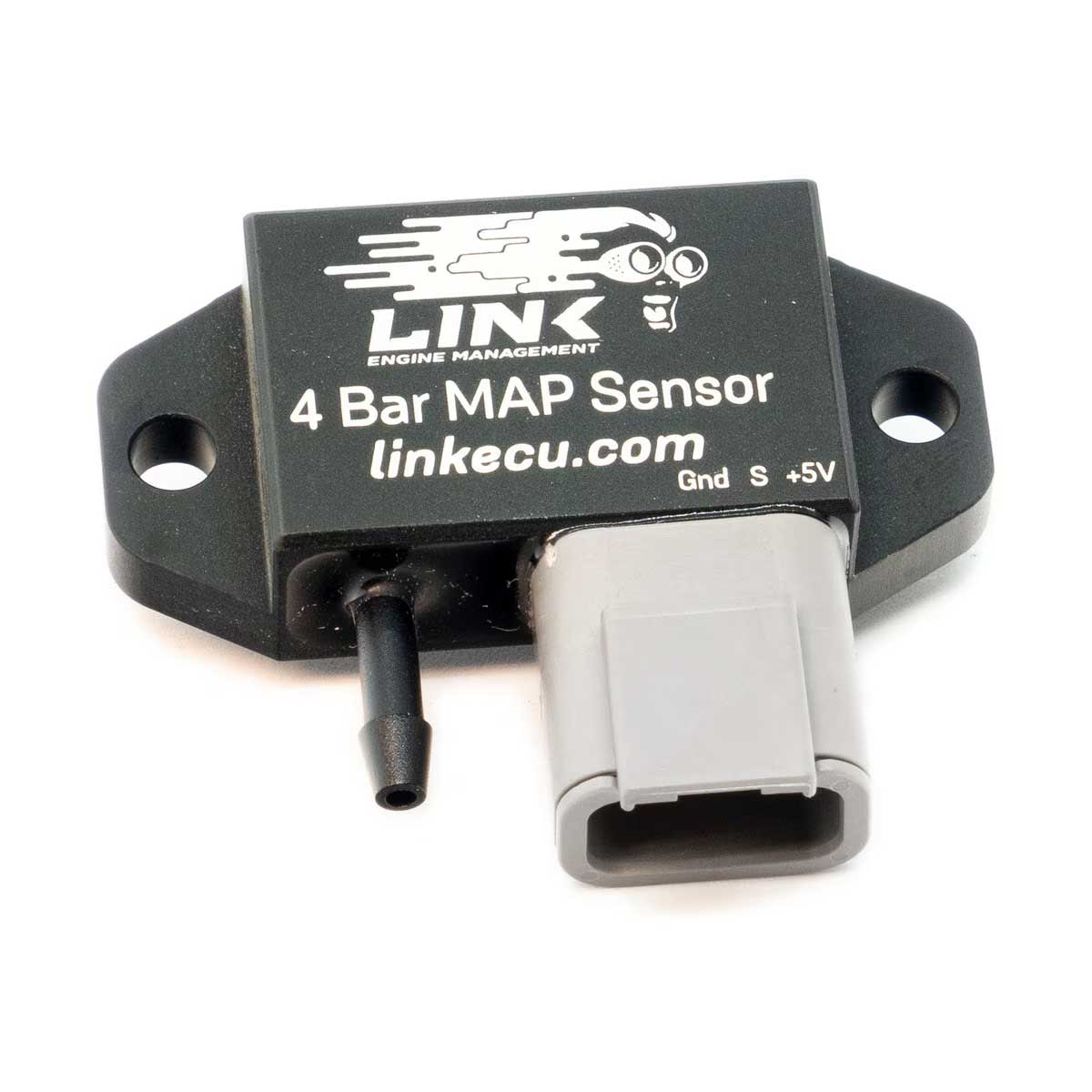

• Link 4 bar MAP sensor, with Deutsch DTM connector kit
• Intake air temperature (IAT) sensor, 1/8" NPT thread, with Deutsch DTM connector kit

The Neo 4 has onboard Digital Wideband Lambda Control, so the LSU 4.9 wires straight into the ECU for fast, accurate live Lambda with no external controller. The 4 bar MAP sensor suits turbo or supercharged engines running up to 3.0 bar (44 psi) of boost.

Suitable applications:
Up to 6 cylinders sequential port or direct injection with direct spark, or 4 cylinders with direct/port staged injection and direct spark.

G5 Voodoo Neo 4 Features:

• Port plus direct injection control
• G5 multi-board architecture with highly customisable ADIO and Aux/Digital Input pins
• GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning
• 1 GB internal data logging
• Automatic transmission control
• Onboard Digital Wideband Lambda control
• Dual H-bridges for E-Throttle and low power E-Wastegate control

Ideal for modern high-performance 4 or 6 cylinder builds that need next-generation engine management.

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned? Get in touch for a quote.
