Stage 1 – LINK G4X Plug-In ECU & Safety Sensor Package

Suit JZX90Link - JZX90X 1JZGTE NON-VVTI

This package is built around the LINK G4X plug-in platform and includes the core safety and monitoring hardware we recommend on every performance build.

What’s Included:

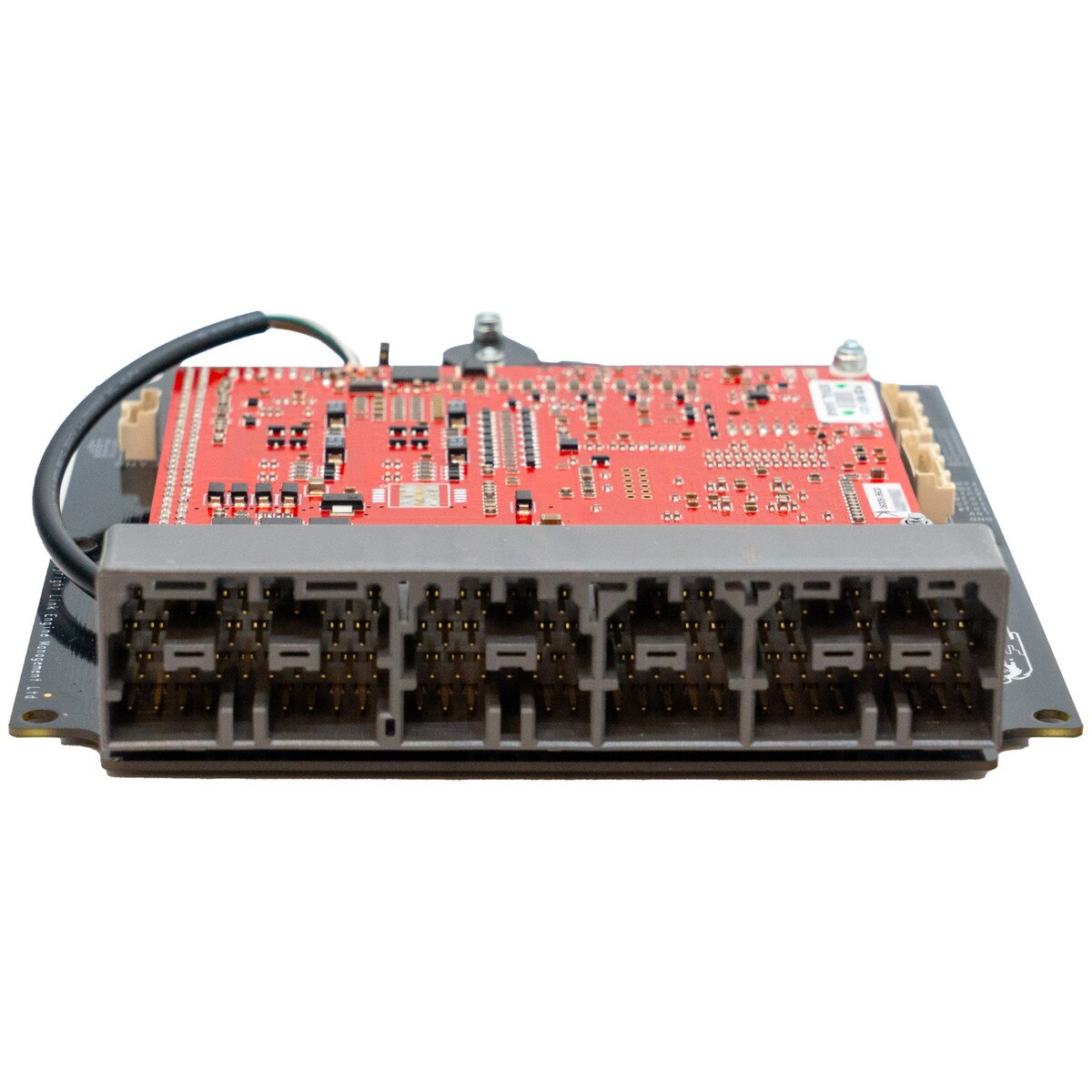

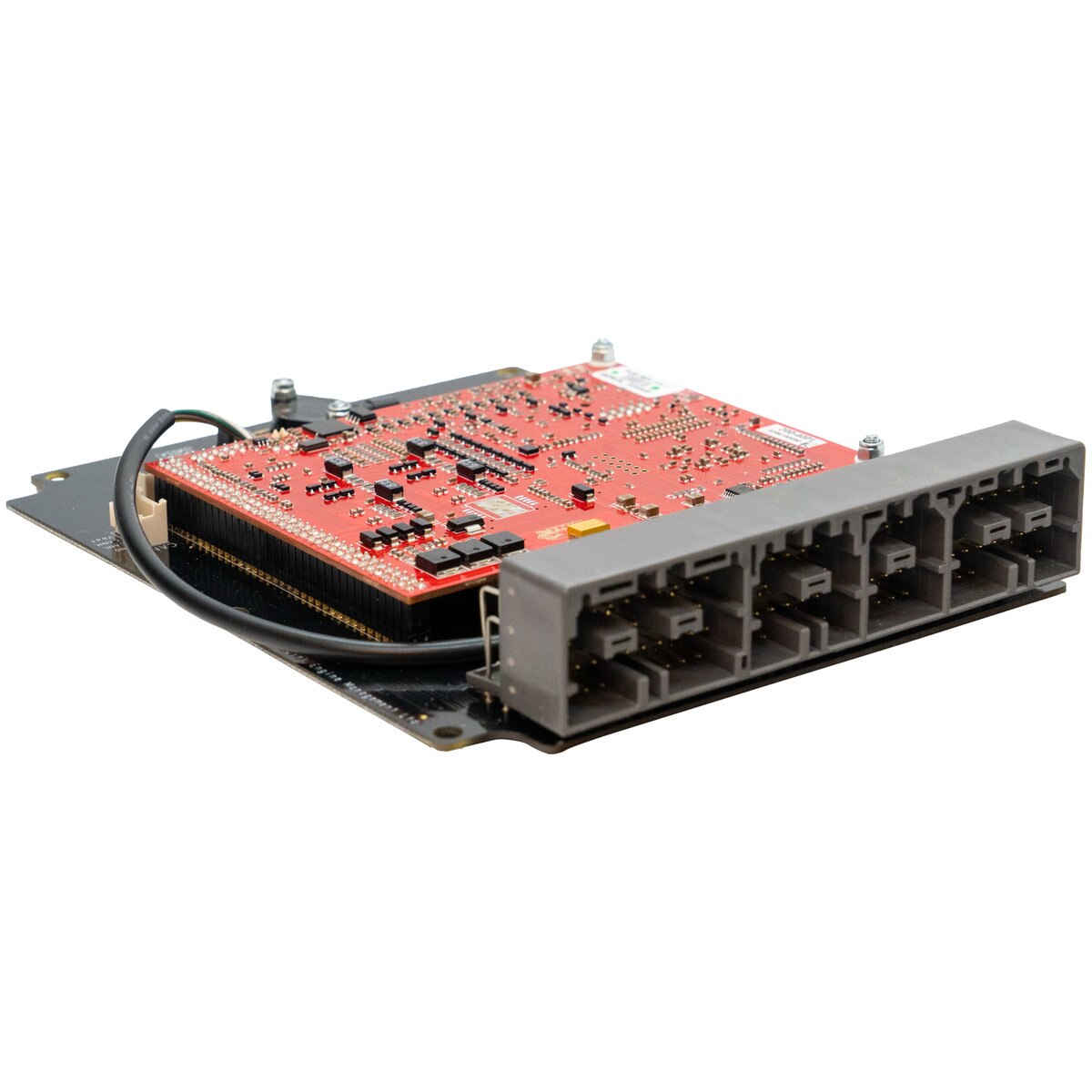

• LINK G4X Plug-In ECU (vehicle-specific – JZX90Link - JZX90X 1JZGTE NON-VVTI)

• LINK 7 Bar Onboard MAP Sensor

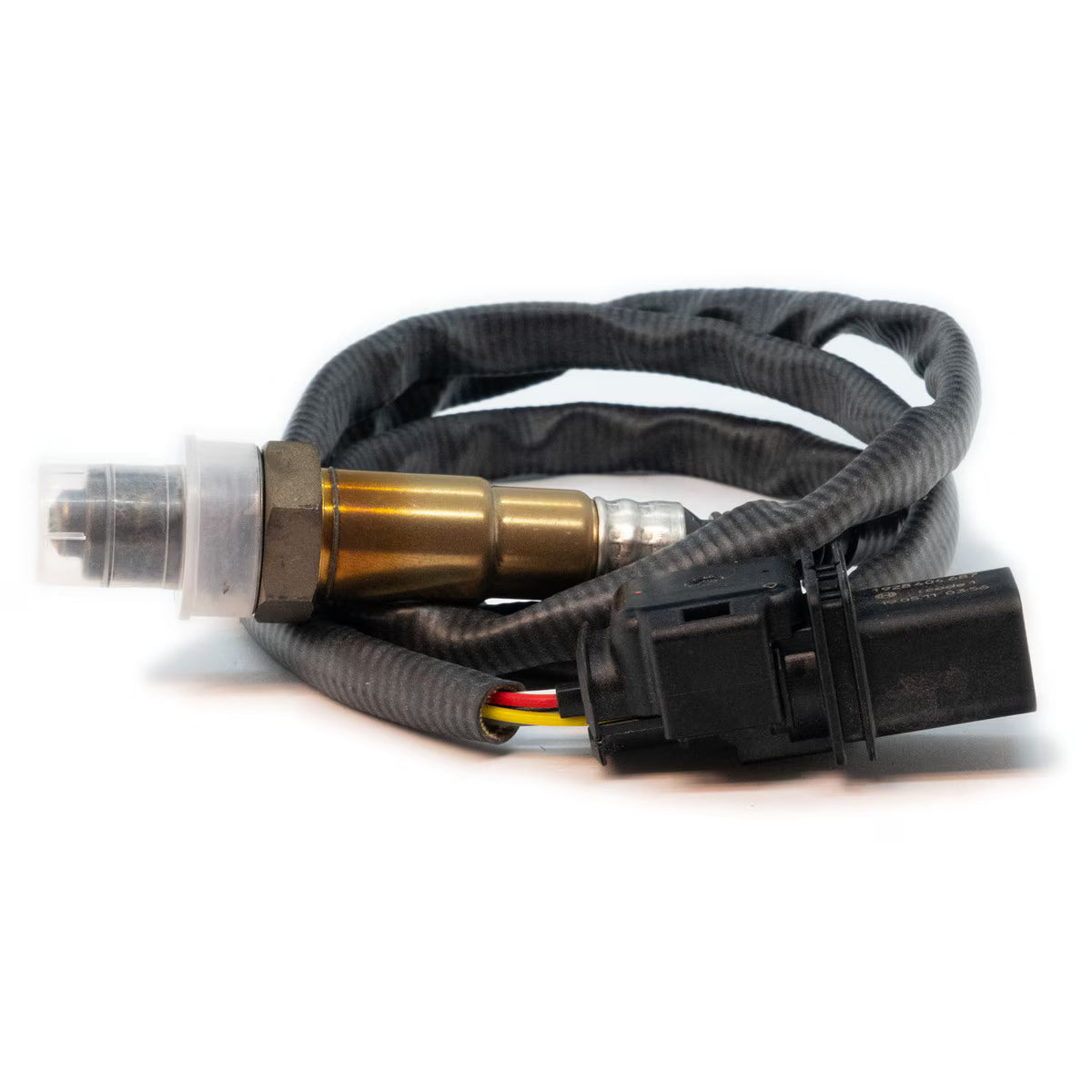

• LINK CAN Lambda Wideband Kit

• LINK CAN Bus Communication Harness

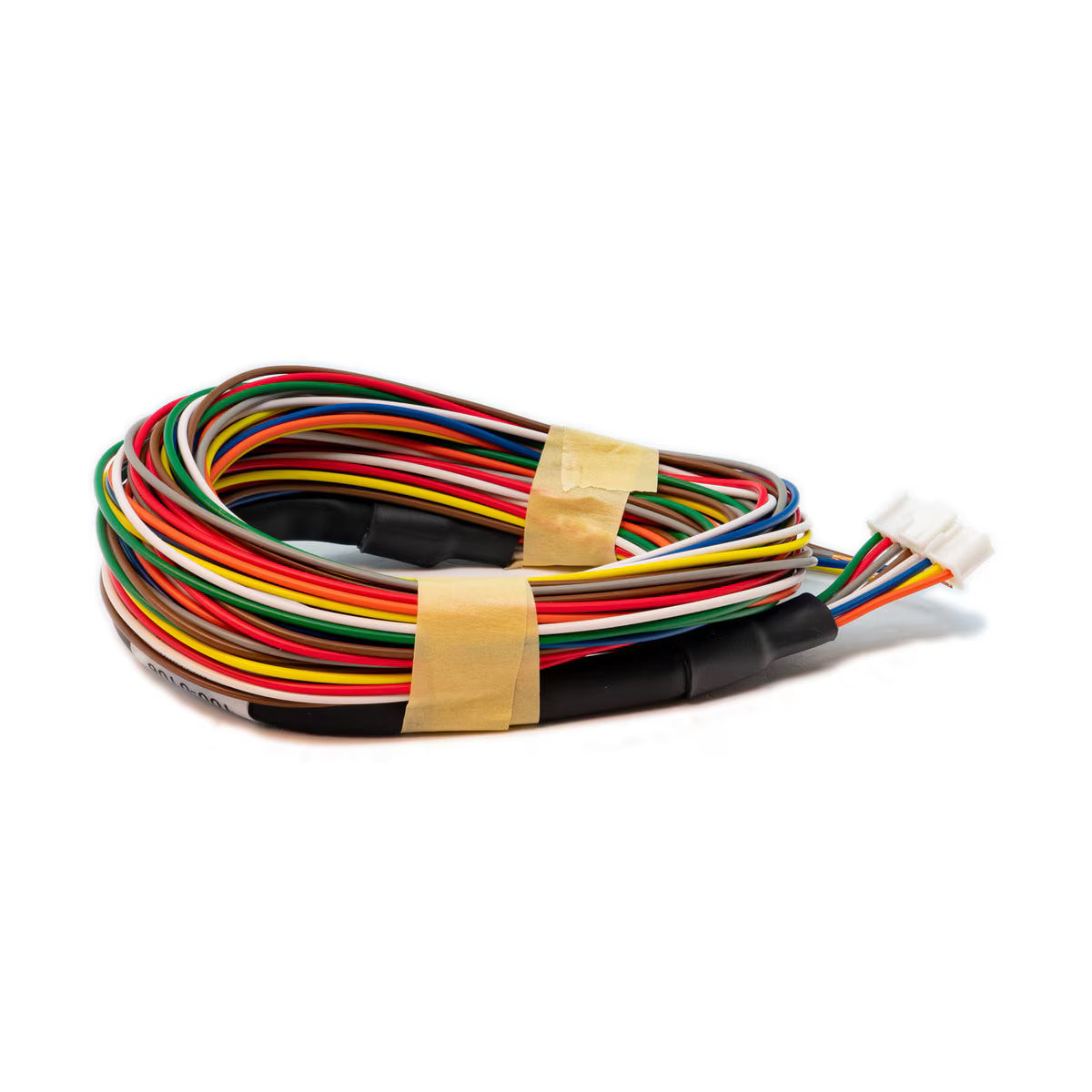

• LINK I/O Expander Harness ×2

• Intake Air Temperature (IAT) Sensor & Plug Kit

• Oil Pressure Sensor & Plug Kit

• Fuel Pressure Sensor & Plug Kit

Easy to install. Affordable. Reliable.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.

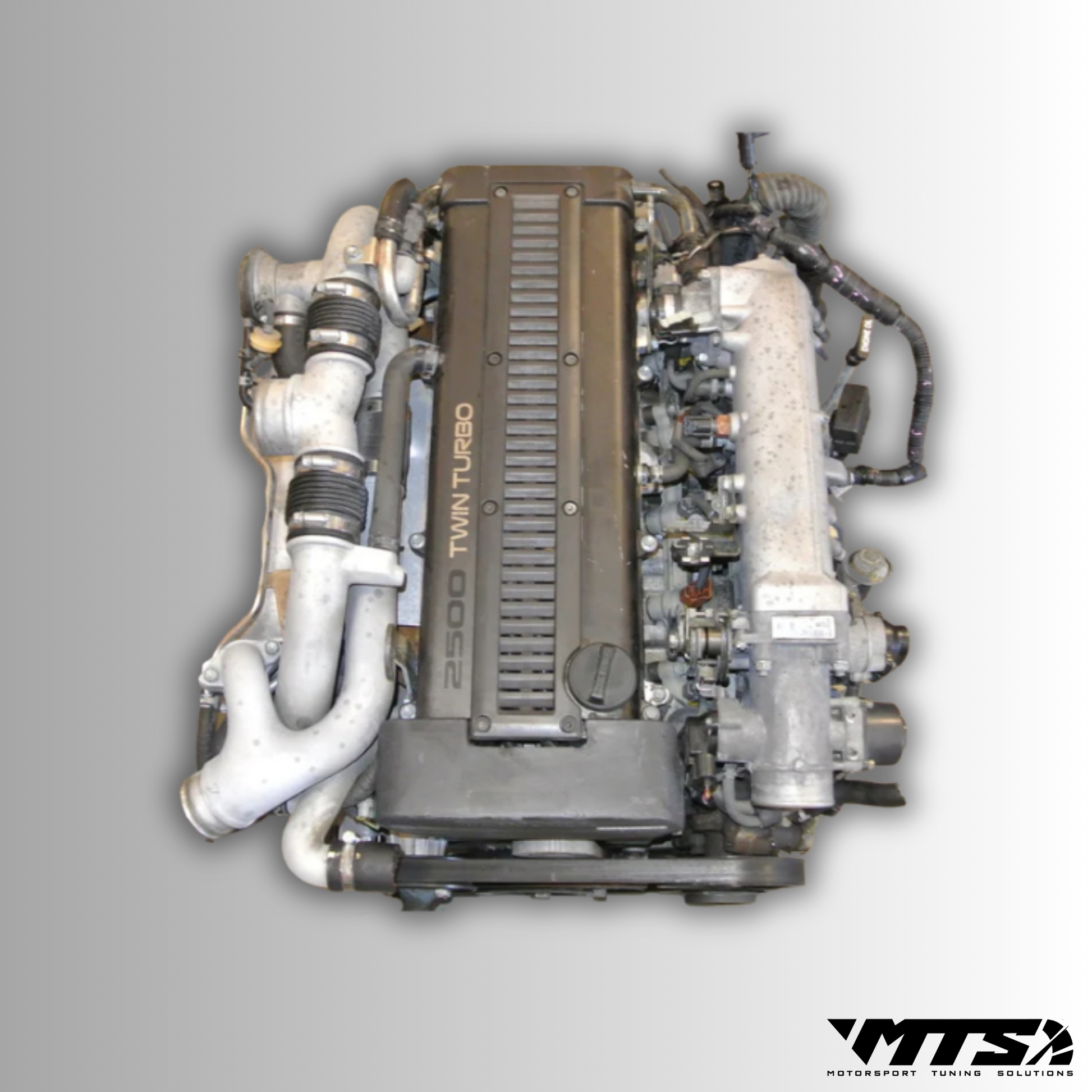

Designed for the 1JZ-GTE (Non-VVTi) engine.

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• ECU includes an onboard 7 bar MAP sensor.
• Most factory features are supported (Factory traction control not supported, dash light may be illuminated). Check the features tab for I/O expansion options

Suitable applications:

• Toyota JZX90 (Chaser/Cresta/Mark II) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission
• Toyota JZZ30 (Soarer) with 1JZ-GTE (Non-VVTi) engine, Manual Transmission (Pin Compatible but not case compatible)

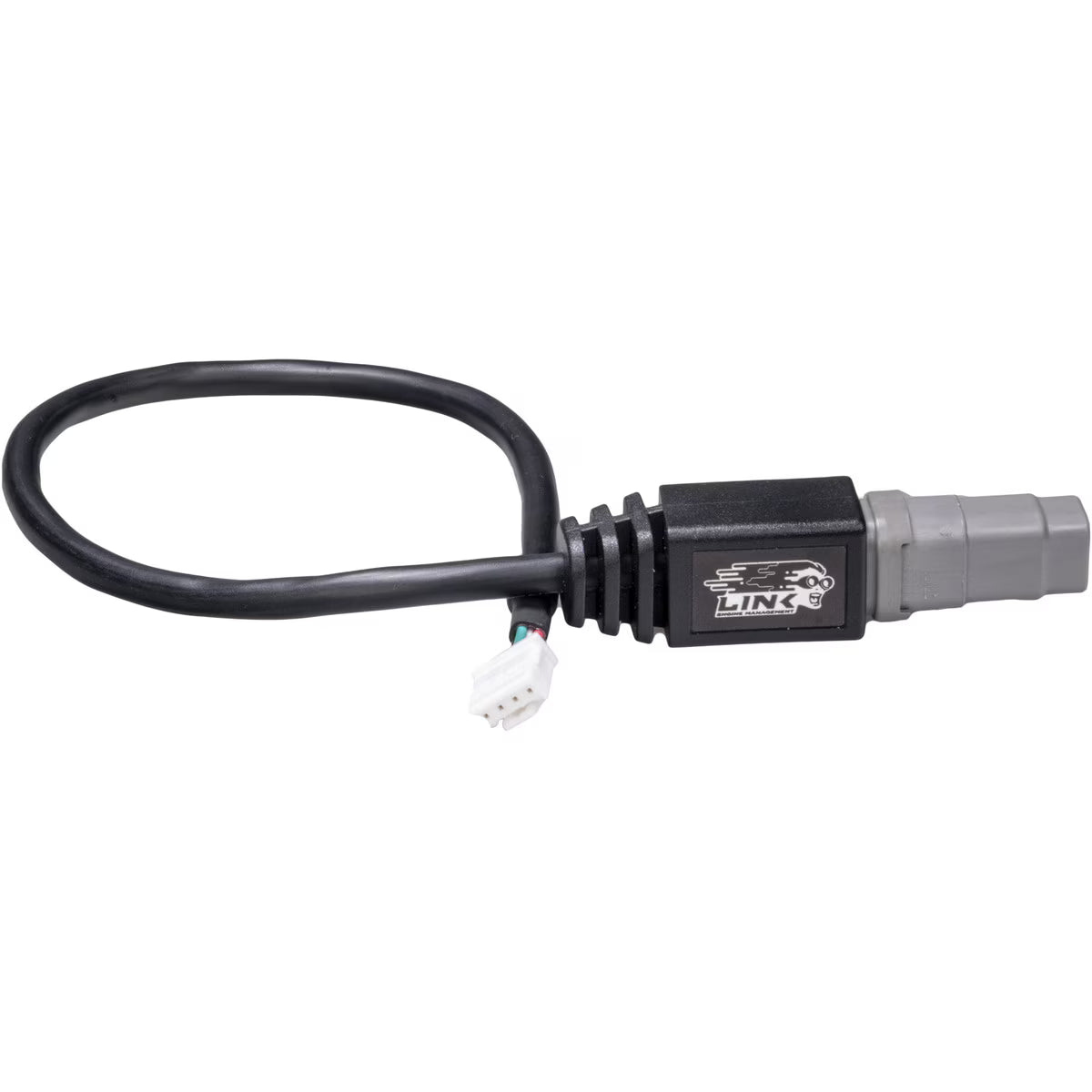

Note: This Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection. Use the CANJST4 (Link PN 101-0198) cable for connecting CAN devices. This new 4 pin port and cable provide not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices. The power supply is protected by a self-resetting fuse rated at 3A continuous.
