LINK G4X Gen 4 LS Engine Harness Bundle - LS2 / LS3 / LS7 / LSA - XtremeX Drive-by-Wire ECU + Terminated Harness (+ Fuse Box option)

A ready-to-go Link ECU and engine harness package for Gen 4 LS V8s.
Everything you need to connect a Link G4X XtremeX ECU to your Gen 4 drive-by-wire LS2, LS3, LS7 or LSA V8, with a fully terminated engine harness and all the Gen 4 adapter looms to suit. Available with or without Link's LS fuse and relay box.

Choose your bundle:

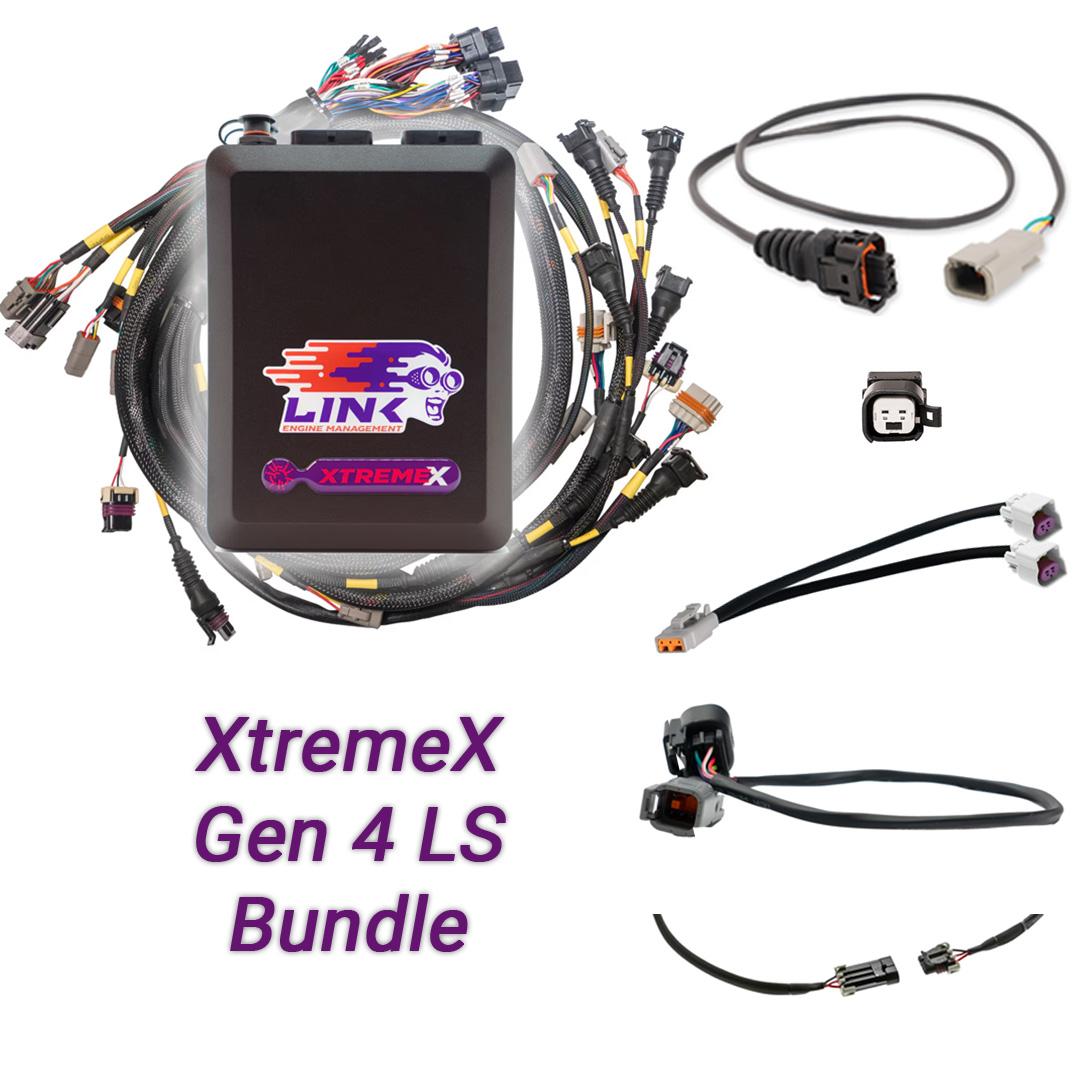

• XtremeX - Drive-by-Wire (109-9020B)

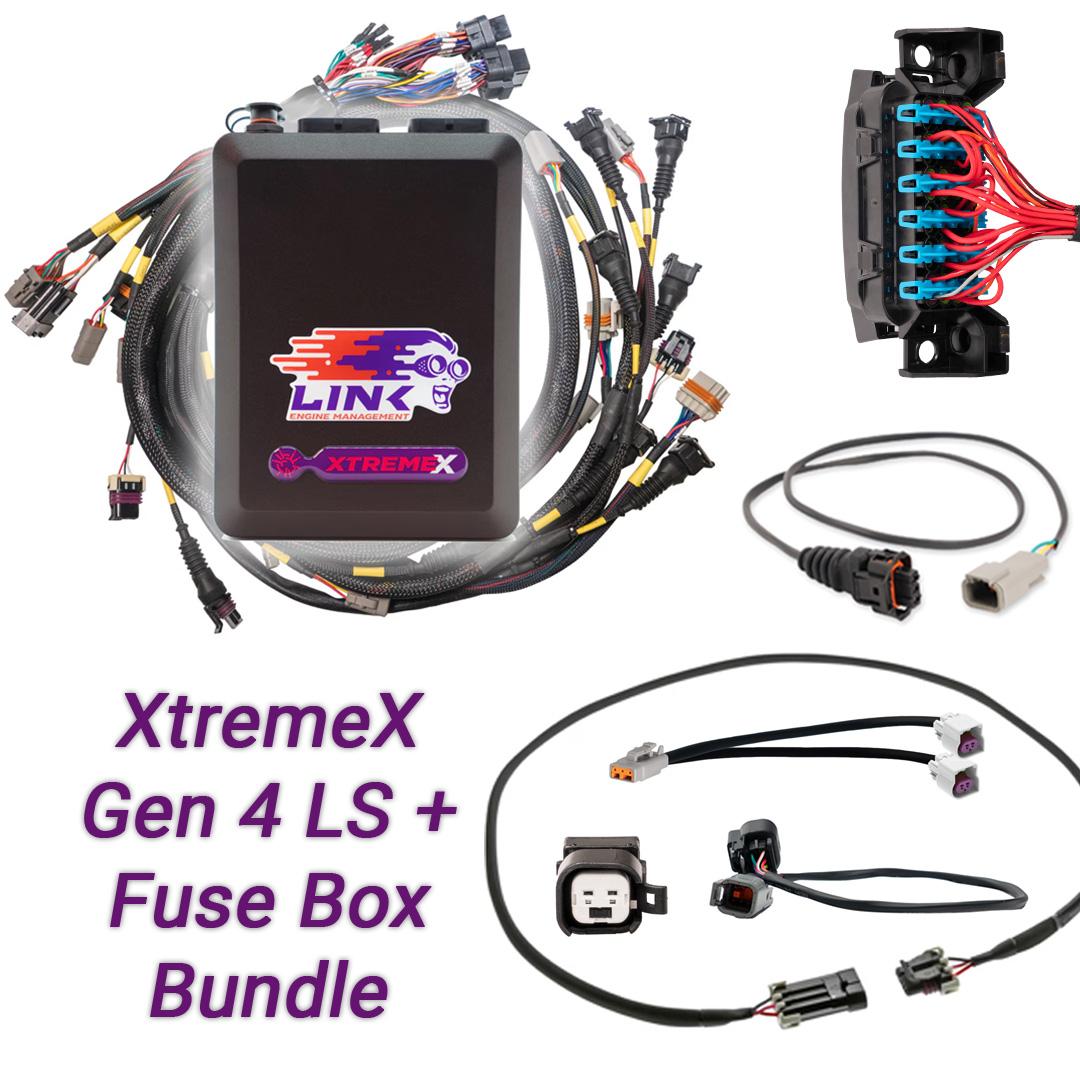

• XtremeX - Drive-by-Wire + Fuse Box (109-9025B)

Bundle includes:

• G4X XtremeX ECU (8 x injector and 8 x ignition drives) - 109-4000

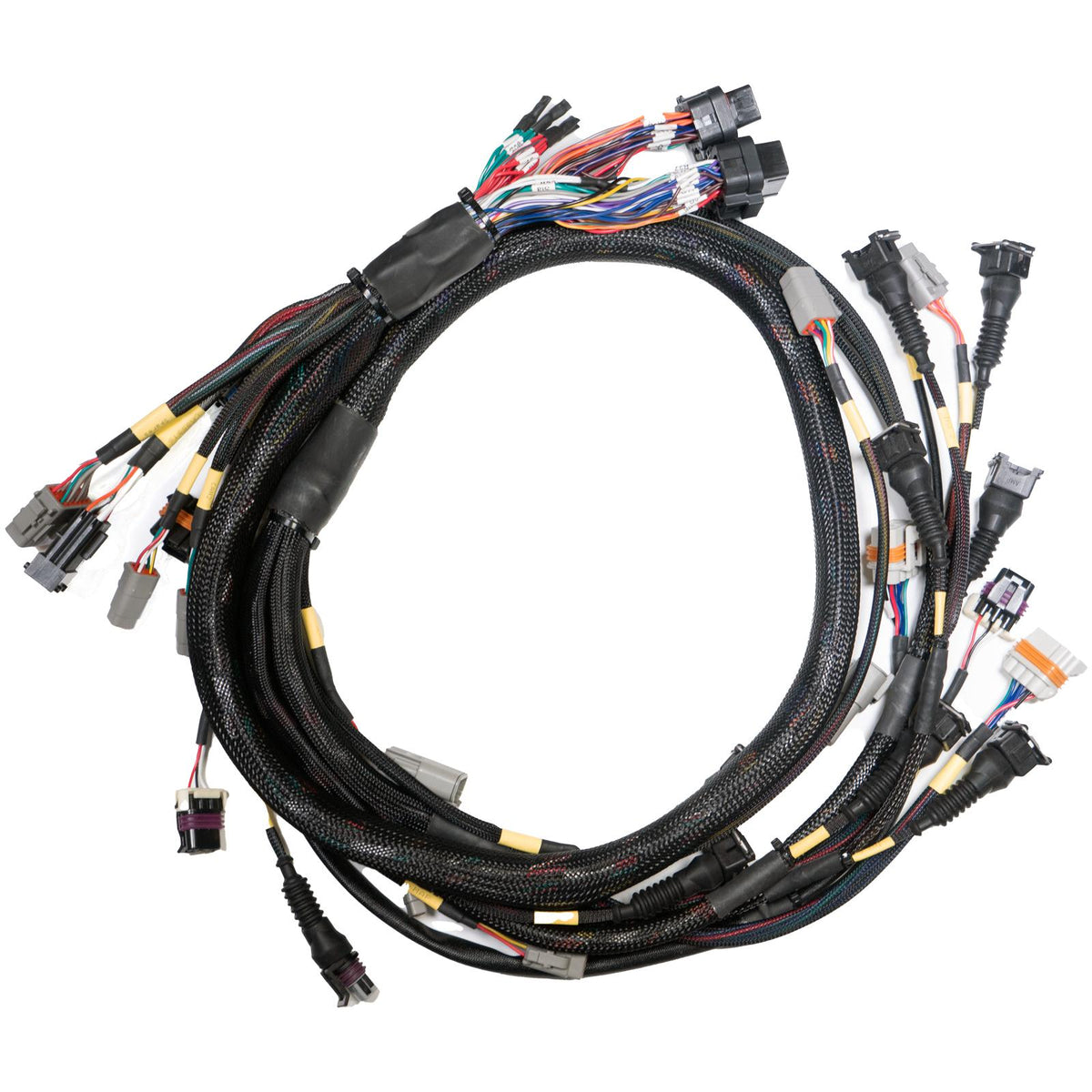

• Terminated Engine Harness GM LS Gen 3/4 - 101-0300
• LS Drive-by-Wire Adapter Loom - 101-0304
• LS Gen 4 Knock Adapter Loom - 101-0306
• LS Gen 4 MAP Adapter Harness - 101-0308
• LS Cam Sensor Adapter Harness - 101-0307
• 8 x Bosch Male to Female Adapters - 101-0287

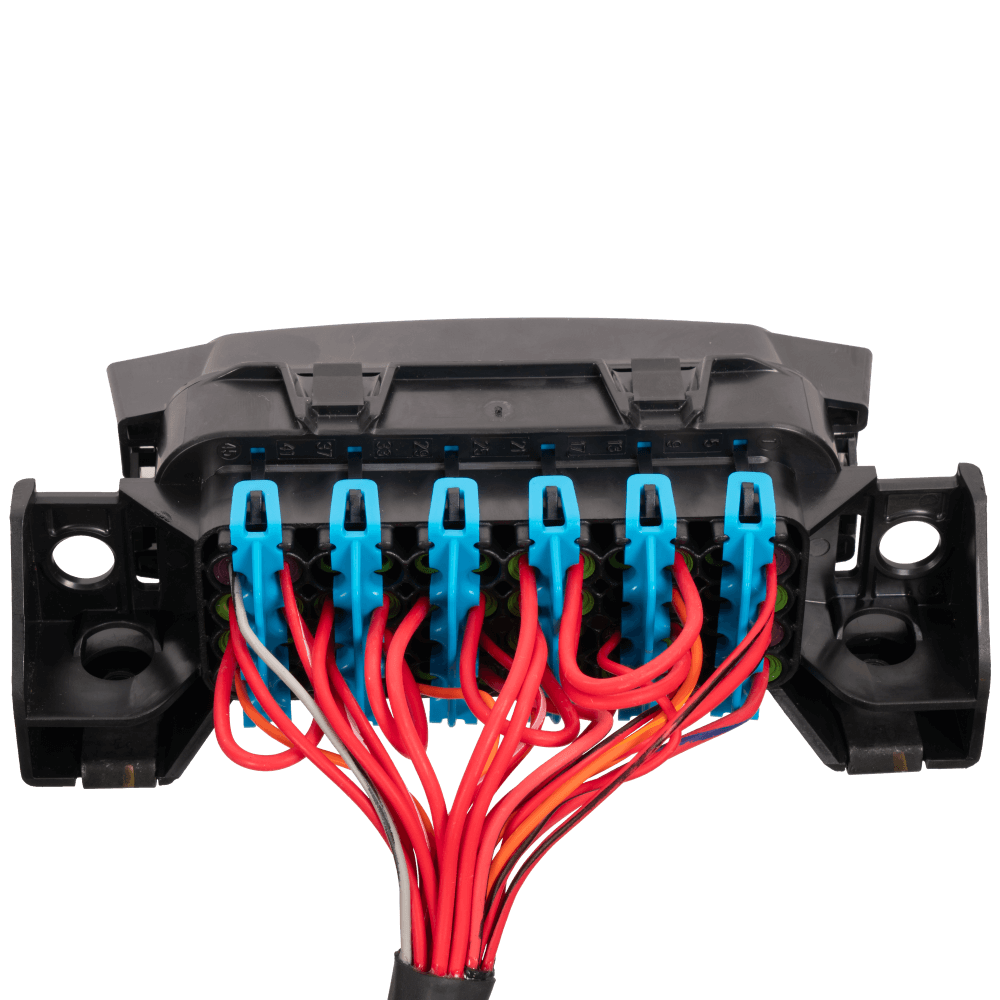

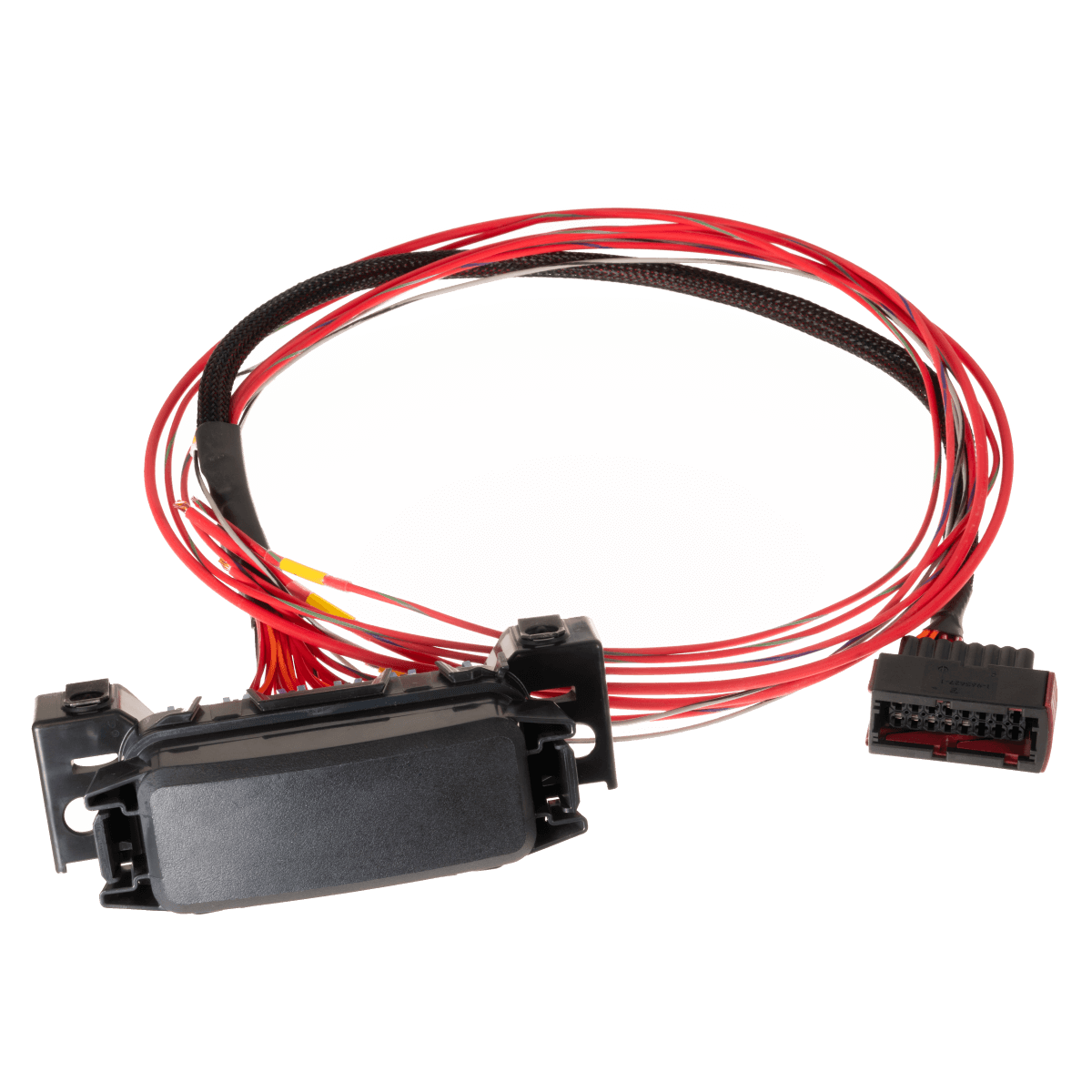

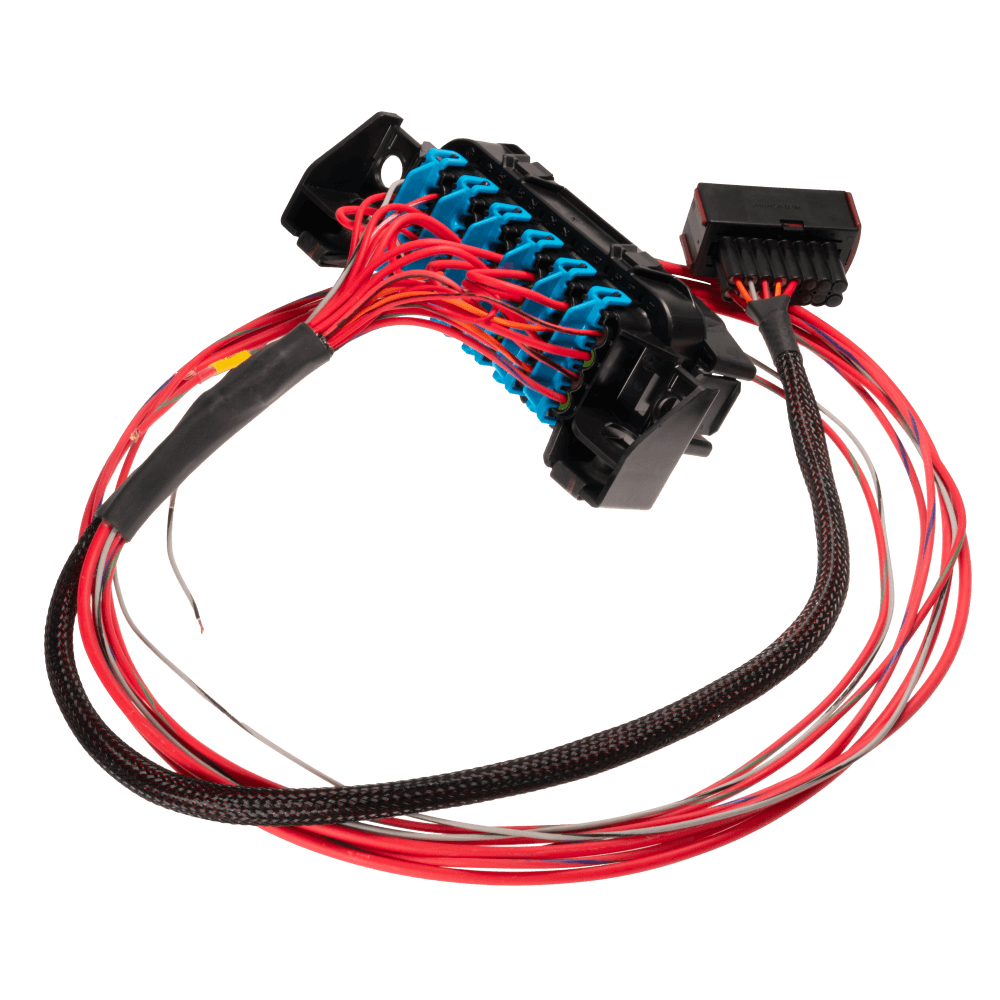

• Plus LS Fuse and Relay Box - 101-0310 (Fuse Box option only)

Suitable applications:
GM Gen 4 drive-by-wire LS V8 engines (LS2, LS3, LS7 and LSA). Running a Gen 3 LS1 or LS6? See our Gen 3 LS Engine Harness Bundle.

Also available from Link:

• PC Link base map for Gen 4 drive-by-wire LS on G4X XtremeX/StormX
• Harness manual and online instruction manual

Important notes:

• These bundles are new from Link and are currently made to order. Get in touch for current lead times before ordering.

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned on our Mainline ProHub dyno? Get in touch for a quote.
