LINK G4X Gen 3 LS Engine Harness Bundle - LS1 / LS6 - StormX or XtremeX ECU + Terminated Harness (+ Fuse Box option)

A ready-to-go Link ECU and engine harness package for Gen 3 LS V8s.
Everything you need to connect a Link G4X ECU to your Gen 3 LS1 or LS6 V8, with a fully terminated engine harness and the adapter looms to suit. Choose the StormX for cable throttle engines or the XtremeX for drive-by-wire, with or without Link's LS fuse and relay box.

Choose your bundle:

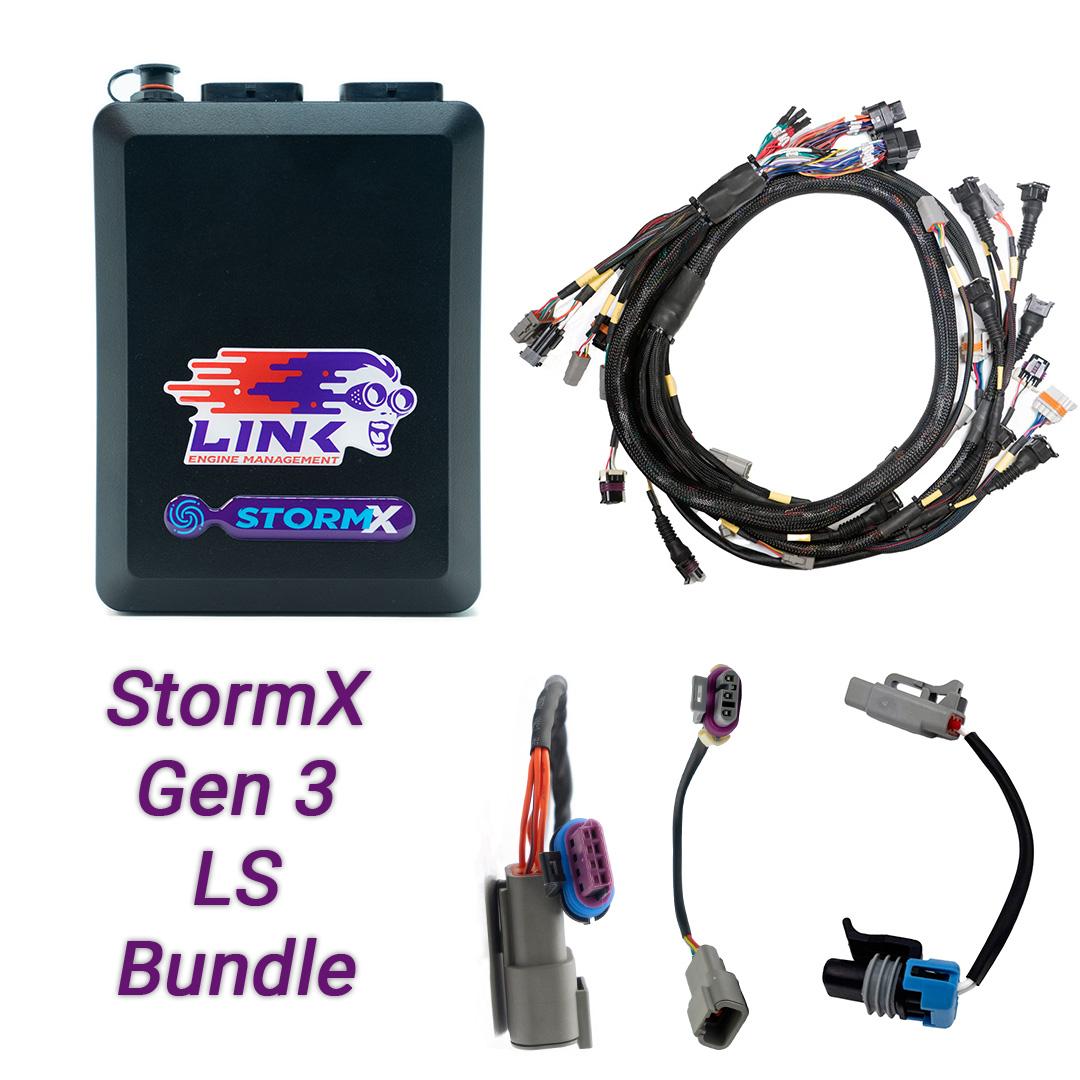

• StormX - Cable Throttle (108-9005B)

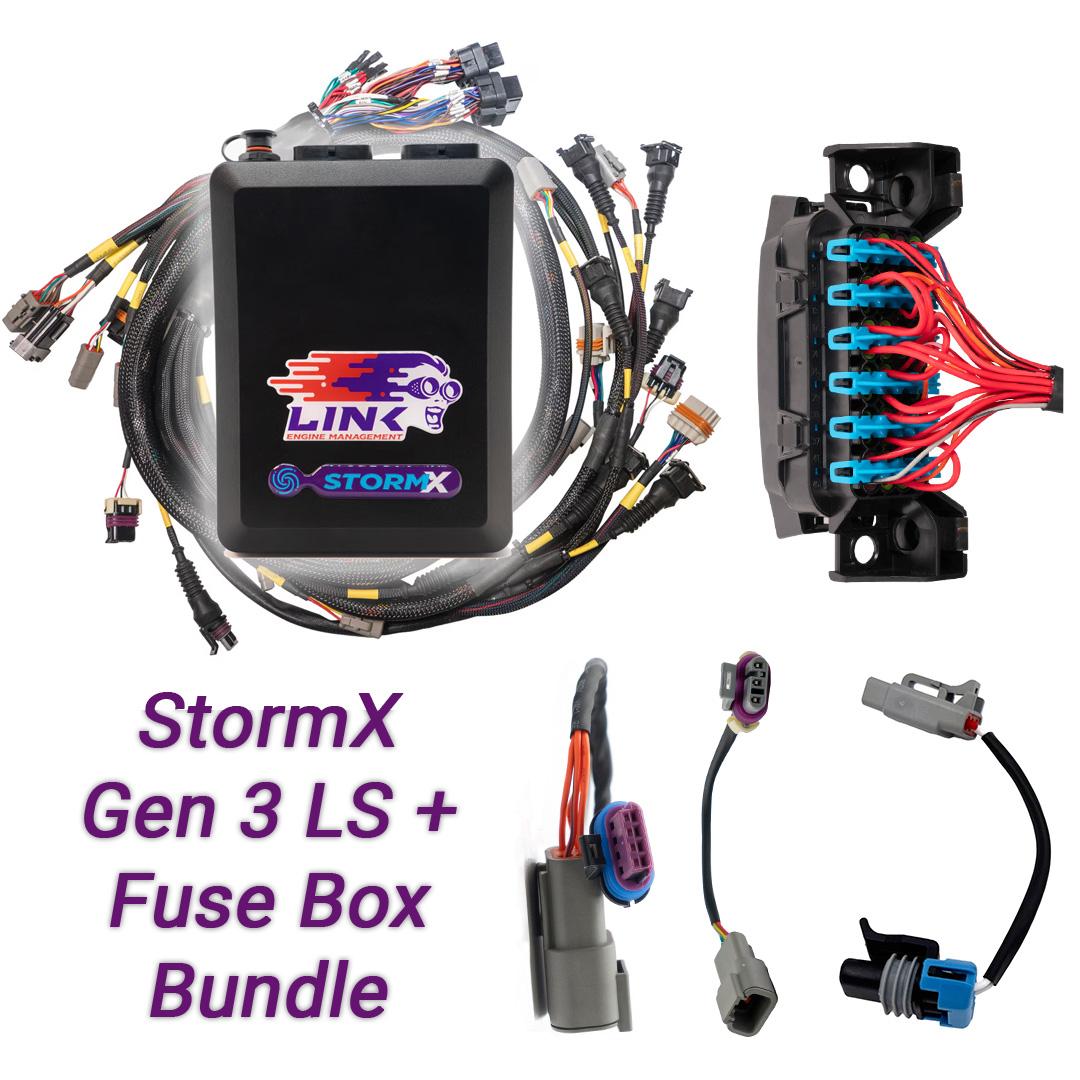

• StormX - Cable Throttle + Fuse Box (108-9010B)

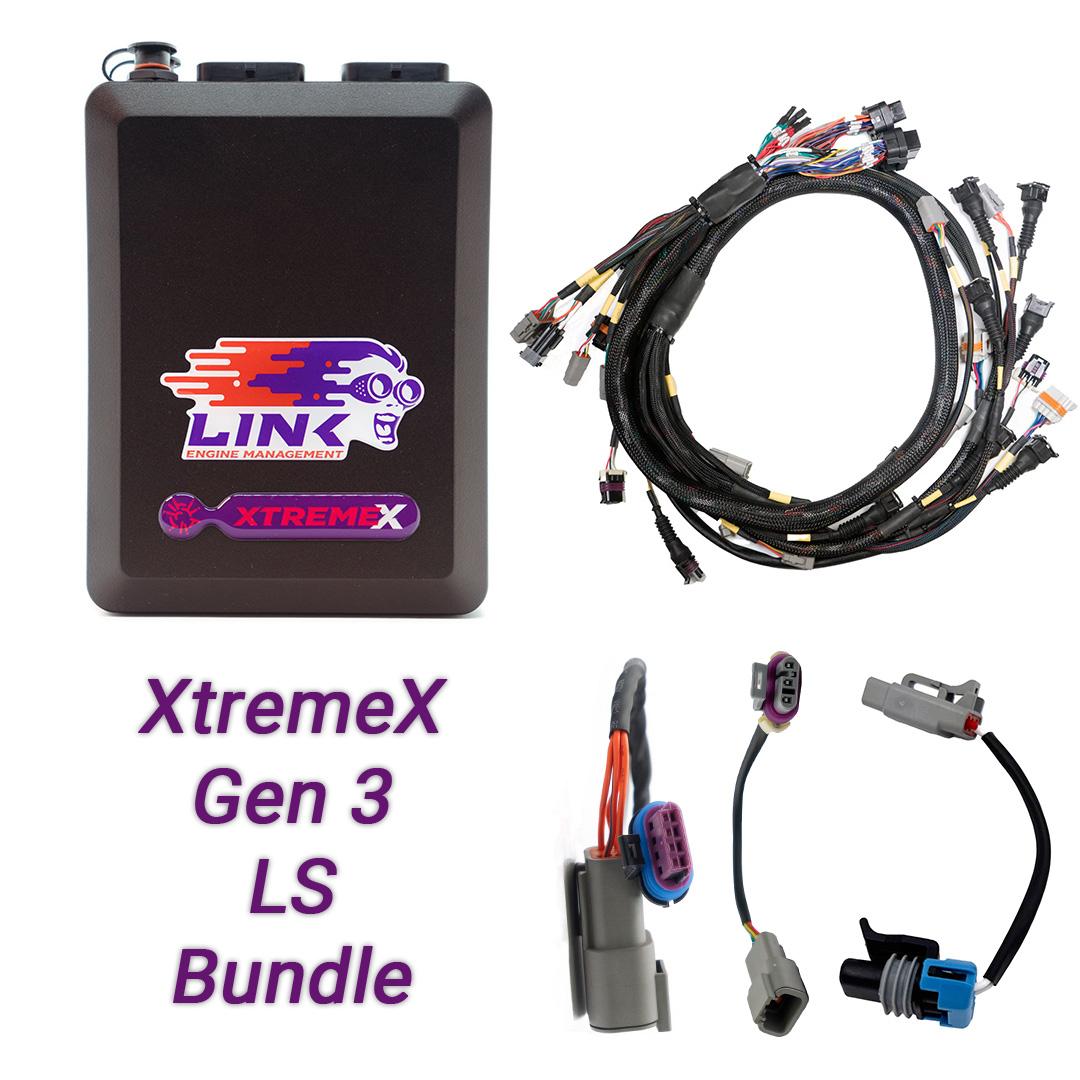

• XtremeX - Drive-by-Wire (109-9005B)

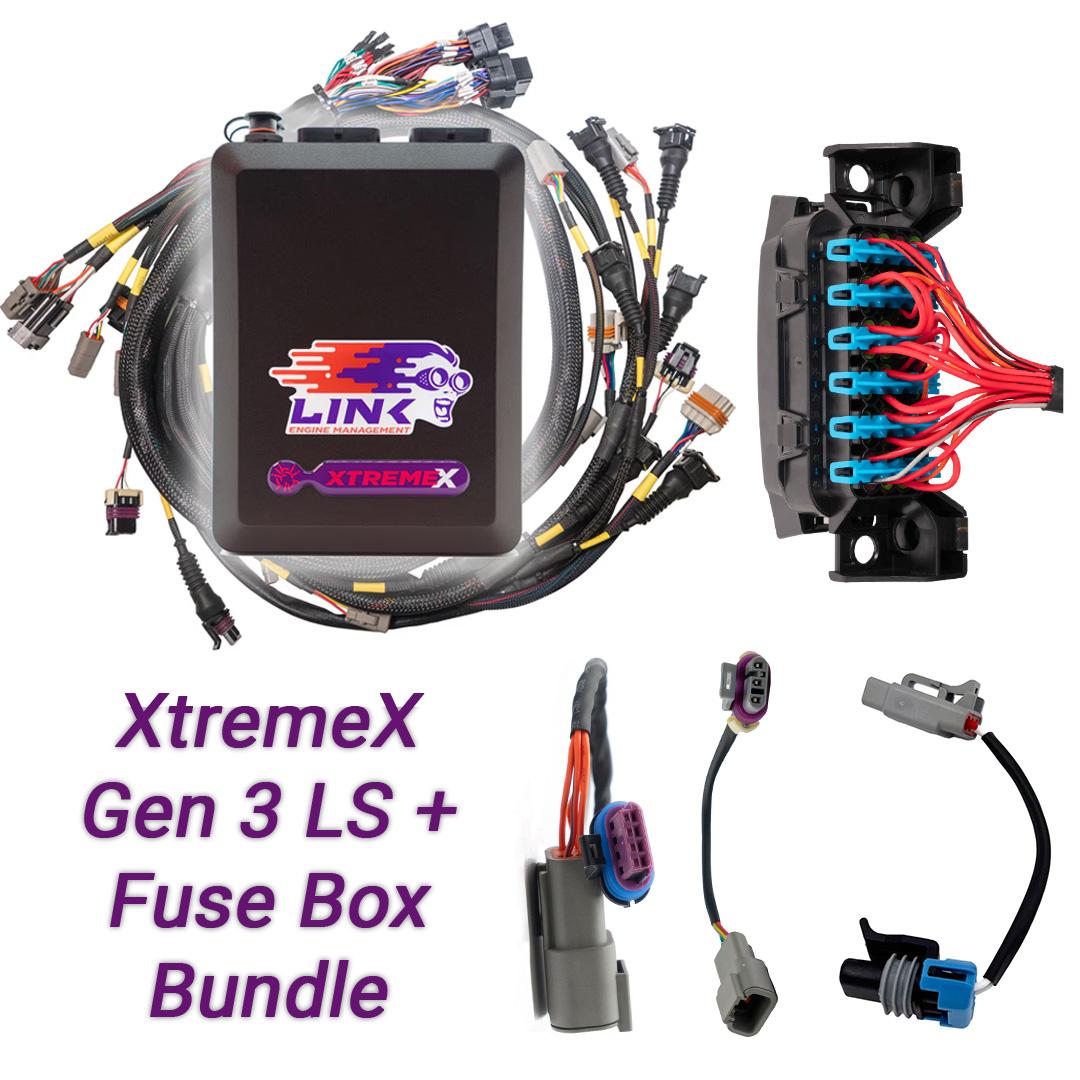

• XtremeX - Drive-by-Wire + Fuse Box (109-9010B)

StormX cable throttle bundles include:

• G4X StormX ECU (8 x injector and 8 x ignition drives) - 108-4000
• Terminated Engine Harness GM LS Gen 3/4 - 101-0300
• LS Stepper Adapter Harness - 101-0301
• LS MAP Adapter Harness - 101-0302
• LS Gen 3 Knock Adapter Loom - 101-0305

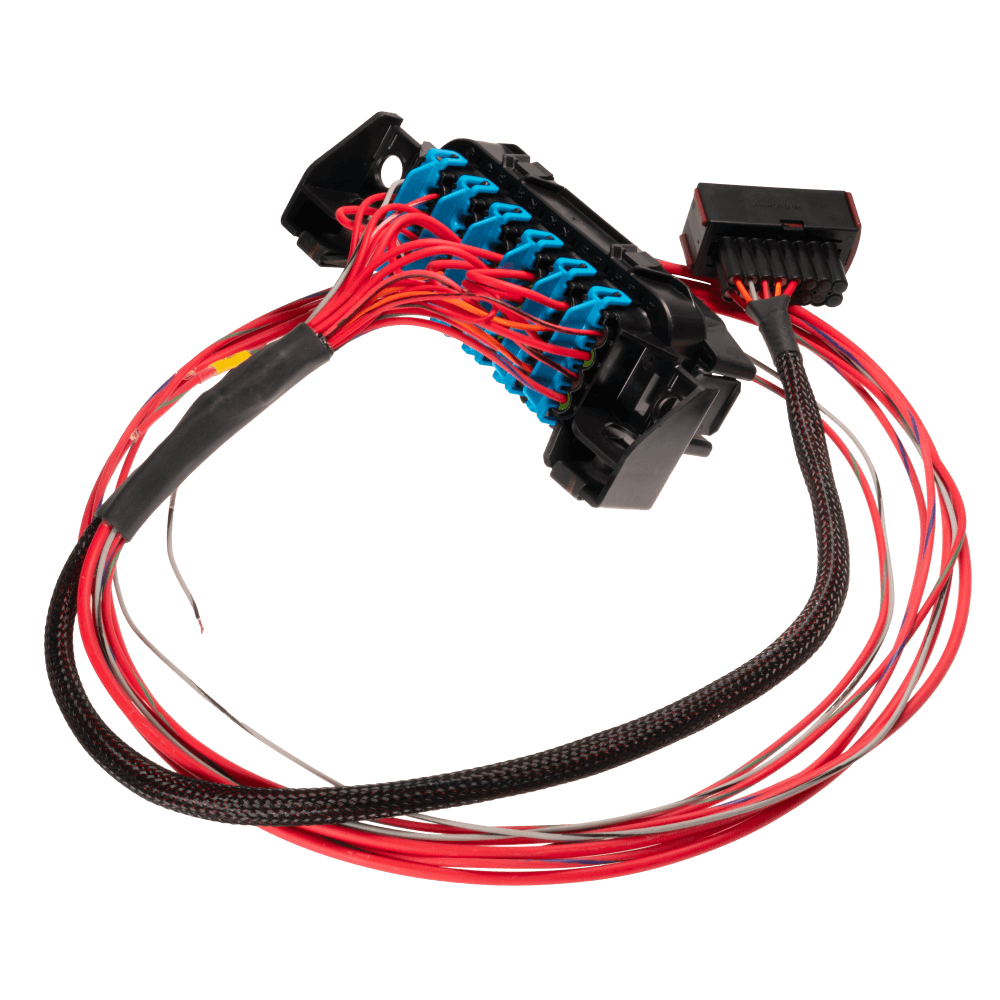

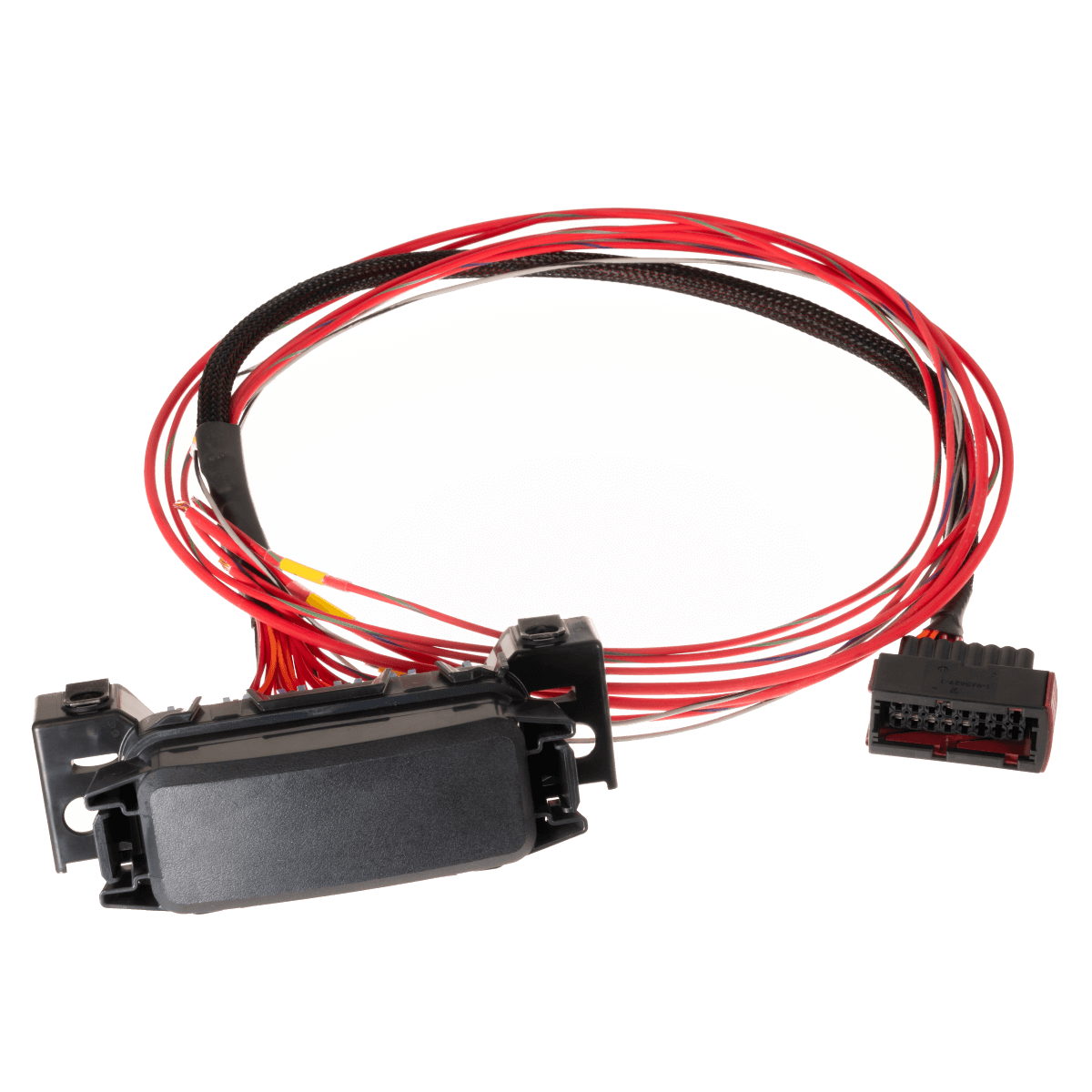

• Plus LS Fuse and Relay Box - 101-0310 (Fuse Box option only)

XtremeX drive-by-wire bundles include:

• G4X XtremeX ECU (8 x injector and 8 x ignition drives) - 109-4000
• Terminated Engine Harness GM LS Gen 3/4 - 101-0300
• LS DBW Adapter Loom - 101-0304
• LS MAP Adapter Harness - 101-0302
• LS Gen 3 Knock Adapter Loom - 101-0305
• Plus LS Fuse and Relay Box - 101-0310 (Fuse Box option only)

Suitable applications:
GM Gen 3 LS V8 engines (LS1 and LS6). Running a Gen 4 LS (LS2, LS3, LS7 or LSA)? See our Gen 4 LS Engine Harness Bundle.

Also available from Link:

• PC Link base map for Gen 3 LS on G4X XtremeX/StormX
• Harness manual and online instruction manual

Important notes:

• These bundles are new from Link and are currently made to order. Get in touch for current lead times before ordering.

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned on our Mainline ProHub dyno? Get in touch for a quote.
