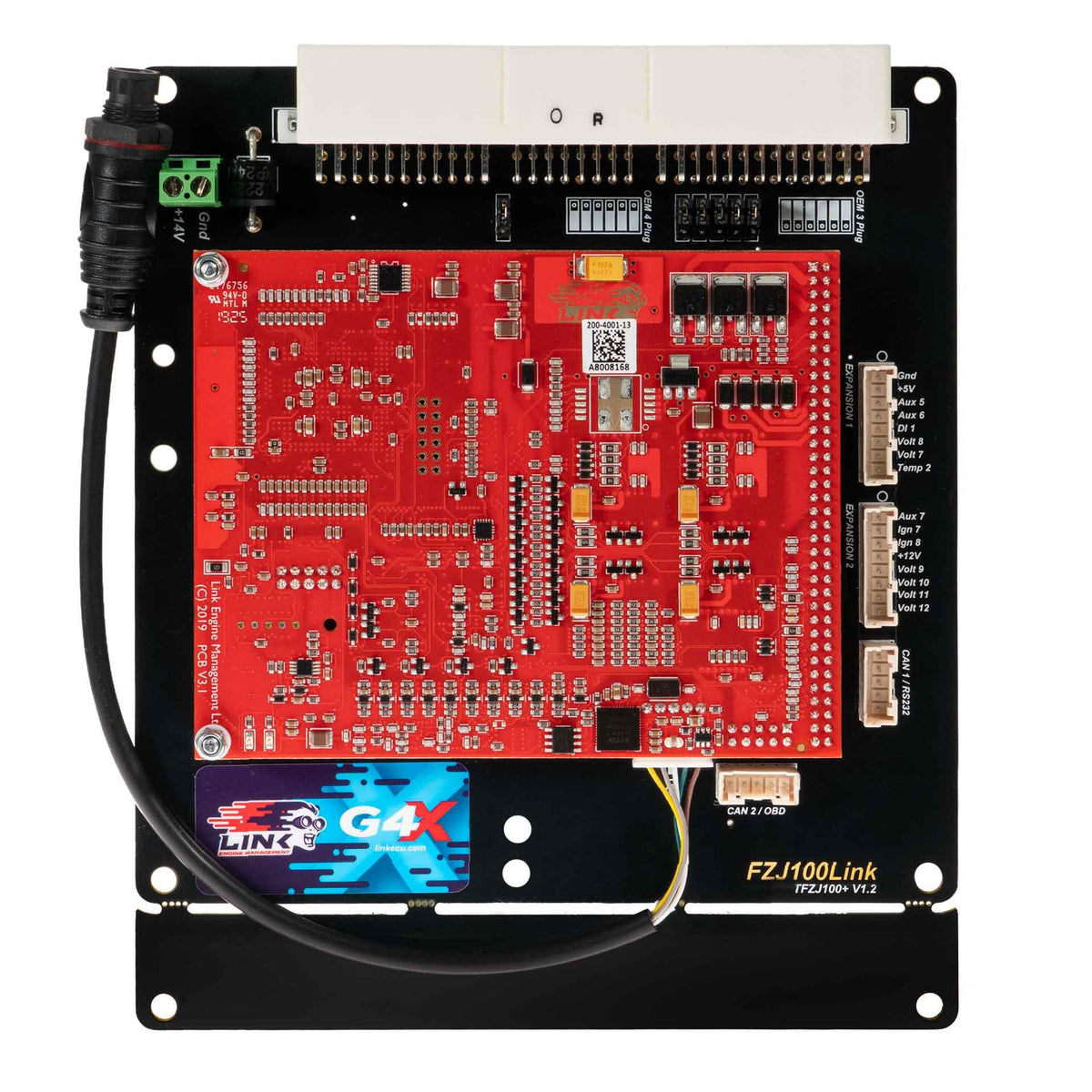

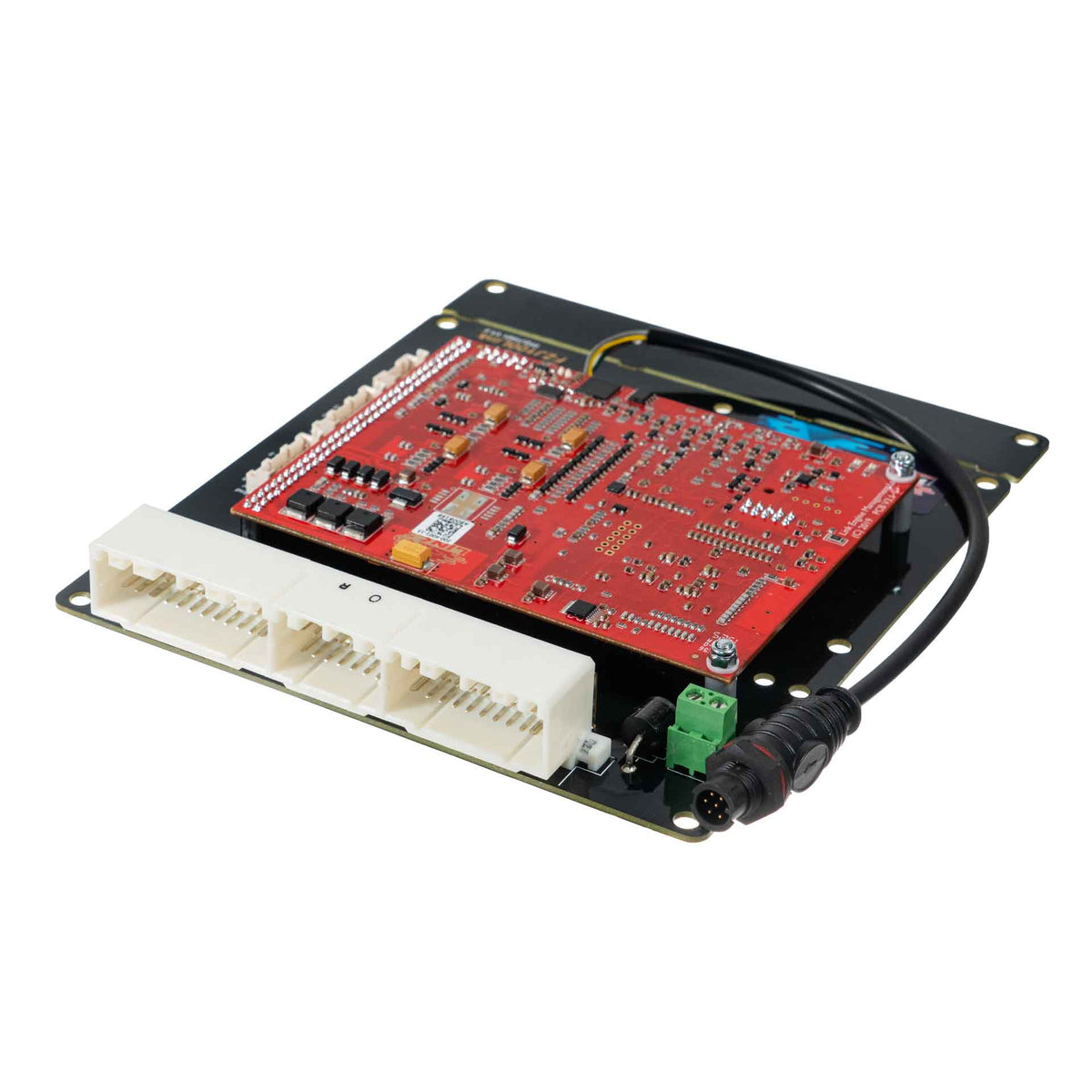

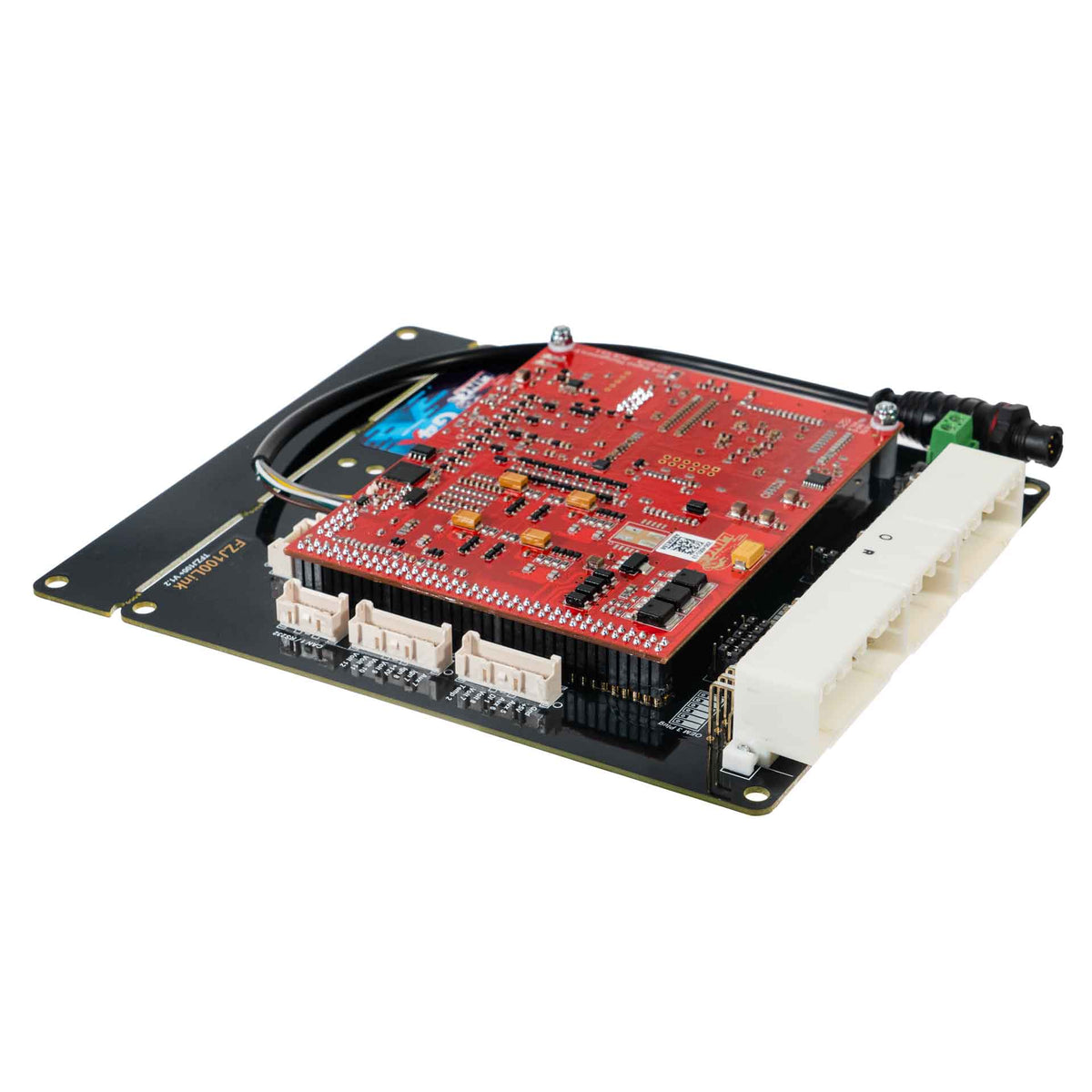

LINK G4X FZJ100Link - TFZJ100X - Toyota LandCruiser 100 Series 1FZ-FE plugin ECU - SKU 230-4000

Genuine plug-in convenience. Modern G4X architecture. Advanced tuning and motorsport features.
Purpose-built for the Toyota LandCruiser FZJ100 (100 Series), the TFZJ100X fits straight into the factory ECU location using the factory mounts, original wiring loom and connectors. No rewiring, no adapter looms. It retains factory functionality, keeps a stock appearance and comes with a startup map to get you running quickly.

Designed for the Toyota 1FZ-FE non-VVTi engine.

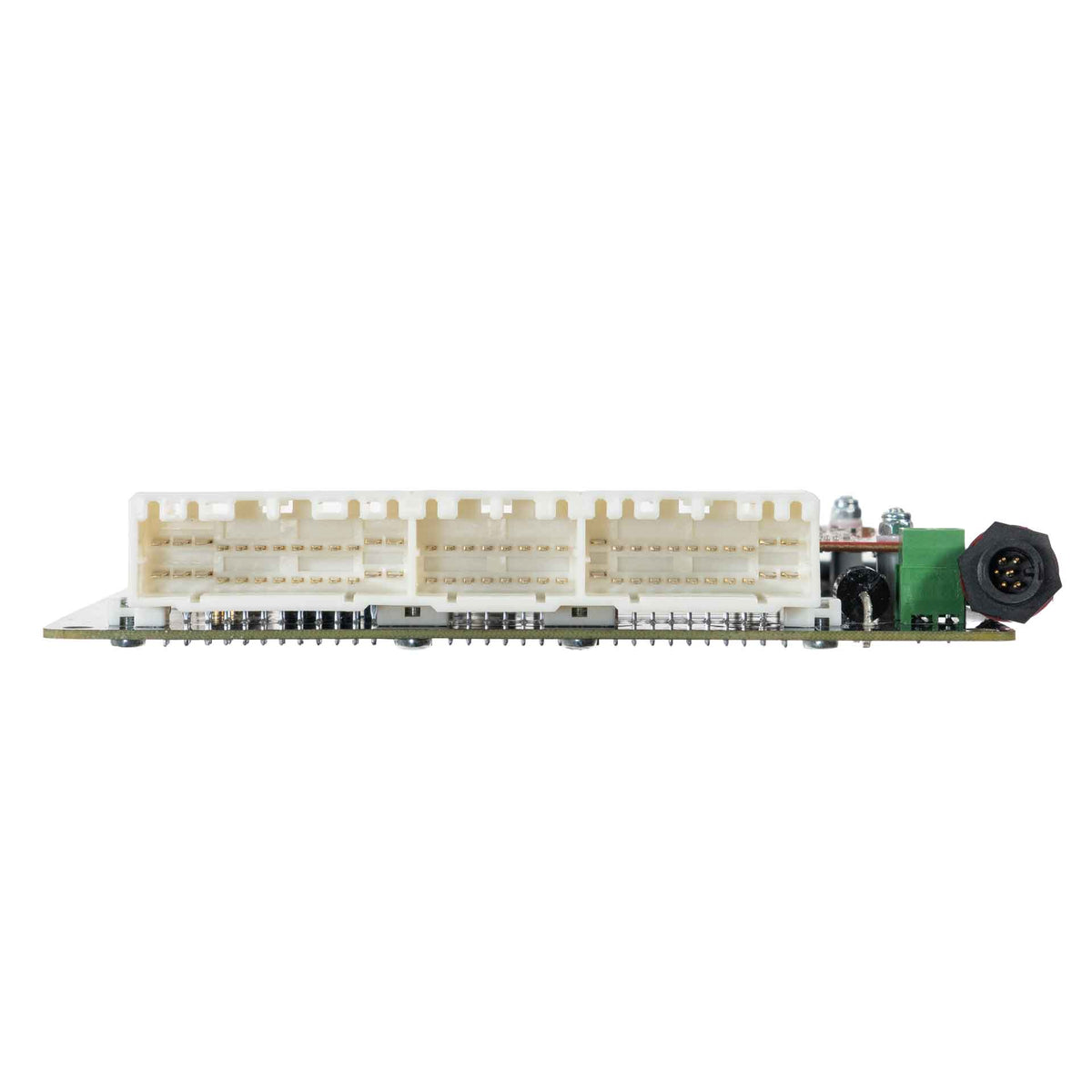

• Please check your connector matches the header in the listed photo before purchasing.
• Two OEM ECU variants exist: one with four wiring harness plugs, one with three. The TFZJ100X supports both. On four-plug models, leave the unmatched plug disconnected.
• This ECU works for manual transmissions only.
• Most factory features are supported.
• This ECU will need a modification before E-Throttle is usable.

Suitable applications:
Toyota LandCruiser FZJ100 with 1FZ-FE non-VVTi engine

A Link plug-in ECU is the ideal solution when one is available for your vehicle and the factory wiring is in good condition, giving you modern engine management without the complexity of a wire-in install.

G4X ECU Features:

• 8 custom math blocks
• Dual CAN bus
• Flex fuel
• Built-in trigger oscilloscope
• 3-axis accelerometer
• Selectable temp input pull-ups
• Flexible engine protection limiters
• CAN keypad control
• VVT control
• Open and closed loop boost control
• Dual closed loop lambda
• Compatible with all leading aftermarket dashes via CAN or serial stream
• 512 MB onboard data logging

Motorsport Features:

• Nitrous control
• Launch control
• Anti-lag
• Cruise control
• Traction control
• Race timer and power management
• Gear shift control
• Paddle shift control

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned? Get in touch for a quote.
