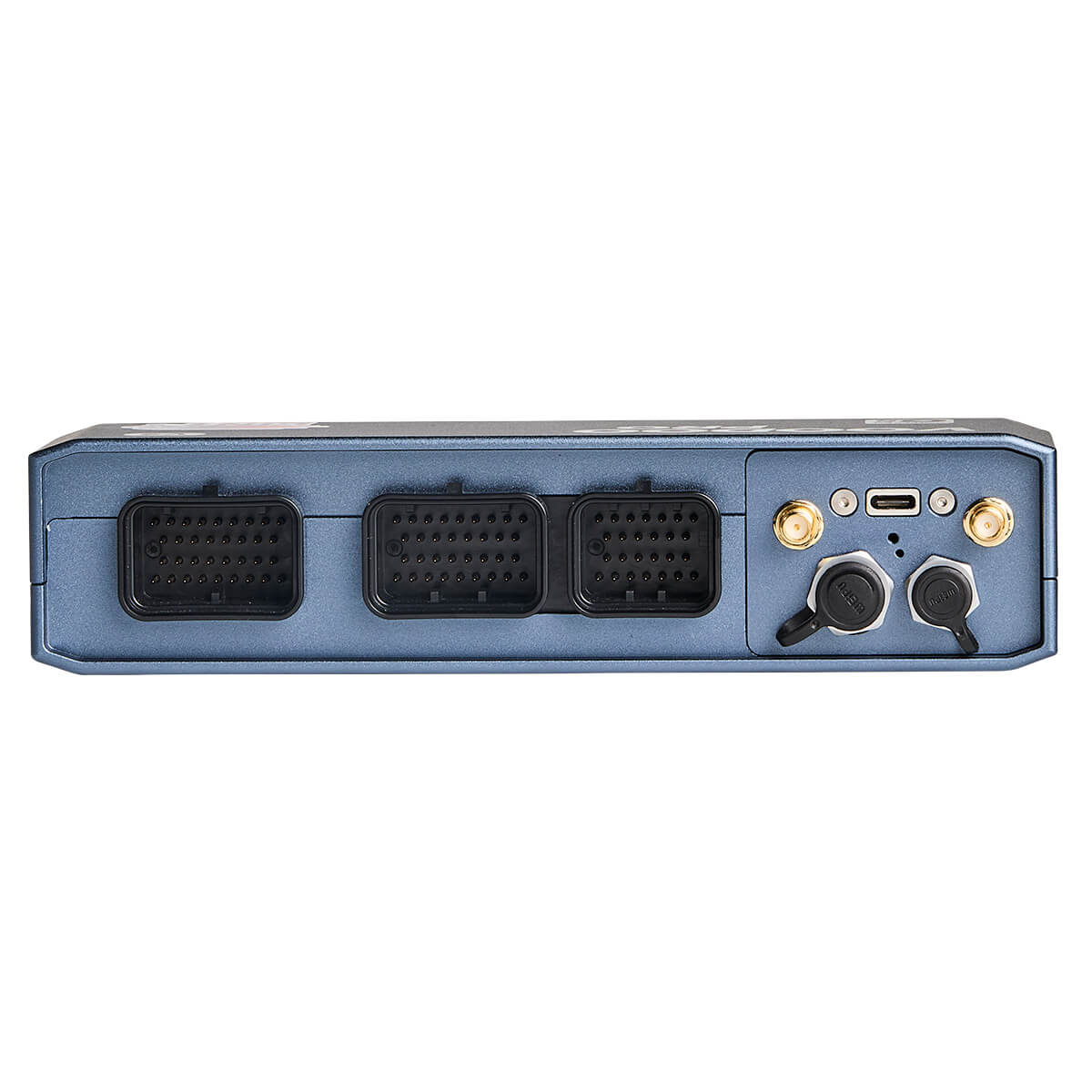

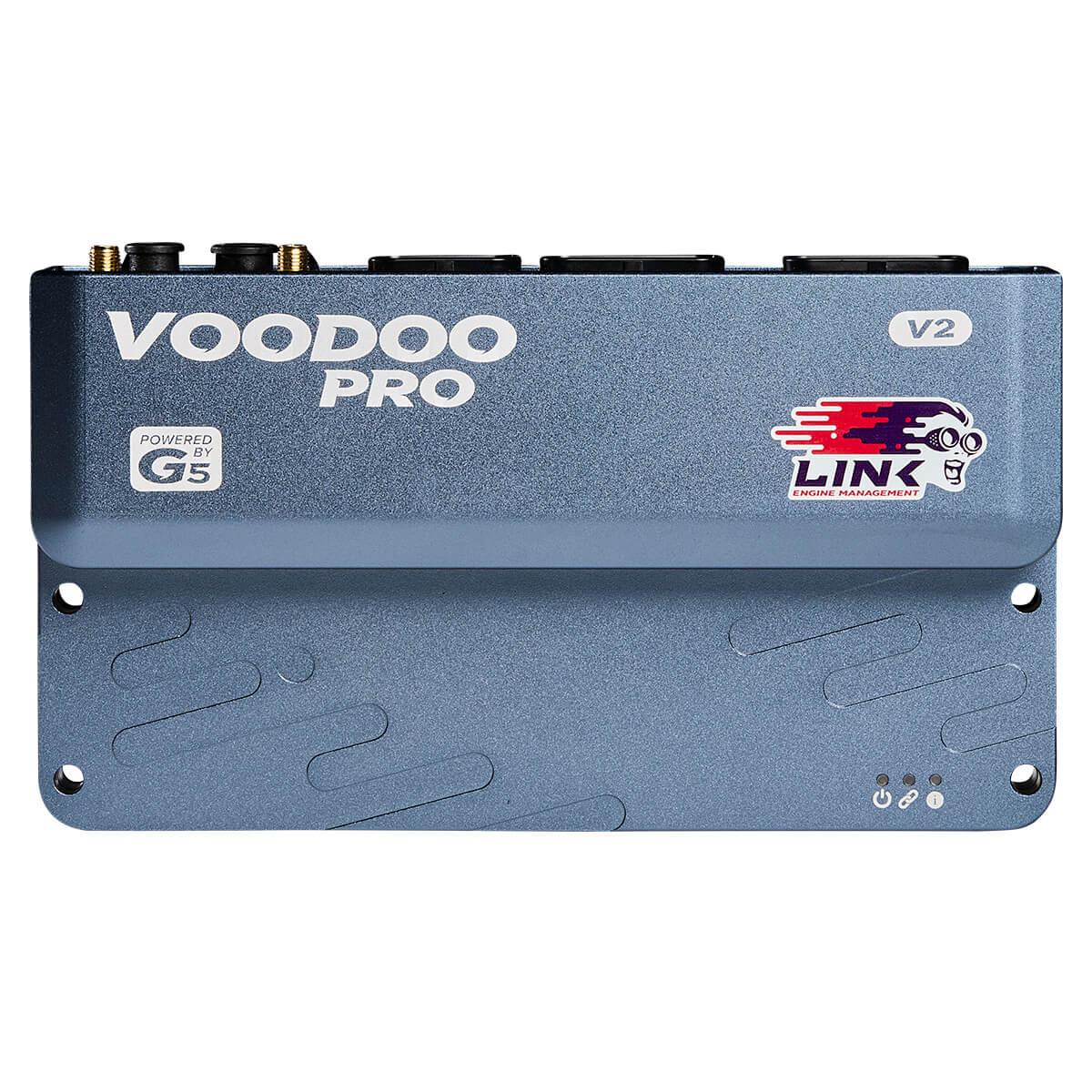

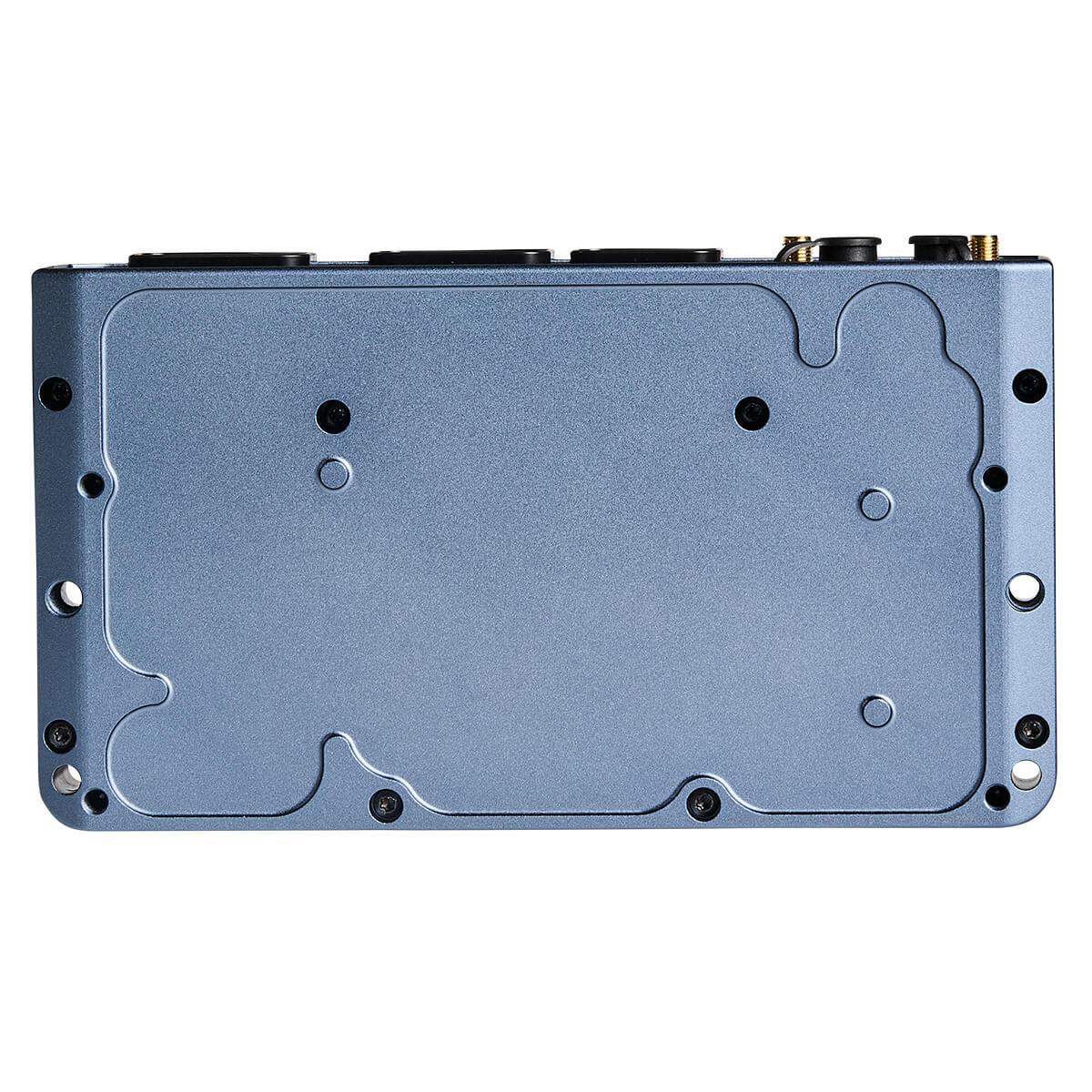

LINK G5 Voodoo Pro Wire-In ECU (Latest Version) - SKU 153-5000

Link's flagship ECU, now in its latest version.
The G5 Voodoo Pro is built on Link's most advanced, most powerful and most flexible ECU platform ever, delivering next-generation engine management for professional-level street and motorsport builds.

The G5 Voodoo range opens up a new world of possibilities with port plus direct injection control, highly customisable I/O, advanced communications and next-generation features. The Voodoo Pro adds more I/O and functionality beyond the Neo range, with dual onboard Lambda control, extra injector and ignition drives, and more ADIO pins and analogue inputs to support high cylinder counts.

Suitable applications:
Up to 12 cylinders sequential port or direct injection with direct spark, or 8 cylinders with direct/port staged injection and direct spark.

G5 Voodoo Pro Features:

• 12 injection, 8 ignition and 4 multipurpose (inj, ign, aux) drives (24 total)
• Direct injection on the injection drives via an external OEM or aftermarket driver box
• 6 auxiliary outputs, plus unused injection and ignition drives can be used as auxiliary outputs
• Dual onboard Digital Wideband Lambda control

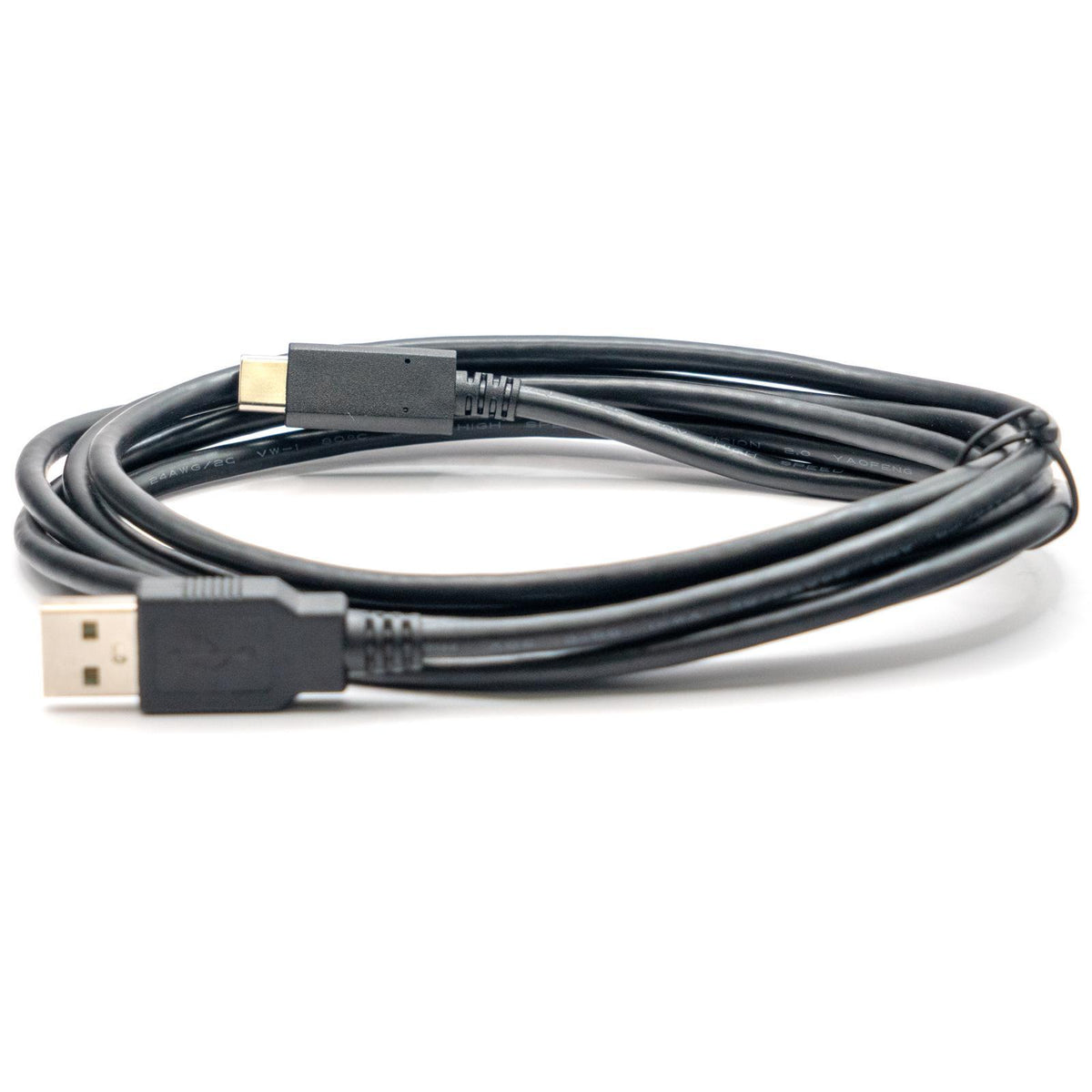

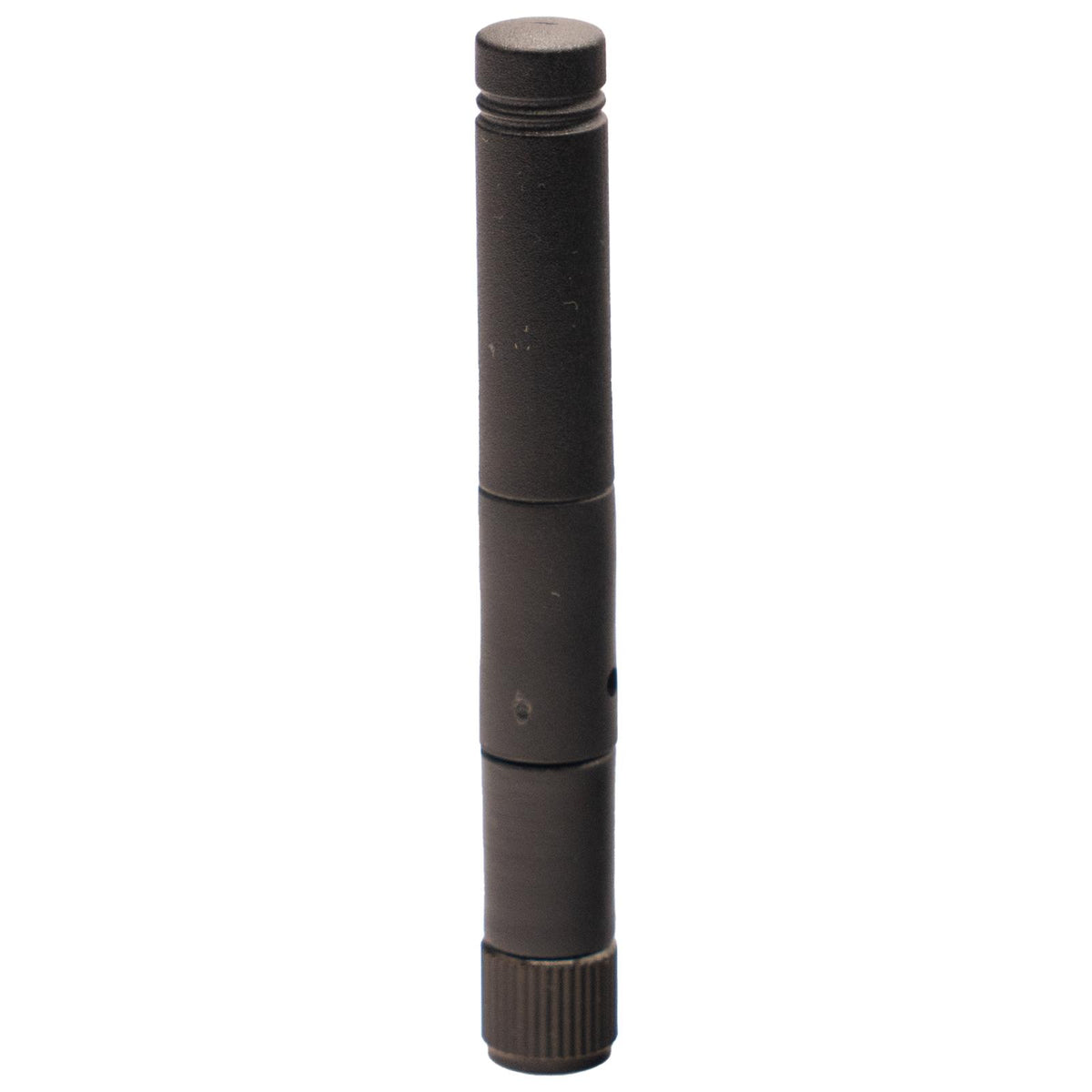

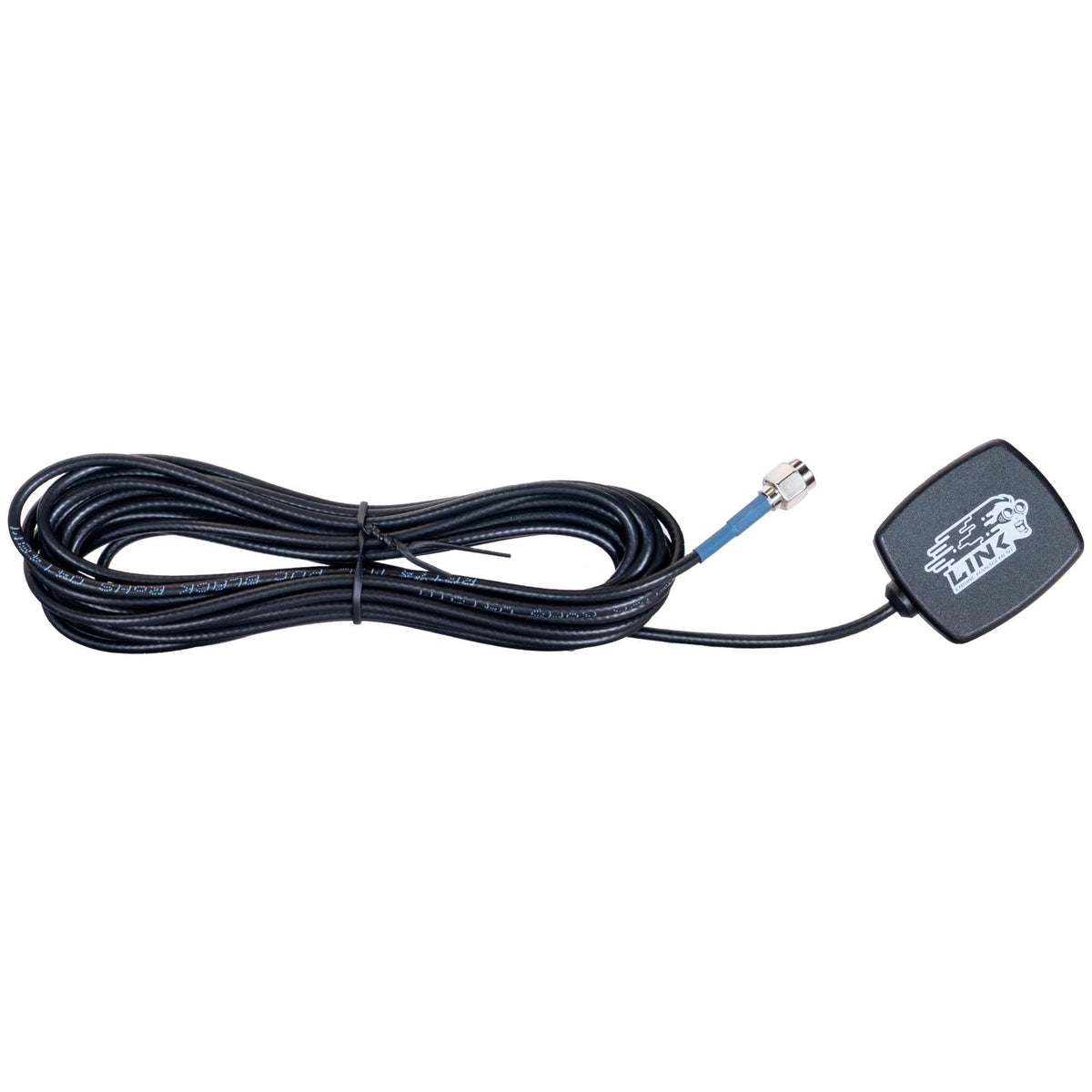

• GPS, Wi-Fi, Ethernet, dual CAN bus and USB-C tuning
• 1 GB onboard data logging
• Automatic transmission control
• Dual H-bridges for E-Throttle and low power E-Wastegate control
• Runs on the same PC Link software as G4X, so there's no new software to learn

Requires A, B and E connector kits (not supplied). Want it all in one box? Check out our G5 Voodoo Pro V2 Wire-In Bundle.

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need it installed and dyno tuned? Get in touch for a quote.
