LINK CAN Keypad 15 Button + 2 Rotary Encoders - SKU 101-0330

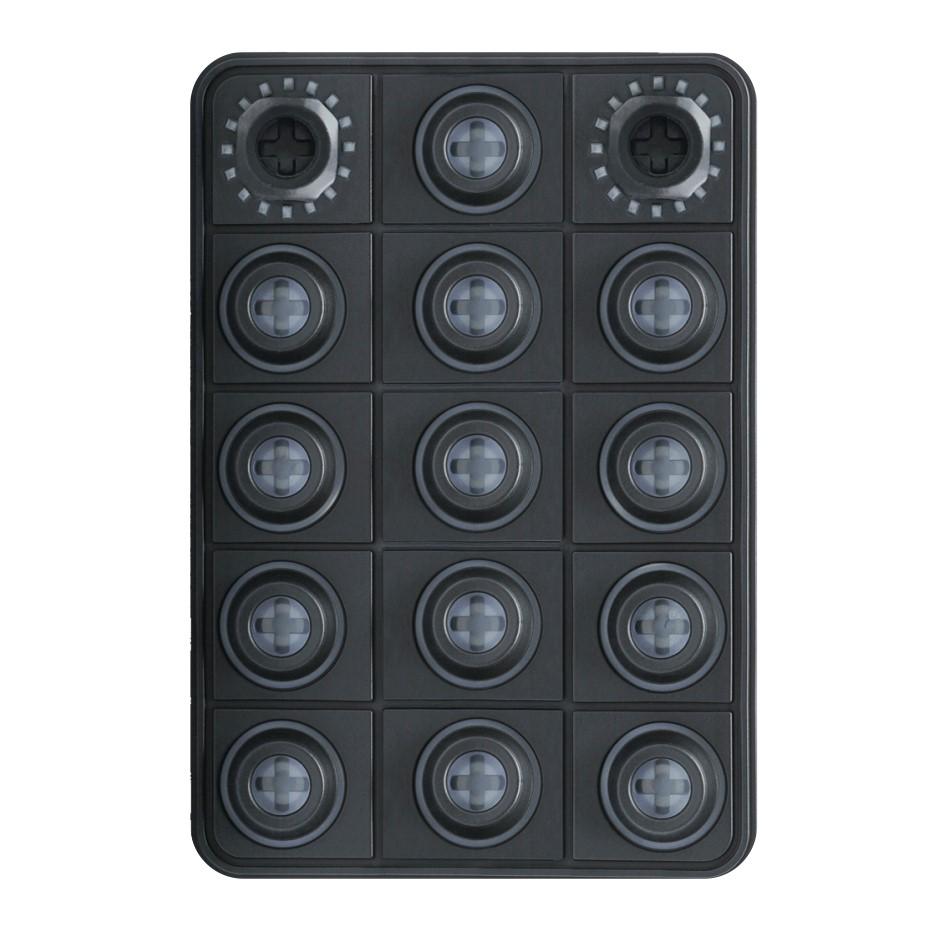

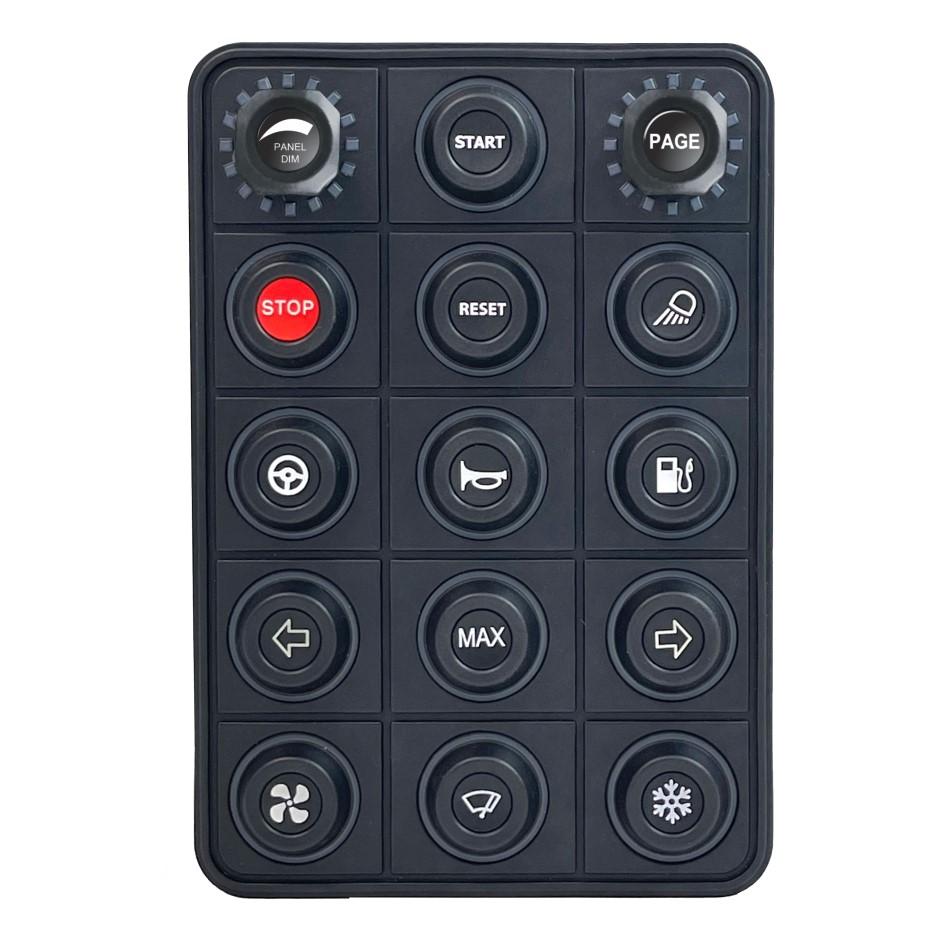

Link CAN Keypad with 13 buttons plus two push-activated rotary encoders, and interchangeable 15 mm inserts (sold separately).

The two rotary encoders have 16 Blue indicator LEDs each.

Four additional analog inputs allow additional sensors/switches to directly connect to the CAN Bus network through the keypad.

The compact layout and inclusion of the rotary encoders and analog inputs allow for significant dash space saving while massively expanding functionality.

Suitable applications:

• Compatible with all Link G4X and G5 ECUs

Important notes:

Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included loose in box.

Specifications

Switch Life:

• 3 million operations

Default Baud Rate:

• 1000kbit/s

Chemical Resistance:

• Deet, Engine Cleaner, Isopropyl Alcohol, Suntan Lotion, Multi-Purpose Cleaner, Orange Citrus Cleaner, Muriatic Acid

UV Protection:

• UVB 400 hours

Product Dimensions:

• 11x15x5cm

Product Weight:

• 360g

Electrical:

• Operating Voltage Range: 8-32V
• Maximum Input Voltage: 32V
• Maximum Continuous Current Draw: <50mA

What's in the Box:

• Blink CAN Keypad 13 button + DTM4
• Link sticker - Right facing - Clear Gloss - Rectangle 150x72
• Keypad Help Manual Card
• CAN Keypad Insert - Link
• Deutsch 4 way Connector Kit

Connector:

• TE Connectivity Deutsch DTM 4-pin and Molex 6-pin 101-0156
• Black = Ground
• Red = Power
• White = CAN High
• Blue = CAN Low
