LINK G5 ECU Plug-In - Toyota GT86/Subaru BRZ/Scion FR-S

$2,420.00
$2,744.00 $2,420.00
Sale
Tax included. Shipping calculated at checkout.

Ready to Ship

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
  • 100% GENUINE GUARANTEED
  • FAST SHIPPING
  • FULL WARRANTY
  • TECHNICAL SUPPORT
  • Control both Direct and Port Injection
  • Full OEM CAN Bus integration
  • Control both Manual and Automatic Transmissions
  • Billet CNC Aluminium Enclosure
  • Mounts in OEM Location
  • Includes a locking USB-C extension cable for easy tuning access
  • Comes with a built-in powered DTM4 CAN cable
  • Full factory E-throttle (DBW) control
  • Full VVT-i control
  • 512MB of Onboard Data Logging, up to 250 channels and 100k samples per second
  • Runs on Link’s renowned PC Link, giving you the confidence to get started right away
  • Backed by Link’s Limited Lifetime Warranty

All Link Plug-in ECUs come with the below features as standard:

  • Plug and Play - A Direct Replacement for the Factory ECU, no adapter looms needed.
  • All motorsport features enabled – Anti-lag, Boost Control, Cruise Control, Gear Shift Control, Nitrous Control, Launch Control, Paddle Shift Control, Race Timer and Power Management, Rolling Anti-lag and Traction Control
  • Two CAN bus channels
  • Advanced Modelled Fuel equation with flex fuel capability, or a more basic “Traditional” equation is available
  • Exceptional adaptive knock control or traditional threshold-based knock control.
  • Onboard 3 Axis Accelerometer
  • Onboard Trigger Oscilloscope
  • Live user configurable math channels running in ECU
  • Very flexible user configurable CAN bus inputs and outputs. Most 3rd party CAN bus devices supported
  • CAN Keypad control
  • Flexible engine protection limiters
  • PC Link software – Tuning, display and powerful log analysis all in one package.
Link G5 GT86 PLUG IN ECU
$2,420.00
$2,744.00 $2,420.00

PRODUCT INFO

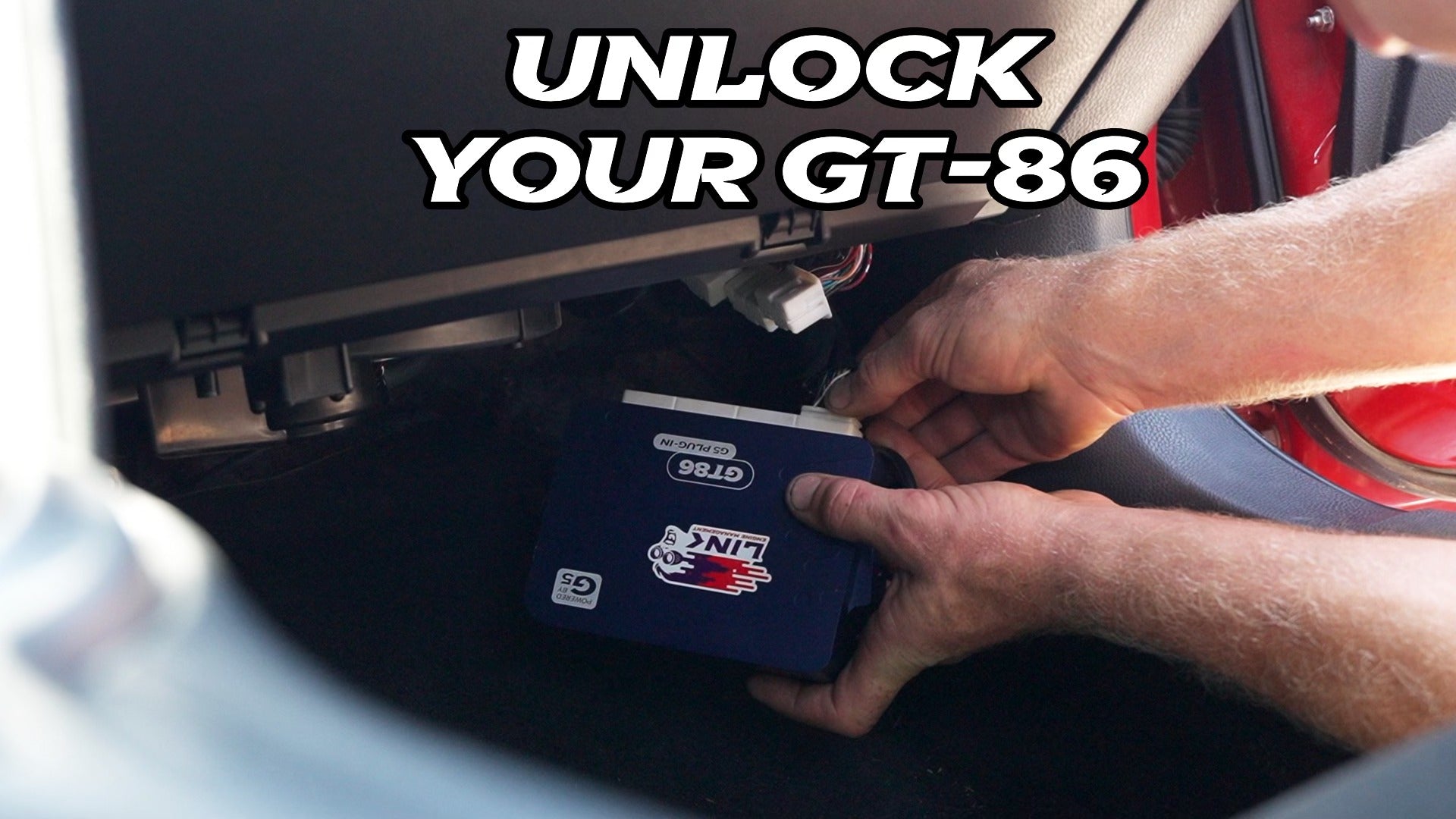

The GT86 G5 Plug-in is a standalone plug and play replacement for the factory ECU and plugs straight into the original wiring loom, no adapter harness needed and comes with a sample map for a tuning head start. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions. Models Supported: Toyota 86, ZN6, 2012 – 2021 Toyota GT86, ZN6, 2012-2021 Subaru BRZ, ZC6, 2012-2020 Scion FR-S 2013-2016 In the box: G5-GT86 Plugin ECU USB-C Connection Cable Locking USB-C extension cable for easy tuning access 2 x M6 screws for ECU mounting in OEM bracket DTM4 CAN Connection Cable (Pre-Installed in Enclosure) Link stickers Note: 2017+ Models have some differences to earlier cars and will not run with the sample maps supplied in PCLink and the standard plug-in ecu hardware. 2017+ Engines have a Hall Effect Crank Sensor instead of Reluctor and so require the Trigger 1 Type changed from 'Reluctor' to 'Optical/Hall' and the Trigger 1 Pull-up set to ON. 2017+ Engines have a different DI Fuel Pressure sensor than earlier models, this sensor has 4 pins instead of 3 and requires an 8.2kohm pullup resistor to be wired between C7 (An Volt 4) and 5v, the DI Fuel Pressure Source changed from An Volt 3 to An Volt 4 and the pressure calibration changed to 0kPa at 4.06V and 30000kPa at 0.46V.
