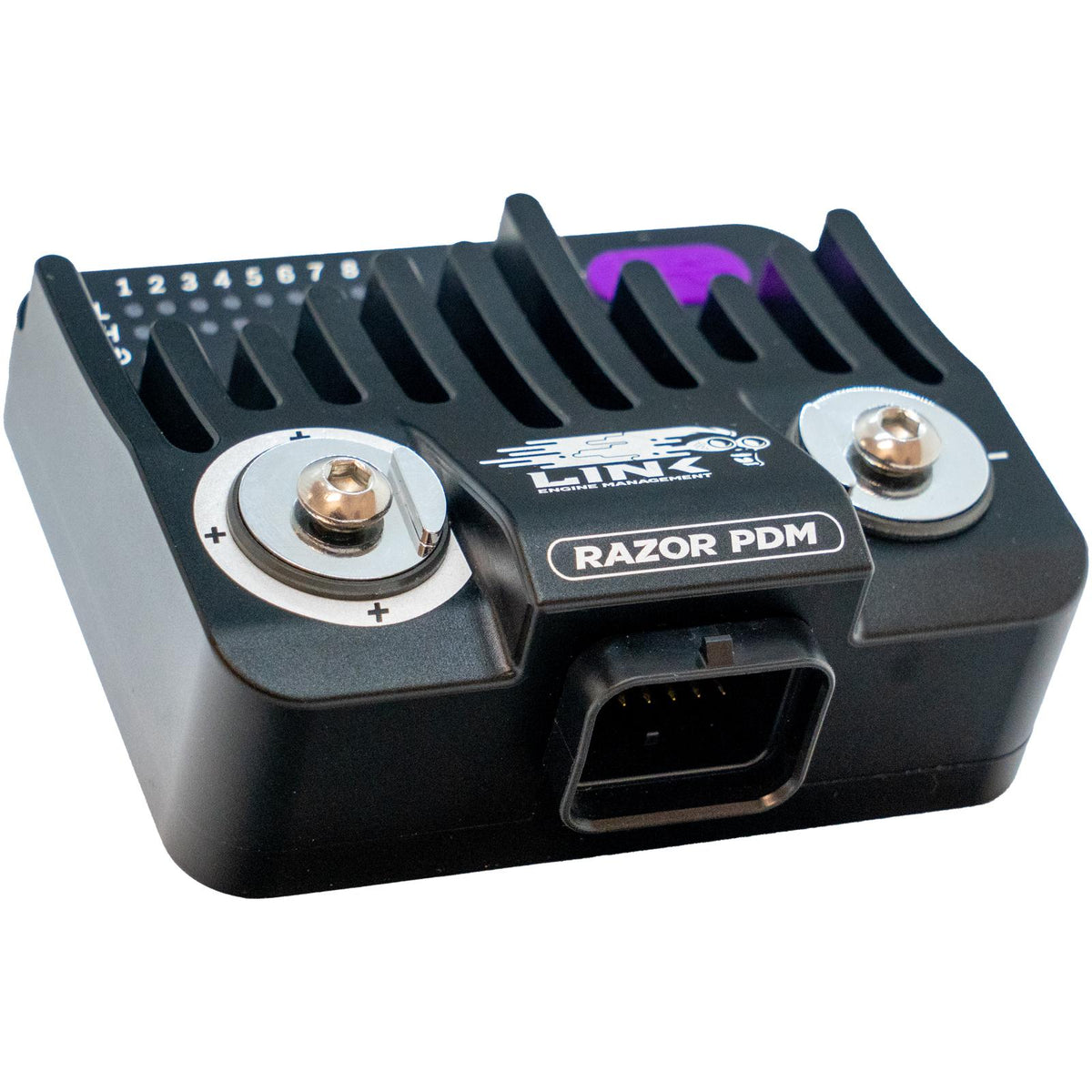

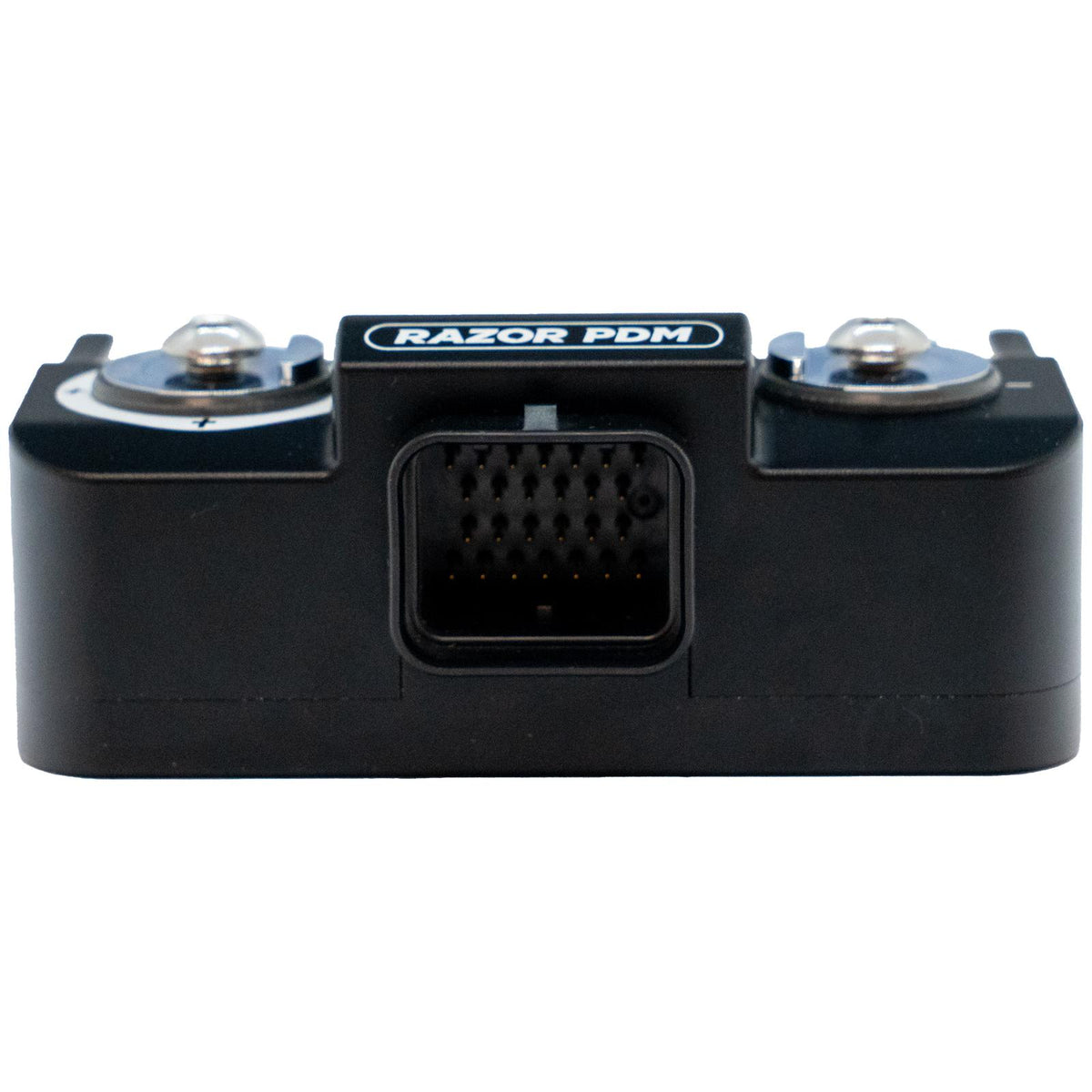

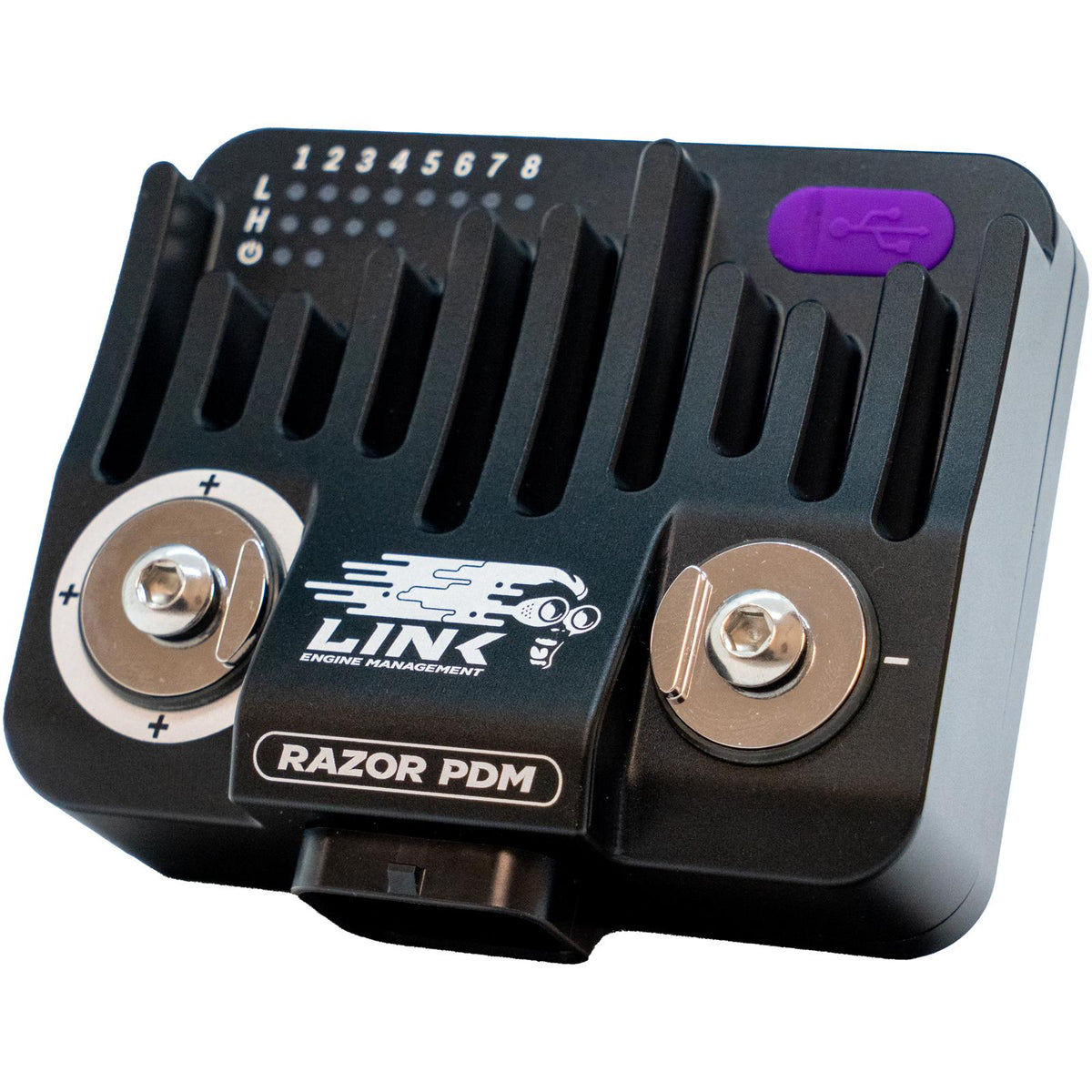

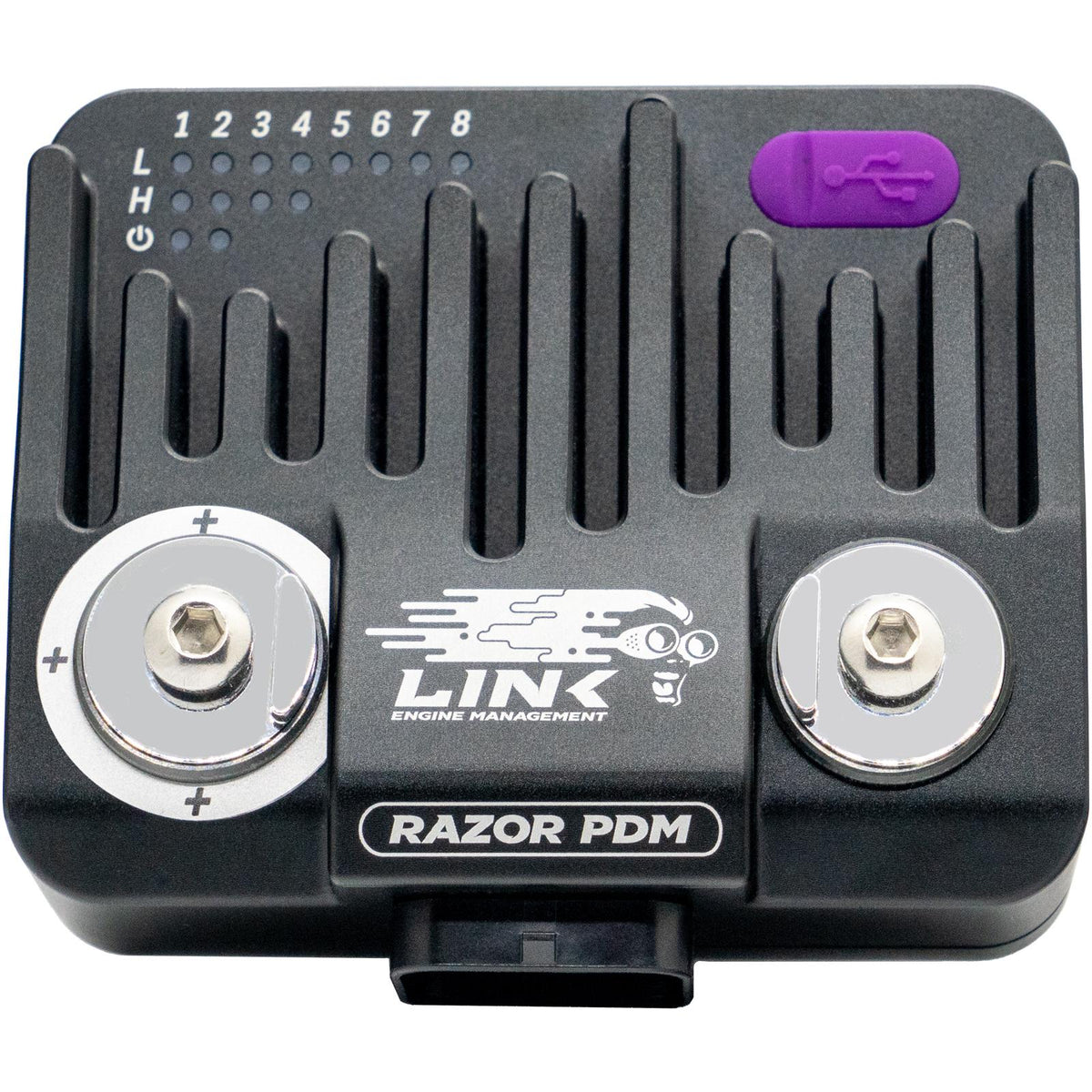

LINK RAZOR PDM - SKU 135-1000

Don't blow your fuse; modernise with a Razor PDM and never look back.

Leave behind the hassle and frustrations of outdated fuses and relays by upgrading to Link's Razor PDM. Instead of manual resets and replacements, enjoy smarter, tidier, and more reliable electrical management.

The Razor PDM (Power Distribution Module) is a programable computer that intelligently manages power delivery to components like lights, fans, or fuel pumps by processing inputs from ECUs, CAN keypads, switches, or sensors.

The Razor PDM continuously monitors current draw and circuit status making automated real time adjustments, and fixing issues in real time to eliminate damage and breakdowns.

Designed with flexibility in mind, multiple Razor PDMs can be connected via CAN to provide the exact number of inputs and outputs required. Their compact size allows them to be positioned close to the devices they control, reducing wiring length, voltage drop, cost and installation complexity.

Razor PDMs are ideal for builds wanting to replace traditional fuses and relays with intelligent power management, reduced wiring complexity and greater electrical reliability.

Suitable applications:

• The Razor PDM can control up to 4 high power outputs and 8 universal ADIO pins.

Warnings:

• PDMs will get hot under large loads.

Specifications

Click here for the PDM Knowledge Base which includes the specifications sheet and user manual.

The Razor PDM (Power Distribution Module) is a programmable computer with the following specs:

Inputs and Outputs:

• High Power Outputs: Four 25A continuous (80A safe peak), configurable as high side, low side, PWM or paired for H-bridge control.
• Universal ADIO: Eight Analogue/Digital/Input/Output (ADIO) pins, configurable as analogue or digital/switched inputs, or high-side outputs up to 8A each. Four ADIO pins support PWM output, while the remaining four support PWM, Frequency, Duty cycle, Speed inputs.
• Software-Controlled Pull-Ups: 4K7 to 5V.
• Current Capacity: Up to 100A continuous combined output with 160A non-repetitive peak current.
• Expansion: Multiple PDMs can be easily connected via CAN to give you more I/O. The compact nature of the Razor PDM allows you to place each PDM closest to the power draw.

Communications:

• 1 CAN bus Channel
• 1 USB Type-C for configuration via PDM Link software

Product Dimensions:

• 103.6mm(L) x 93.4mm(W) x 43.2mm(H)
• 4.08in(L) x 3.68in(W) x 1.70in(H)

Product Weight:

• 475 grams (16.76 ounces)

Material:

• Fully sealed CNC aluminium enclosure

Electrical:

• Operating Voltage Range: 6-24V
• Maximum Input Voltage: 27V
• Maximum Continuous Current Draw: 140A

Misc.:

• Water resistant -40 to +80 degC operating temperature

What's in the Box:

• Link Razor PDM
• Quick Start guide
• Mounting plate and screws
• Superseal C Plug and Pin Kit
• USB-C connection cable
• Positive terminal insulation boot
• 2 x high-current ring terminals and bolts
