LINK G4X FuryX - SKU 122-4000

Link G4X FuryX Wire-In ECU (up to 6 Cylinders)

A premium G4X ECU for up to 6 cylinders, the FuryX combines extensive I/O, Onboard Wideband Lambda, E-Throttle control and the full suite of G4X motorsport features for demanding performance and race applications.

The FuryX includes all the core G4X features expected from Link's championship-winning platform including Flex Fuel, Flexible Engine Protection Limiters, CAN Keypad Control, Open and Closed Loop Boost Control, Dual Closed Loop Lambda, VVT Control, a Trigger Oscilloscope, compatibility with aftermarket displays and 512MB of onboard data logging.

Stepping up from Link's entry-level and mid-range G4X ECUs unlocks premium G4X features designed for more complex street, race and motorsport applications. The FuryX adds onboard Digital Wideband Lambda Control, fully programmable E-Throttle Control, Direct Automatic Transmission Control, dual CAN modules, a 3 Axis Accelerometer and expanded I/O, while also providing access to the full suite of G4X motorsport features including Launch Control, Anti-Lag, Nitrous Control, Paddle Shift Control, Gear Shift Control, Traction Control and Cruise Control.

The FuryX is the ideal solution for high-performance street, and motorsport builds that demand flexibility, onboard Wideband Lambda, E-throttle control, extensive I/O and the advanced features of a premium G4X ECU.

Suitable applications:

• The FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark.

Specifications

As a premium G4X ECU, the FuryX is the ideal solution for builds requiring more I/O and advanced specs than Link's entry and mid-range G4X ECUs, including:

Outputs:

• 8 Injection Drives
• 6 Ignition Drives
• 10 Auxiliary Outputs
• +5V Sensor power supply
• +8V Sensor power supply
• Unused Inj/Ign can be used as a Auxiliary Outputs

Inputs:

• 10* Digital Inputs
• 4 Temperature Inputs
• 9 Analogue Inputs
• 2 Trigger Inputs
• 2 Knock Inputs
• Unused Temperature and Analogue Inputs can be used as Digital Inputs
• *2 Digital Inputs required when using 2nd CAN Bus

Communications:

• 2 CAN Bus Channel
• LTW 6Pin USB Tuning Connection

Data Logging:

• 512MB Onboard Logging Memory
• 100kHz Maximum Total Logging Rate
• 250 Logging Channels

Product Dimensions:

• 185mm(L) x 130mm(W) x 40mm(H)
• 7.28in(L) x 5.12in(W) x 1.57in(H)

Product Weight:

• 680 grams (23.99 ounces)

Material:

• Die-cast aluminum enclosure

Electrical:

• Operating Voltage Range: 6.5-24V
• Maximum Input Voltage: 36V
• Maximum Continuous Current Draw: 8A
• Operating Current: 200mA

Misc.:

• Manufacturing Standard ISO 13485
• Ambient temperature range: -30 to 90°C

What's in the Box:

• FuryX G4X ECU
• Quick Start Guide
• Mounting Bracket
• USB Tuning Cable
• LinkECU Stickers

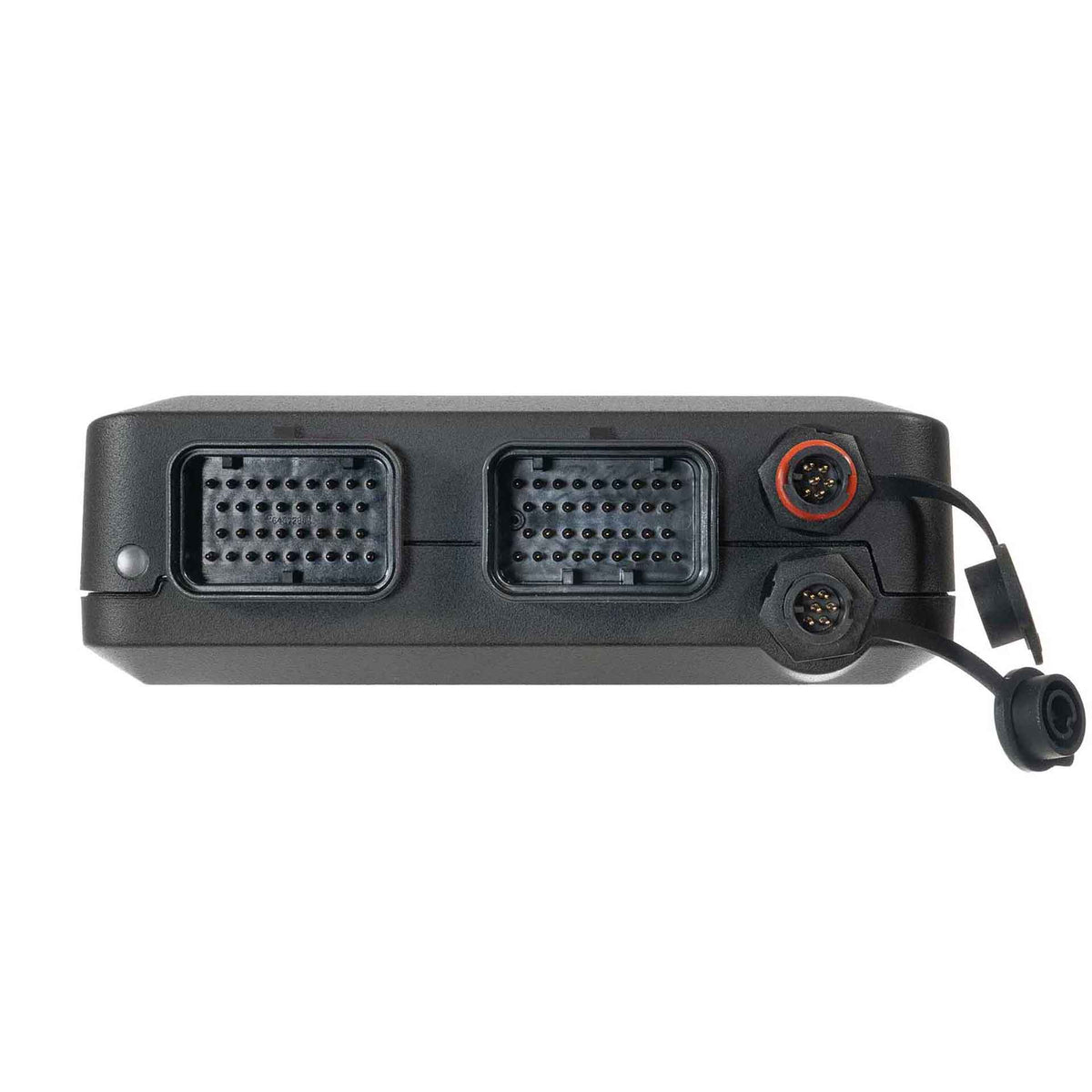

Connector:

• Superseal 4 Row 34 Position x2
• Part number 4-1437290-0
• Part number 4-1437290-1

Download FuryX Quickstart Guide
