LINK CANJST - CAN Connection Cable for Plugin ECU's (5pin)

Link CANJST - CAN Connection Cable for Plugin ECU's (5pin)

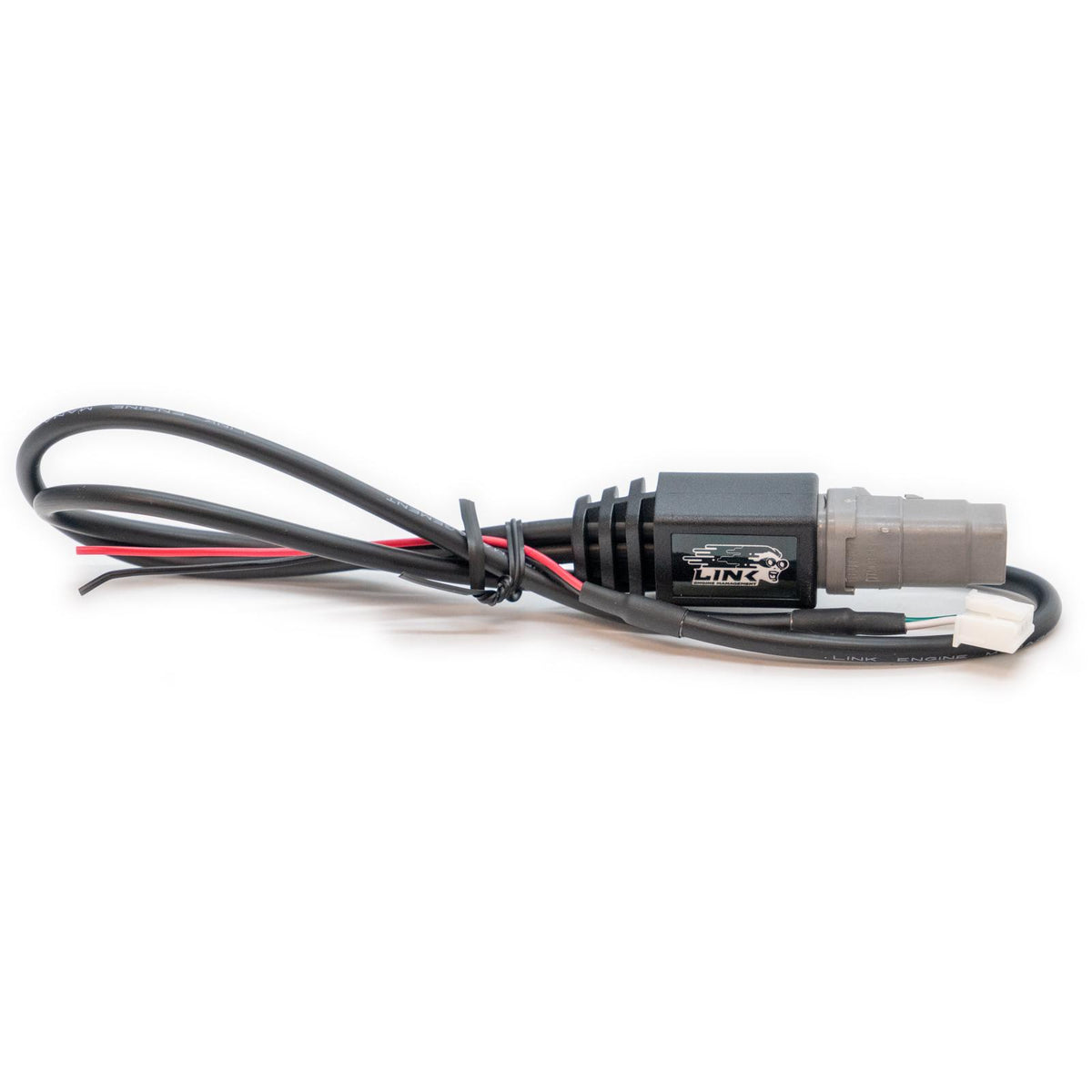

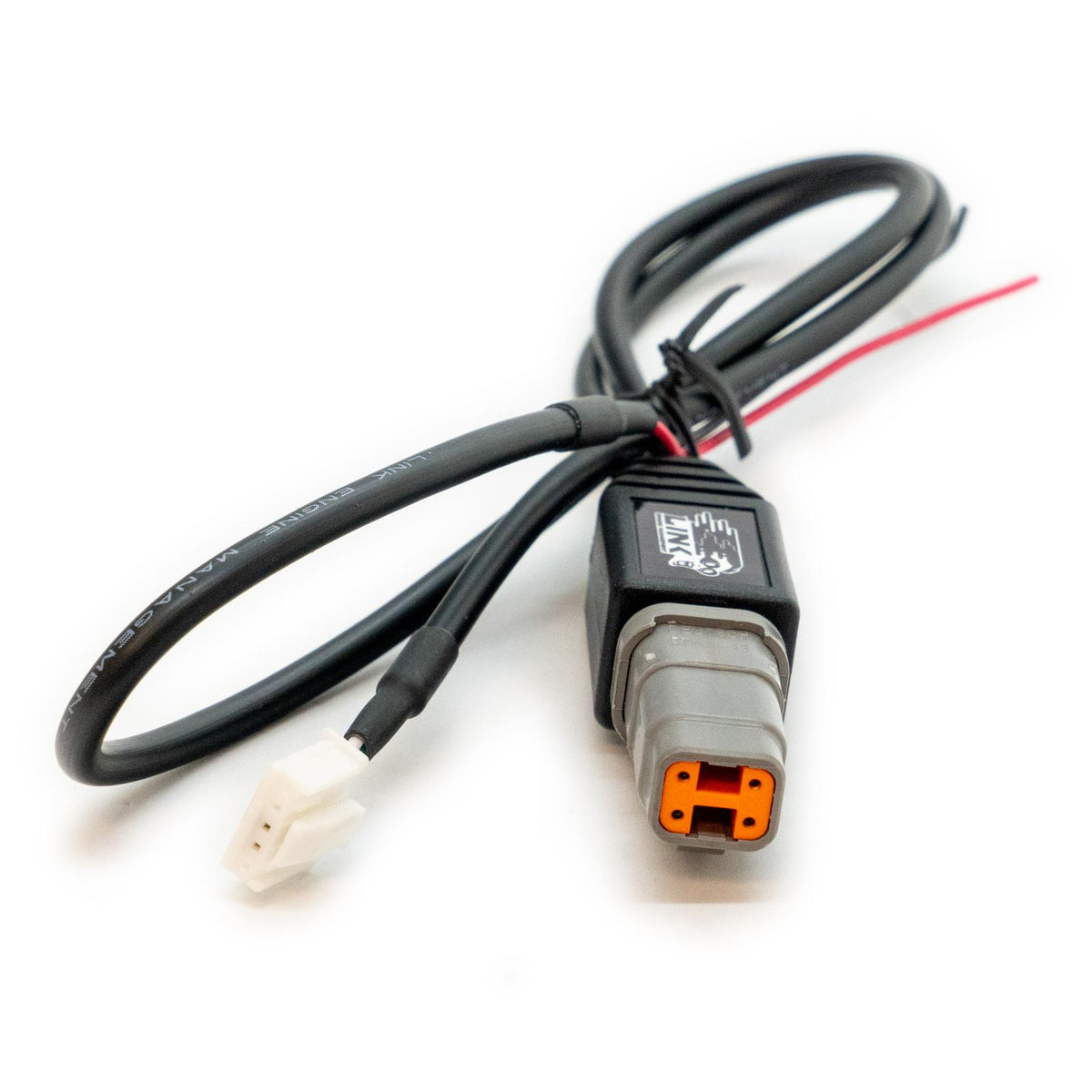

The Link CANJST is required to add CAN communications to G4+/G4X Plug-in ECU's which have a 5 Pin JST CAN connector. Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable (PN 101-0214) and CAN Splitter Cable (PN 101-0212).

Suitable applications:

• Check your ECU to see if it has a 5 Pin CAN connector.

Warnings:

Not compatible with the below Plug-in ECUs (these require a CANJST4 Cable PN 101-0198):

• 214-4100 - Plug-in ECU G4X Nissan GTR with E-Throttle
• 217-4100 - Plug-in ECU G4X Nissan S15 with E-Throttle
• 233-4000 - Plug-in ECU G4X Honda S2000 AP1
• 228-4000 - Plug-in ECU G4X Subaru WRX V5-6
• 237-4000 - Plug-in ECU G4X Honda HC20X Type-R DC5/RSX
• 238-4000 - Plug-in ECU G4X Subaru WRX11
• 239-4000 - Plug-in ECU G4X MX5NB2X
• 240-4000 - Plug-in ECU G4X MX5NB1X
• 243-4000 - Plug-in ECU G4X WRX11 USDM

Specifications

Product Dimensions:

• 570mm(L)x20mm(W)x15mm(H)
• 22.44in(L)x0.79in(W)x0.59in(H)

Product Weight:

• 45 grams (1.59 ounces)

Electrical:

• Maximum Input Voltage: 300V
• Maximum Continuous Current Draw: 3A
• Gauges of wire: 20AWG/0.5mm2

Misc.:

• Pin 4: CAN H
• Pin 3: CAN L
• Pin 2: Ground
• Pin 1: 12V

What's in the Box:

• CANJST - 5 Pin JST to DTM4 Cable

Raw Calibration Specs:

• Pin 1: 12V
• Pin 2: Ground
• Pin 3: CAN Low
• Pin 4: CAN High

Motorsport Tuning Solutions is an authorised Link ECU dealer on the Gold Coast. Need a hand with fitment, wiring or setup? Get in touch.
